8 - 2 MUP Menu Ultrasound Device
Selection of the MODULARIS cross on the SONOLINE Adara 8
Ultrasound localization 8
• In ultrasound localization a holder in which an ultrasound probe can be fastened is fitted
to the shock wave head.
Only the following probes can be used:
• Press the “F4” key.
• Press the "5" key.
• Select the MUP with the trackball.
• Press the key.
• Enter the password.
• Select "Litho mode without X-ray" with the trackball.
• Press the key.
• Select "Litho mode without X-ray" with the trackball.
• Press the key.
• Press the key two times.
• Deselect the screen saver on the SONOLINE Adara (refer to the SONOLINE Adara
operating instructions).

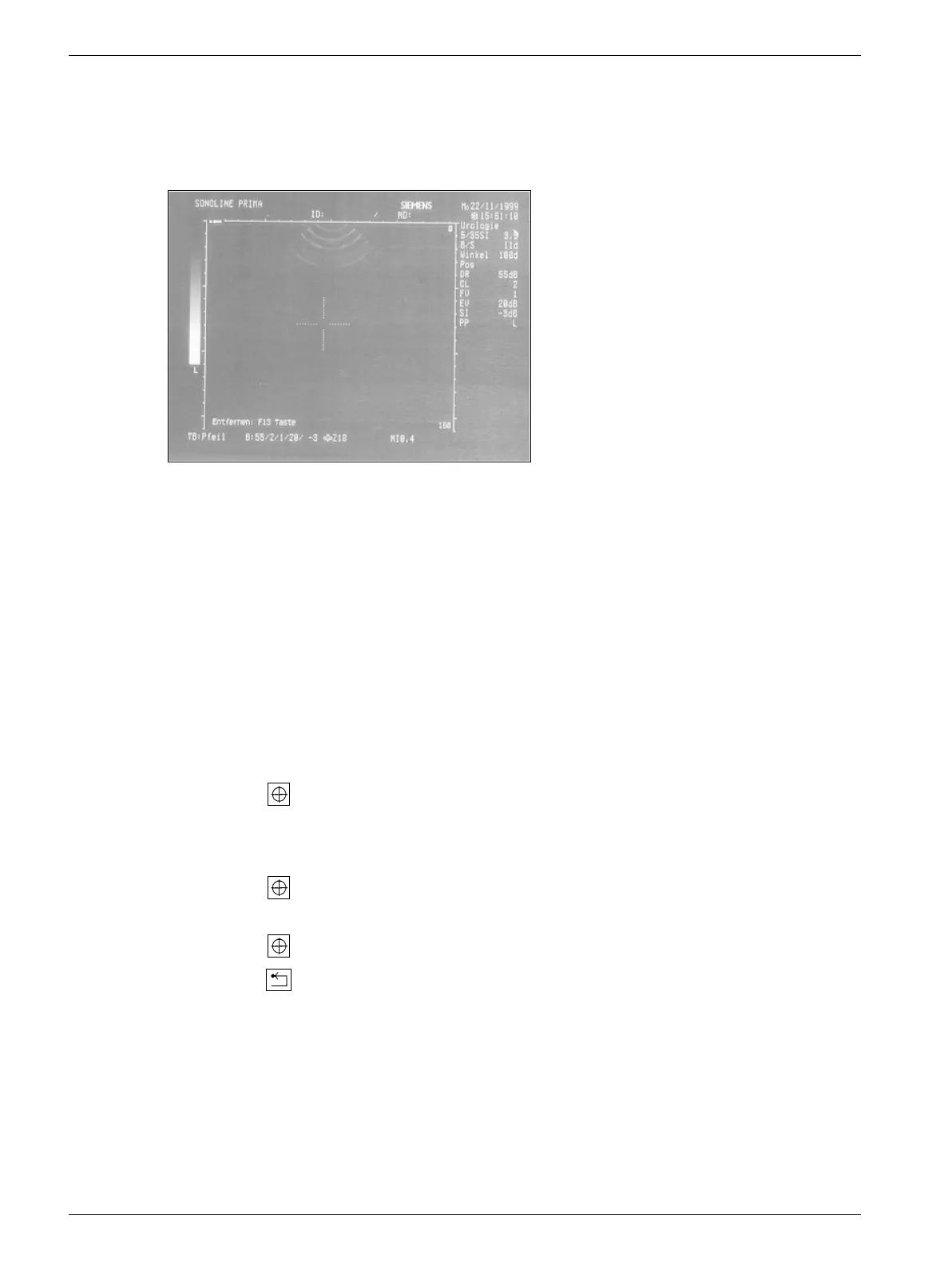

• A cross (Fig. 2) is displayed when a probe is selected.
Fig. 2
3.5C40S convex array 3.5 MHz
3.5/5.0 SI sector probe
