MODULARIS Uro Plus SPL1-130.840.02 Page 6 of 8 Siemens AG
Rev. 03 04.05 CS PS 24 Medical Solutions
5 - 6 Iso-center with X-Ray
Adjusting the 0° position 5
• Couple the LITHOSTAR MODULARIS to the SIREMOBIL Iso-C as described in the
operating instructions. Do not couple the motor yet.
• Manually perform the orbital movement (angulation range approx. ± 30°).
• Set the SIREMOBIL Iso-C to orbital and angulation direction 0°.
• Couple the motor.
• Flip up the iso-center phantom.
• Turn fluoro ON briefly. The ball must now be in the center of the cross. (refer to Fig. 8).
If not:
- Slightly loosen the three screws on the RBV (1/Fig. 9).
- Adjust the component with the crossing hair so that the ball is located in the cross hairs
(refer to Fig. 8).
- After adjusting the setting, retighten all screws.
• If adjustment is not possible, adjust as for the support arm - serien no. < 0050.

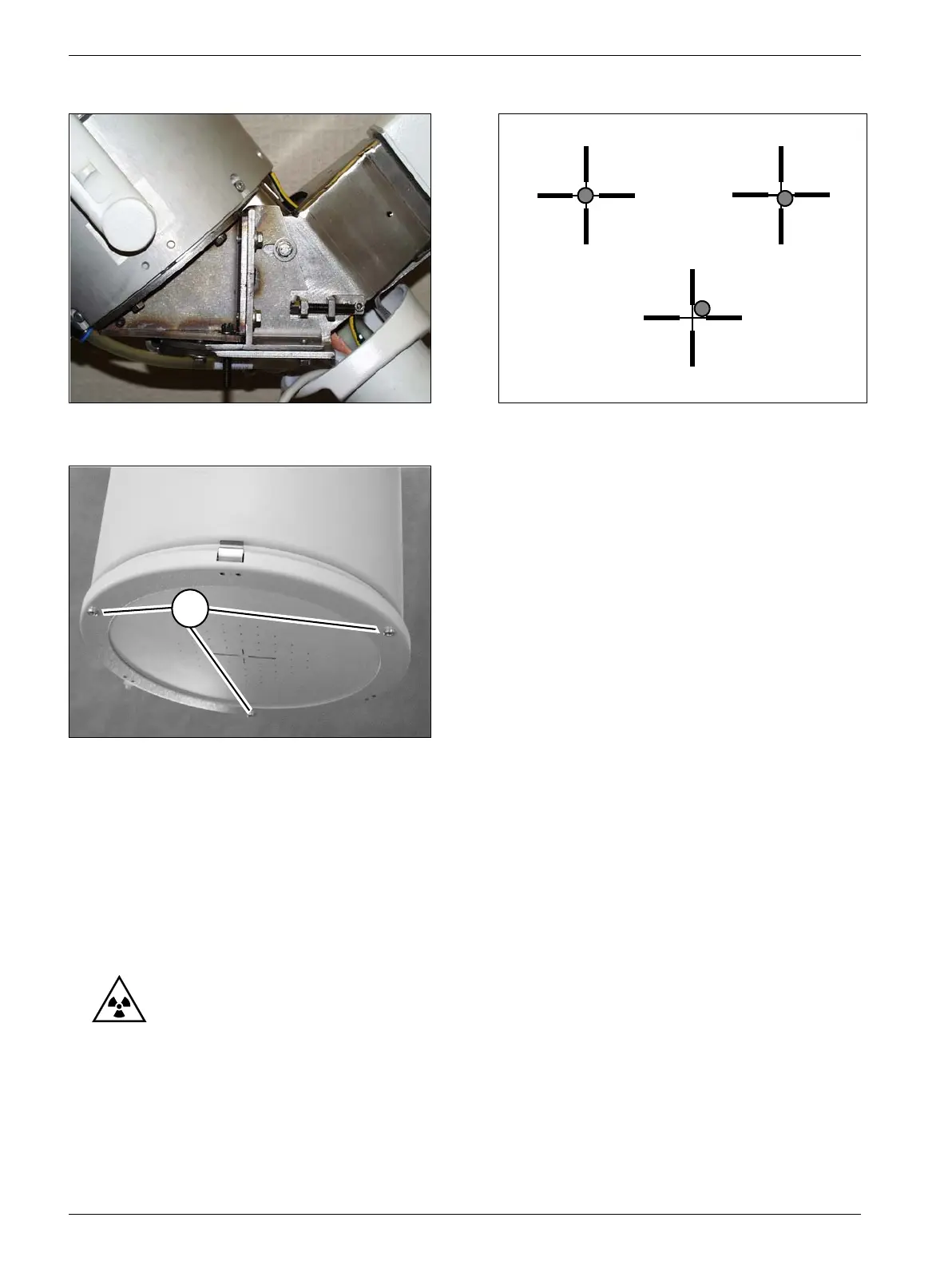

Fig. 7 Fig. 8
Fig. 9
ok
acceptable
requires
correction
1
