4 - 30 LITHOSTAR MODULARIS
Support arm replacement 4
• Remove the system covers and the covers of the shock wave head.
• Empty the coupling circuit (refer to "Emptying the coupling circuit" section).
• Empty the cooling circuit (refer to "Emptying the cooling circuit" section).
• Switch the unit off and disconnect it from the power supply.
• Dismantle the shock wave head (refer to page 4-3).
• Remove the residual water from the hoses.
• If the ECG triggering option is available, remove Sirecust from docking station and
unscrew this.
• Open the charging unit and disconnect the high-voltage connection (refer to page 4-14).
• Disconnect all cables and hoses in the unit coming out from the corrugated hose.
• Unscrew the corrugated hose (2/Fig. 23).
Remove cables and hoses from the rotary joint.
• Loosen 4 screws of the support arm mounting (1/Fig. 37).
• Remove the old support arm and position the new one.
• Tighten the 4 mounting screws (1/Fig. 37) with 20 Nm torque.
• Push cables and hoses through the opening of the rotary joint and run them downwards.
Refer to Fig. 23 for the cable run. Fasten the corrugated hose to the rotary joint
(2/Fig. 23).

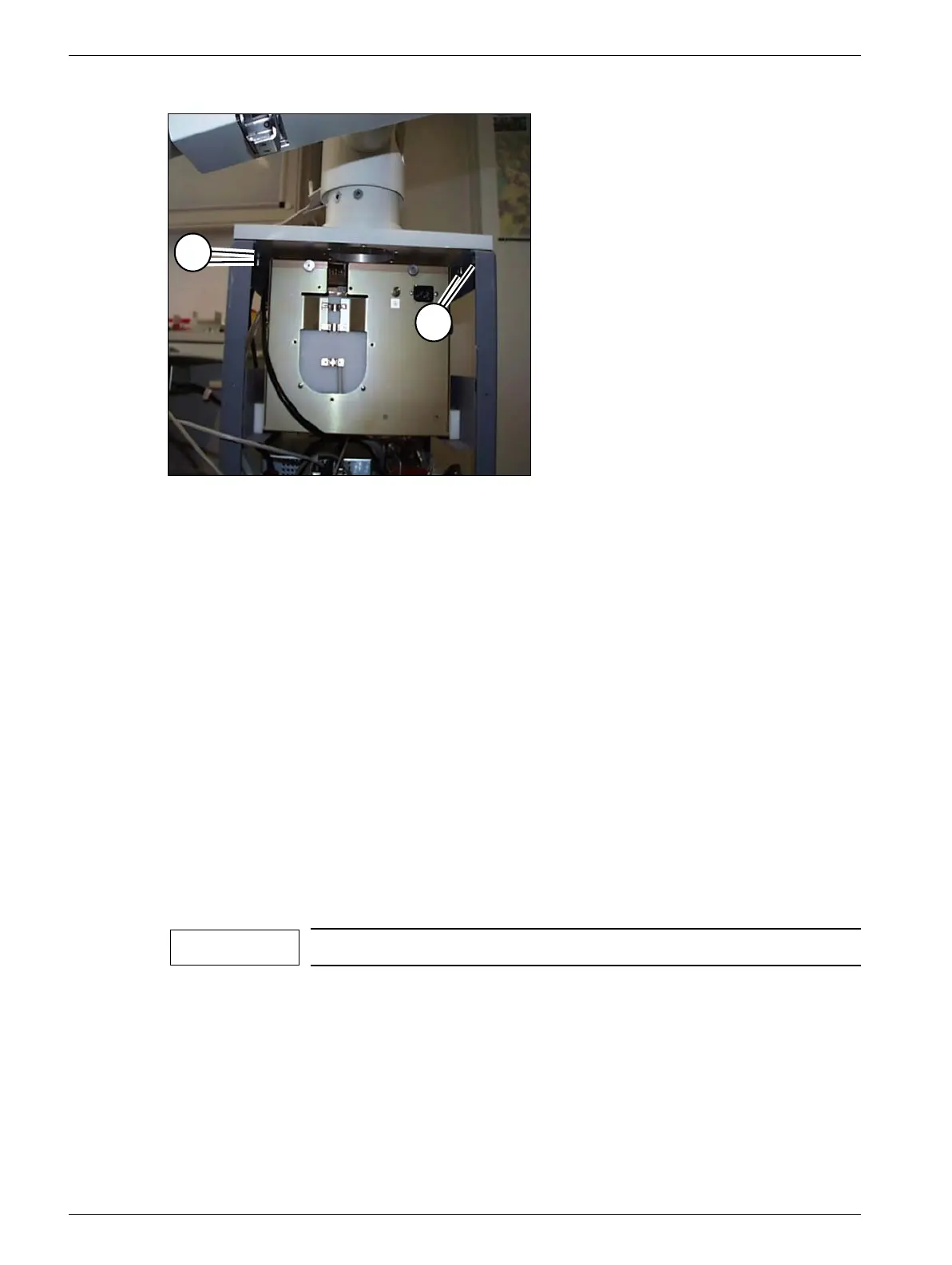

Fig. 37
2 persons are required temporarily to replace the support arm.
1
1
NOTE
