Iso-center with ultrasound 6
Preparations 6

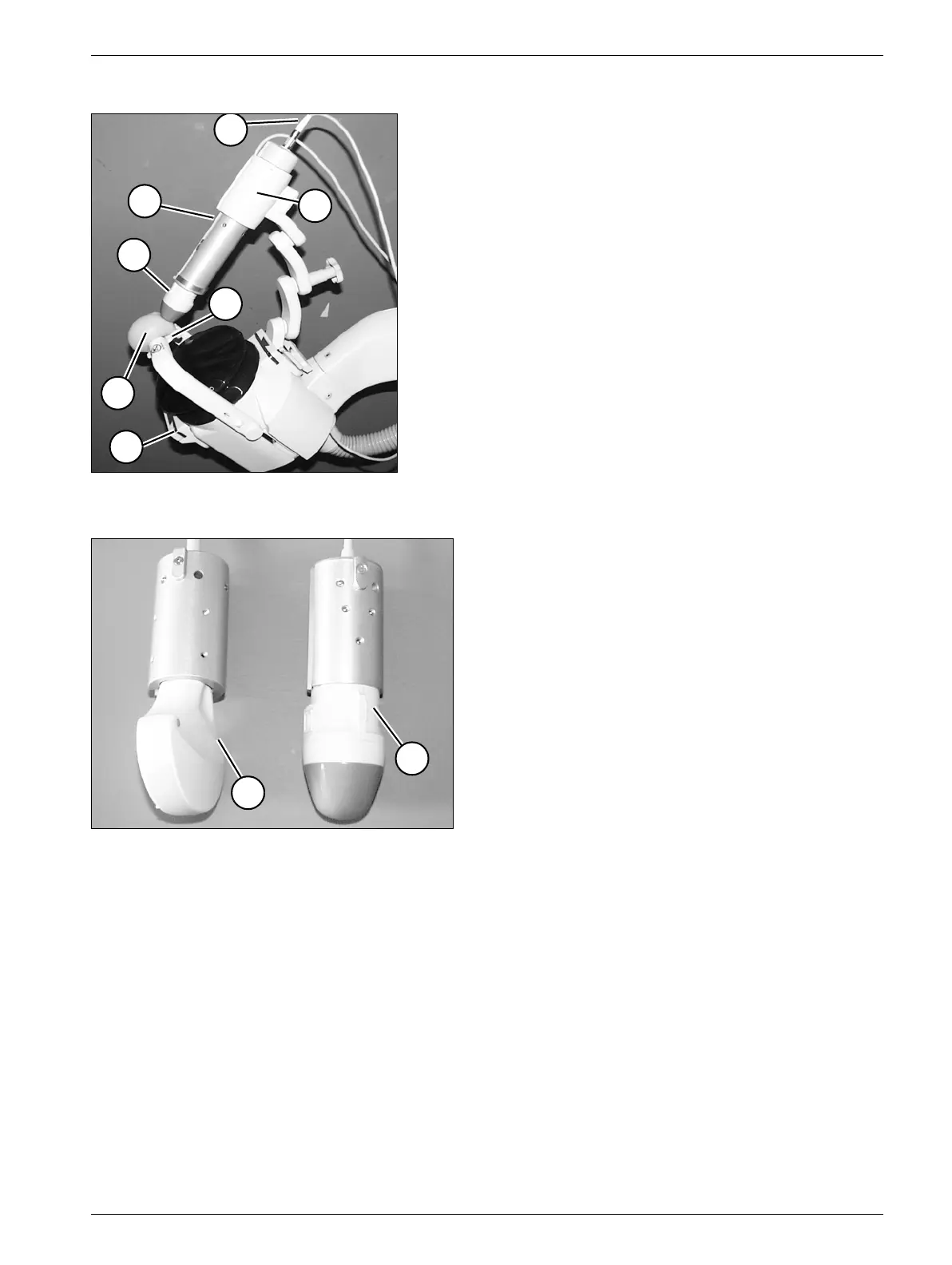

• Fit the holder (1/Fig.1). (See also Operating Instructions).
• Insert an ultrasound probe (sector probe (1/Fig. 2) or array probe (2/Fig. 2)) into the
holder (3/Fig. 1). Carefully insert the probe lead into the longitudinal groove (4/Fig. 1) .
• Plug in the lead (2/Fig. 1) and connect the probe to the ultrasound unit.
• Make the line connection (marked orange) between LITHOSTAR MODULARIS and
ultrasound unit.
Fig. 1
Fig. 2
2
1
4
3
6
5
7
2
1
