MODULARIS Uro Plus SPL1-130.840.02 Page 2 of 8 Siemens AG
Rev. 03 04.05 CS PS 24 Medical Solutions
5 - 2 Iso-center with X-Ray
Adjusting the 0° position 5
Remove the cover of the shock wave head (refer to chapter 4).
Couple the LITHOSTAR MODULARIS to the SIREMOBIL Iso-C as described in the
operating instructions. Do not couple the motor yet.
Manually perform the orbital movement (angulation range approx. ± 30°).
Set the SIREMOBIL Iso-C to orbital and angulation direction 0°.
Couple the motor.
Flip up the iso-center phantom.
Switch FL ON briefly.

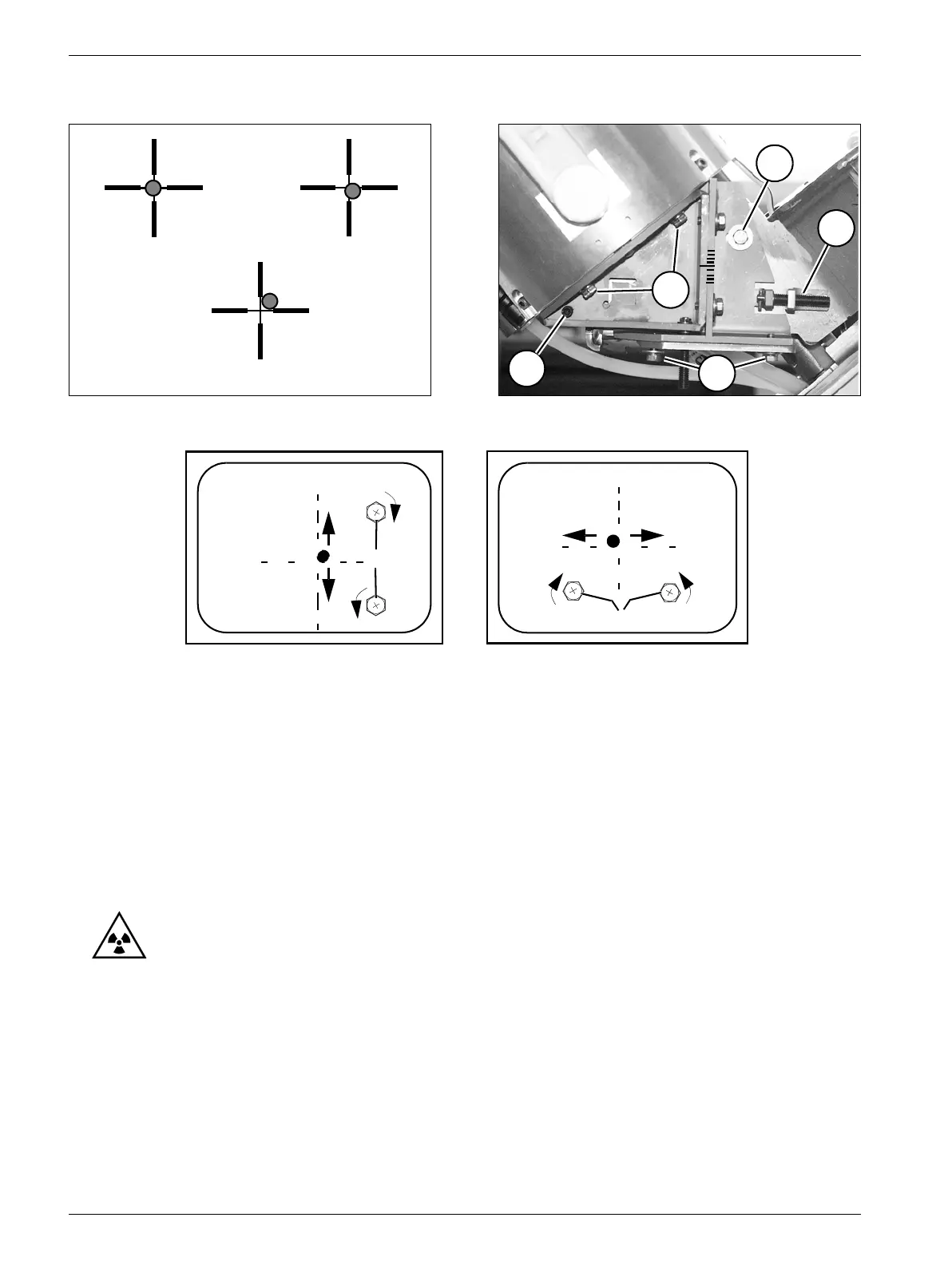

The ball must be in the center of the cross (refer to Fig. 1).
If required, adjust the shock wave head as shown in Fig. 3 (A or B):
Fig. 1 Fig. 2
Fig. 3
-A:Loosen the screws (1/Fig. 2) on both
sides.
-B:Loosen the screws (3/Fig. 2) on both
sides.
- Shift it with the screws (2/Fig. 2). - Shift it with the screws (4/Fig. 2).
- Retighten the screws (1/Fig. 2) on
both sides.
- Retighten the screws (3/Fig. 2) on
both sides.
2
1
1
3
4
ok
acceptable
requires
correction
2/Fig.2
AB
4/Fig.2
