Siemens MODULARIS Uro Plus User Manual

MODULARIS Uro Plus SPL1-130.840.02 Page 4 of 16 Siemens AG
Rev. 03 04.05 CS PS 24 Medical Solutions
6 - 4 Iso-center with ultrasound
• Make the following basic settings on the ultrasound unit:
• Set all slide controls all the wayto the left.
• The image flip key must not be selected.
• The corresponding ultrasound probe is selected on switching on. If a second ultrasound
probe is present, then select the probe with the key.
• Check that the ultrasound arm is as shown in Fig. 1, if not align it.
The longitudinal groove must be visible (1/Fig. 8).

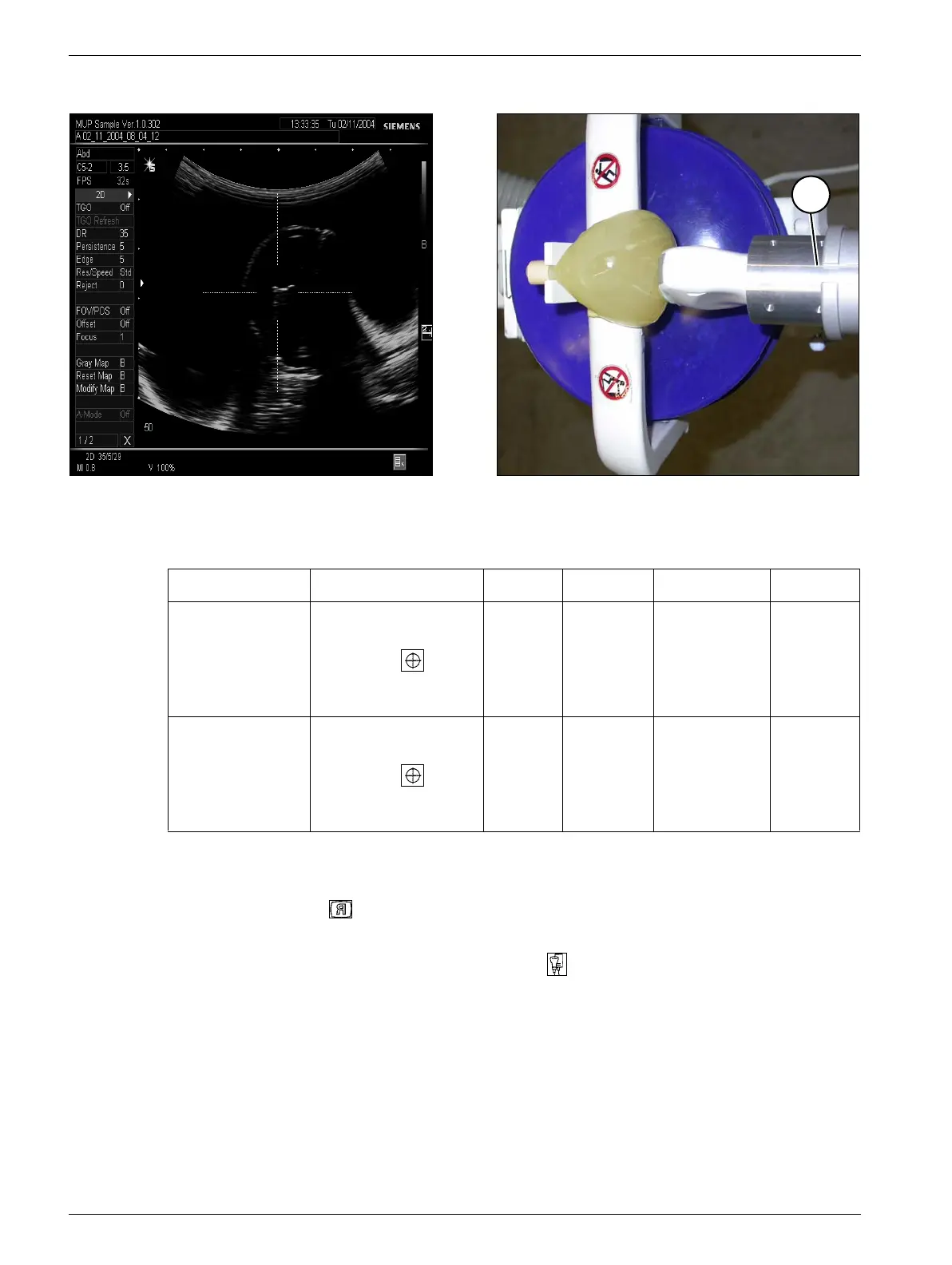

Fig. 7 Fig. 8
Value: Setting with: German English French Spanish
5
(Fig. 7)
Set trackball to Edge
(white background)
then press and
set value with
"Select" controller.
FV Edge Côté Contorno
35 dB (Fig. 7) Set trackball to DR
(white background)
then press and
set value with
"Select" controller.
DR Dyn Rng DR Cam Din
1
