Expanding and assigning parameters to the device
7.4 Connecting a USB stick to the internal interface
100

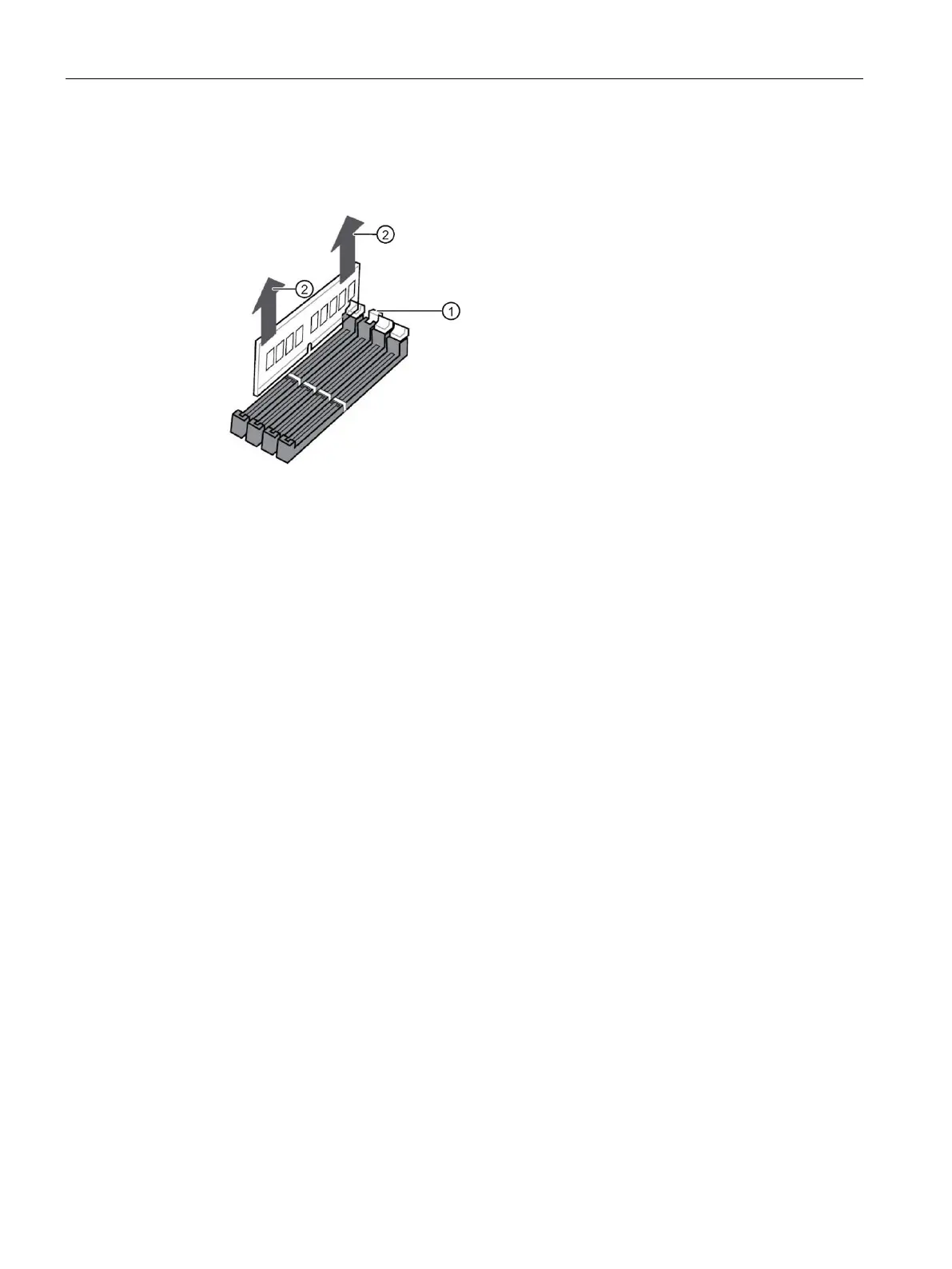

4. Open the lock ① at the slot of the memory module. Remove the memory module from the
slot.
To avoid tilting, pull the memory module out of the slot evenly on both sides ②.
5. C
lose the device.
Display of a changed memory configuration
A changed memory allocation is automatically recognized when the device is switched on.
7.4 Connecting a USB stick to the internal interface
The device has one or two internal USB ports to which you can connect a USB stick.
This interface is located on the motherboard (Page 167) at the rear of the device.
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 47)".
• Retainer for locking the internal USB interface, see "Hardware accessories (Page 32)".
• Screwdriver TORX T10
Procedure
1. Fully disconnect the device from the line voltage, see "Switching off the device (Page 74)".
2. Open the device. Be sure to follow the important instructions under "Open the device
(Page 93)".
3. Insert the USB stick into the socket of the internal USB interface on the motherboard
(Page 167).
