7.3.2 Installing memory modules
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 47)".
• You know the Information on using memory modules. (Page 95)

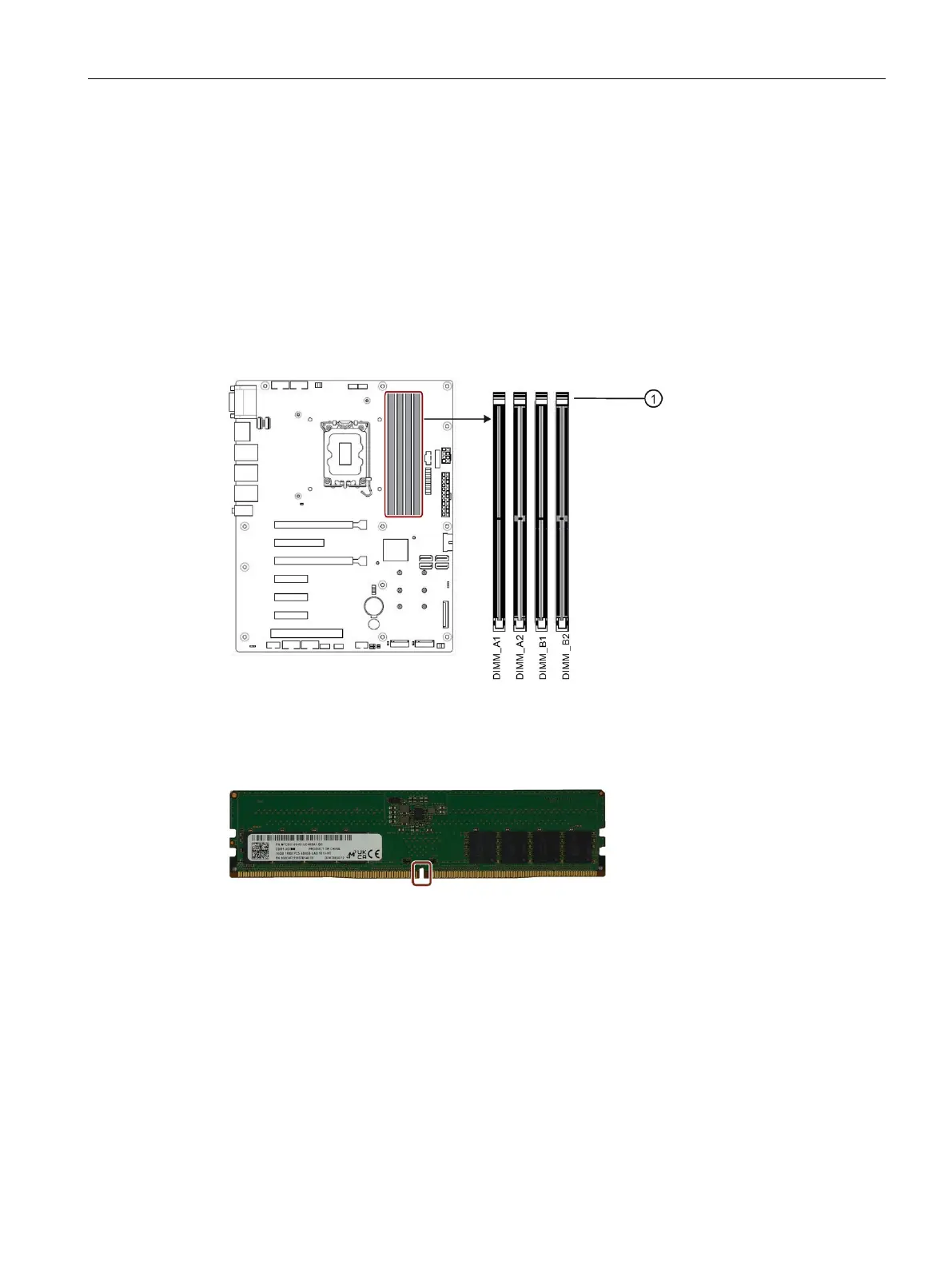

Location of the memory modules on the motherboard
①
Locks
Order when installing multiple memory modules
If you install several memory modules, install them one after the other in the following order:
• Memory module 1: DIMM_A1 slot
• Memory module 2: DIMM_A2 slot
• Memory module 3: DIMM_B1 slot
• Memory module 4: DIMM_B2 slot
The slots of the memory modules are labeled on the motherboard.
