1.4 External design of the device
24
1.4.5 Operator controls
1.4.5.1 On-off button and reset button
Risk of electric shock
The on-off button and on-off switch do not fully disconnect the device from the electricity
grid.
You also need to observe the notes and information under "Switching off the device

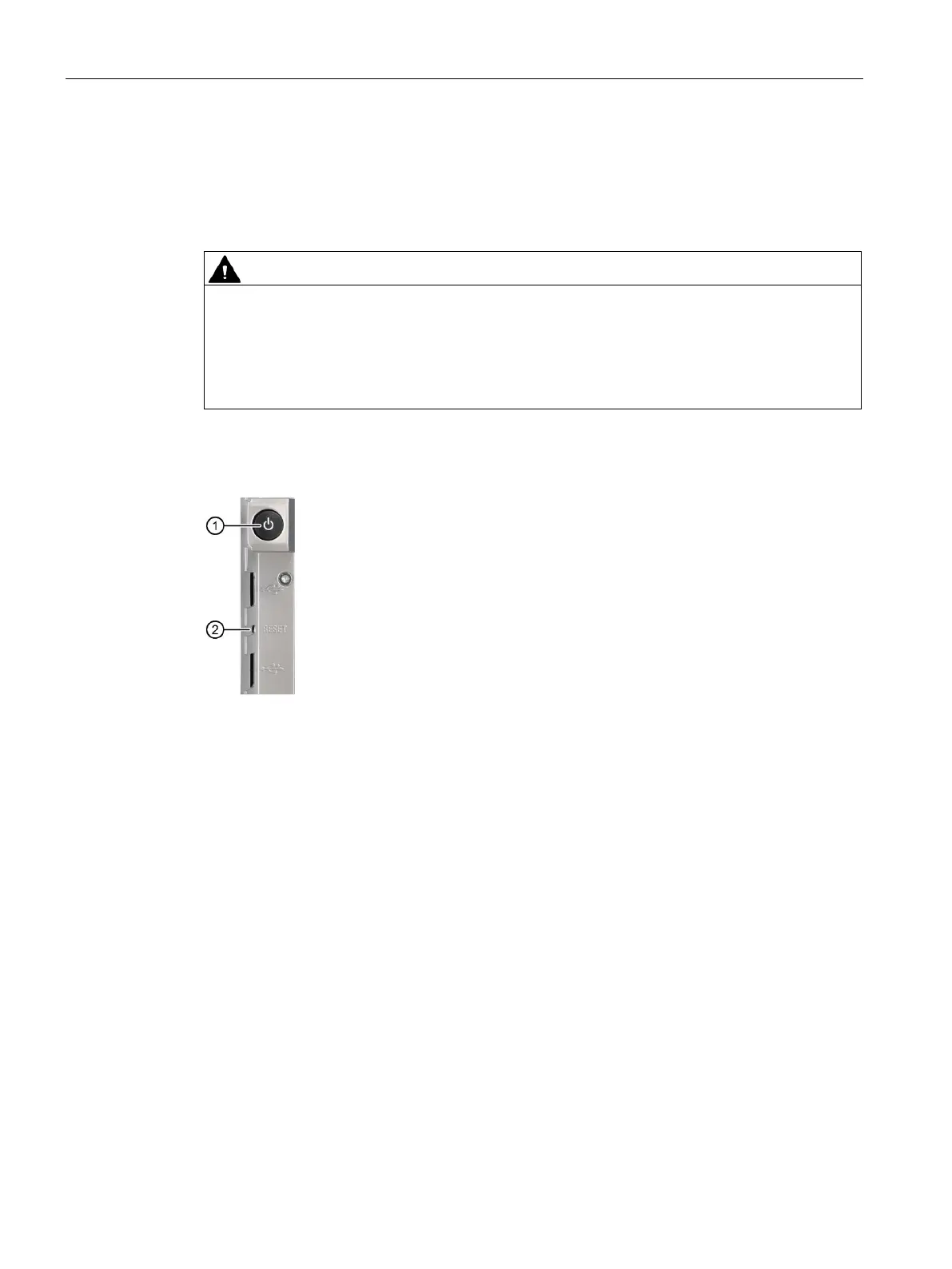

The on-off button ① and the reset button ② are located on the front of the device behind the
front door.
The on-off button starts and shuts down the operating system.
You can find information on switching the device on and off under "Switching on the device (Page 73)"
and "Switching off the device (Page 74)".
The reset button is for the emergency when the device can no longer be operated.
You can find information on the hardware reset under "Switching off the device (Page 74)"
Workstation SIMATIC IPC
RW-545A Operating
Instructions, 08/2023, A5E52943278-AA
