Technical specifications
9.9 Technical specifications of the connections
155
9.9 Technical specifications of the connections
9.9.1 Technical specifications of the connections on the device
See the note in "Applicability of technical specifications (Page 141)".
Note
Detailed information on the p
osition of the connections is available in "Device ports
(Page 20)".

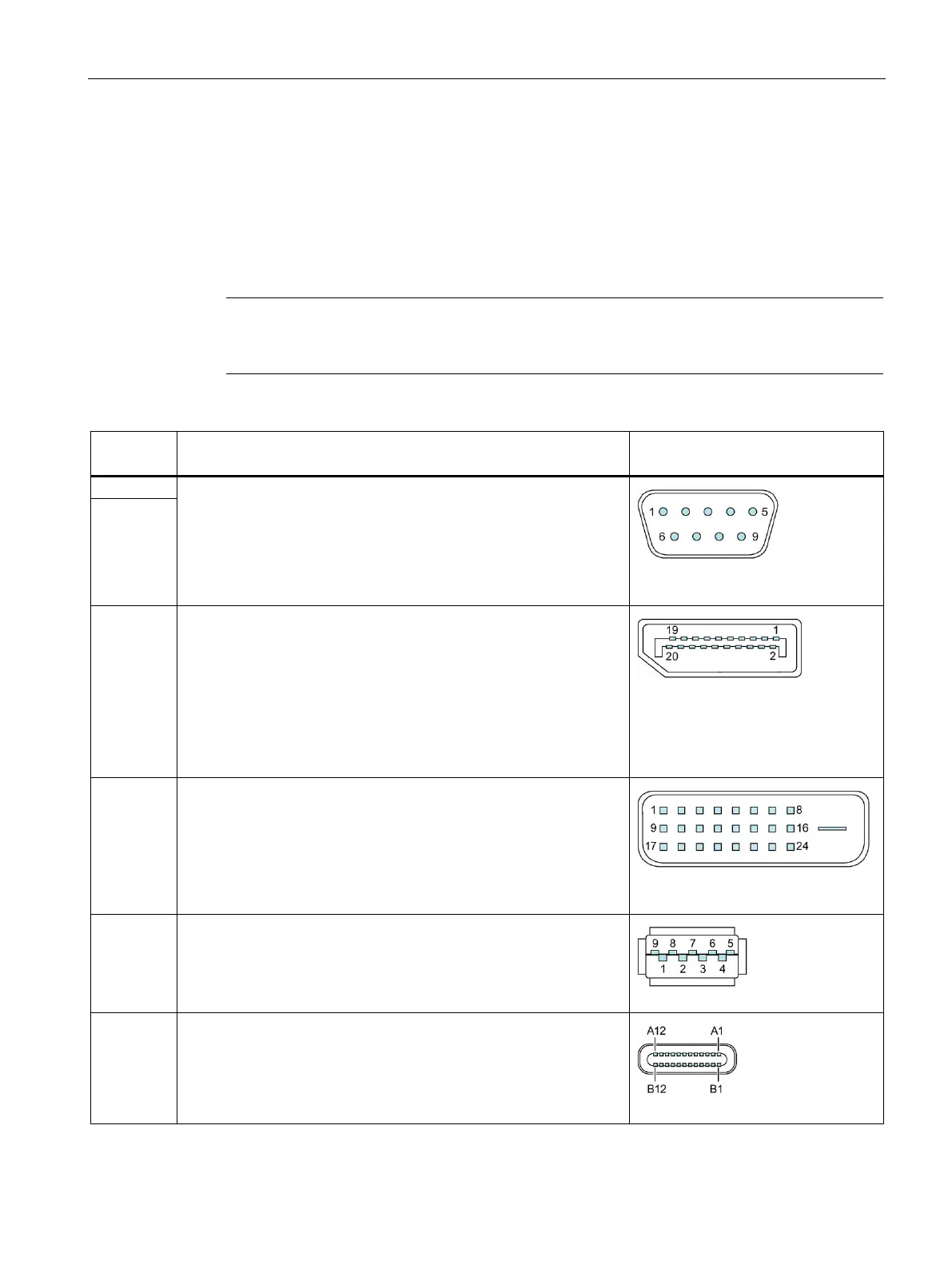

Connectio
n socket
Description Assignment
COM1
COM:
• Serial interface (standard: RS-232)
• Sub-D socket
• V.24
9-pin
(±12 V)
COM2
DP
DisplayPort (labeling on the device: DPP)
An analog monitor can be used with an adapter cable (optional).
• Connection for monitors with DisplayPort connector
• Connection for monitors with VGA connector via DP-VGA adapter,
See Hardware accessories (Page 32)
• Connection for monitors with DVI connector via DP-DVI-D adapter,
See Hardware accessories (Page 32)
20-pin
(3.3 V; 500 mA)
DVI-D
DVI-D:
• Connection for monitors with DVI-D connector
Monitors with a DVI-D connector can also be connected to the DPP
connection socket using an adapter.
24-pin
(5 V; 500 mA)
USB Type A
USB Type A:
• High-current
5 V
USB Type C
USB Type C:
• High-current
5 V; 1.5 A; up to 10 Gbps
