Siemens SIMATIC IPC RW-545A

Technical specifications

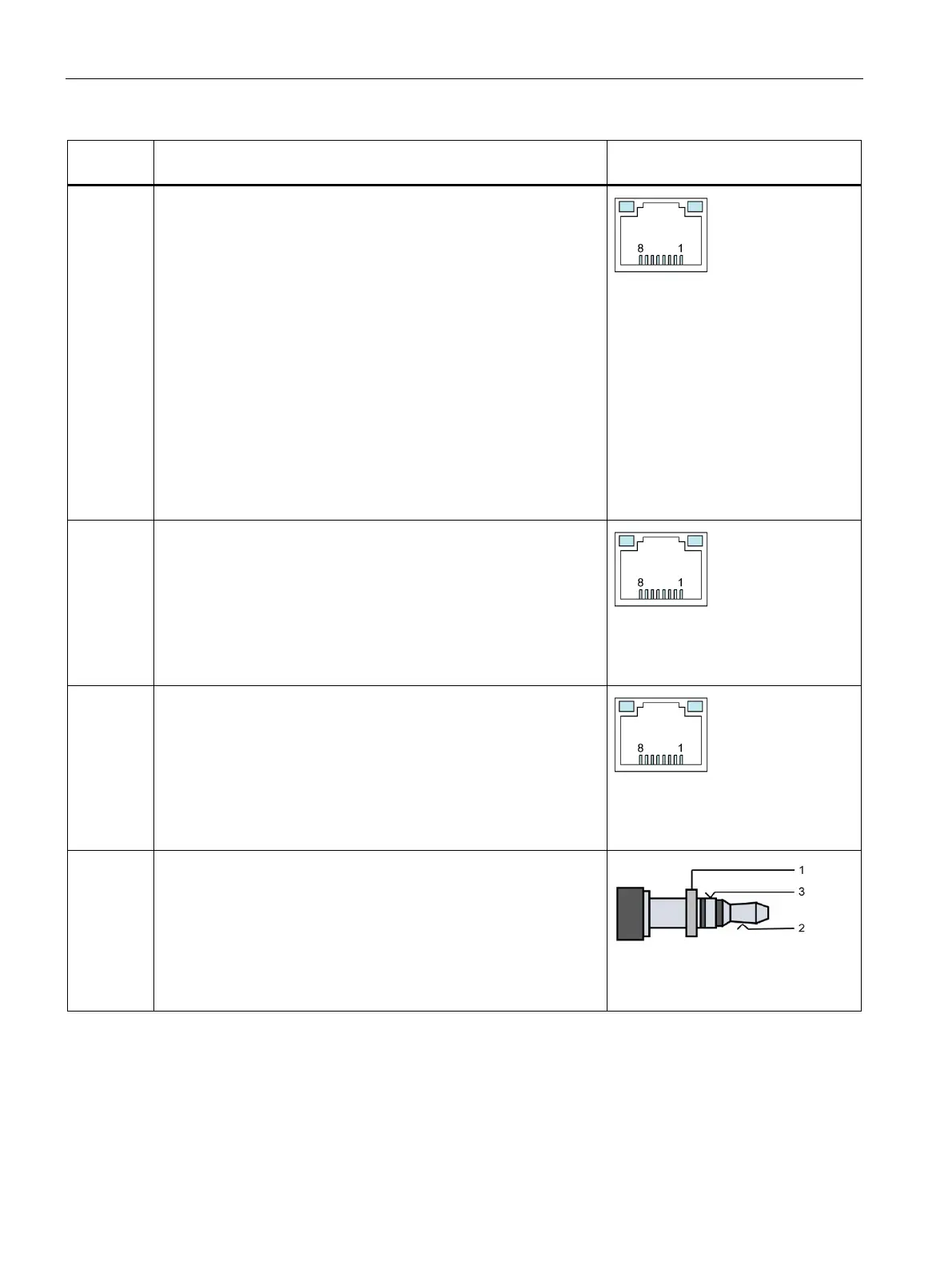

9.9 Technical specifications of the connections
156
Connectio
n socket
Description Assignment
LAN 1
Intel® I219-LM
• The LAN ports are numbered on the enclosure. The numbering by
the operating system may differ from this.
• Connection for Ethernet with RJ45 connector
• Data transmission rate: 10/100/1000 Mbps
• Support for jumbo frames up to 9 KB
The following teaming modes are supported:
• AMT-capable
iAMT and Teaming are not possible at the same time
• Adapter Fault Tolerance (AFT)
• Adaptive Load Balancing (ALB)
• IEEE 802.3ad Dynamic Link Aggregation (DLA)
• Static Link Aggregation (SLA)
• Switch Fault Tolerance (SFT)
8-pin, RJ45
LAN 2
Intel® I210-AT
• The LAN ports are numbered on the enclosure. The numbering by
the operating system may differ from this.
• Connection for Ethernet with RJ45 connector
• Data transmission rate: 10/100/1000 Mbps
• Support for jumbo frames up to 9 KB
• Wake on LAN, remote boot
8-pin, RJ45
LAN 3
Intel® I225-LM
• The LAN ports are numbered on the enclosure. The numbering by
the operating system may differ from this.
• Connection for Ethernet with RJ45 connector
• Data transmission rate: 10/100/1000/2500 Mbps
• Support for jumbo frames up to 9 KB
• Wake on LAN, remote boot
8-pin, RJ45
Audio
• Connection for 3.5 mm audio stereo jack:
Realtek ALC887, 8-channel DAC support
– Line IN (light blue)
– Headphone OUT (pastel green)
(max. 2 W at 4 Ω)
– Microphone IN (pink)
1: Ground
2: Audio links
3: Audio right
Workstation SIMATIC IPC
RW-545A Operating
Instructions, 08/2023, A5E52943278-AA
