Expanding and assigning parameters to the device
7
7.1 Open the device
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 47)".
• Screwdriver TORX T10
Procedure
1. Fully disconnect the device from the line voltage, see "Switching off the device (Page 74)".
2. Unplug all connecting cables.
3. Open the front panel. (Page 77)

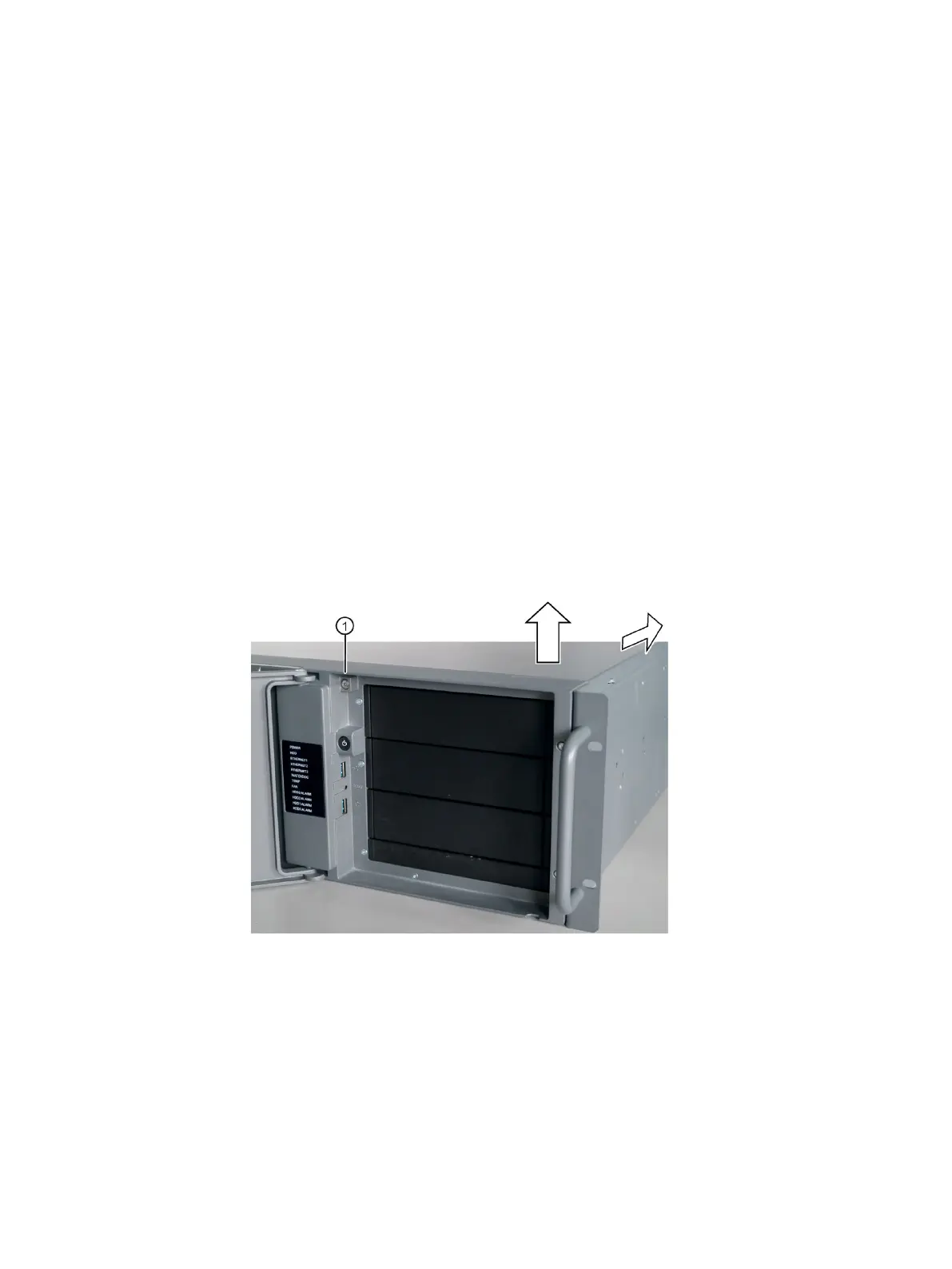

4. Unscrew the locking screw of the enclosure cover ①.
5. Push
the enclosure cover back.
6. Lift up and remove the enclosure cover.
