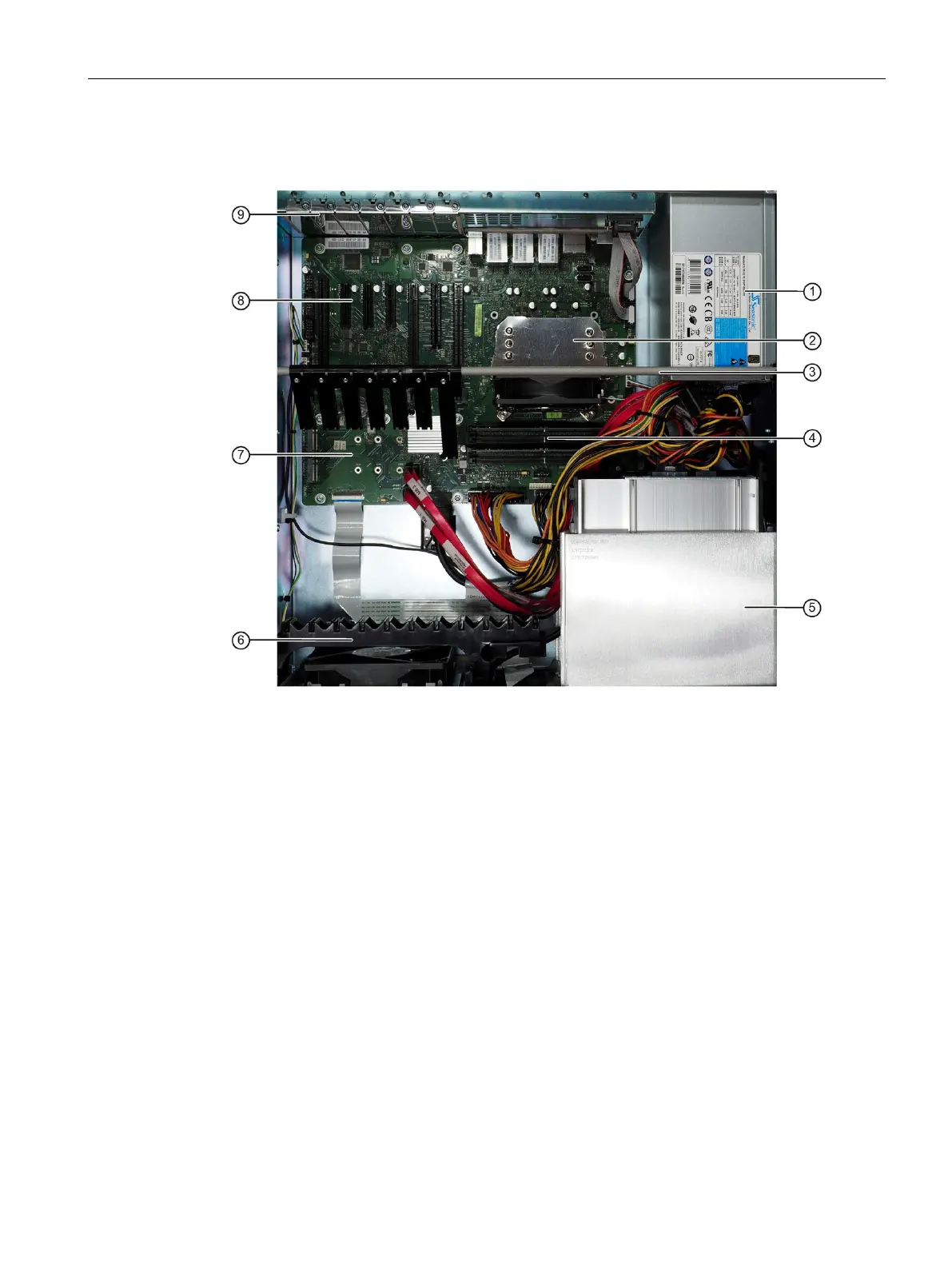

1.5 Internal construction of the device
31
1.5 Internal construction of the device
The motherboard shown is an example. Details may differ from the motherboard of your device
Power supply unit, single or redundant (here in the example: Power supply unit 850 W)
Heat sink of the processor
Rod with card holders for expansion cards
Drive cage (here in the example: Drive cage type A or type B)
Guide rail for long expansion cards
Slot brackets (numbering of the slots for expansion cards on the enclosure)
Workstation SIMATIC IPC RW-545A
