7.6 Installing and removing drives
110
7.6.1.4 Installing a backplane for removable tray
The backplane of the removable tray is installed from inside at the back end of the drive cage
type A and is equipped with interfaces for data cables to the motherboard.
This enables the convenient connection of the data cables from the motherboard to the drive
in the removable tray at these interfaces.

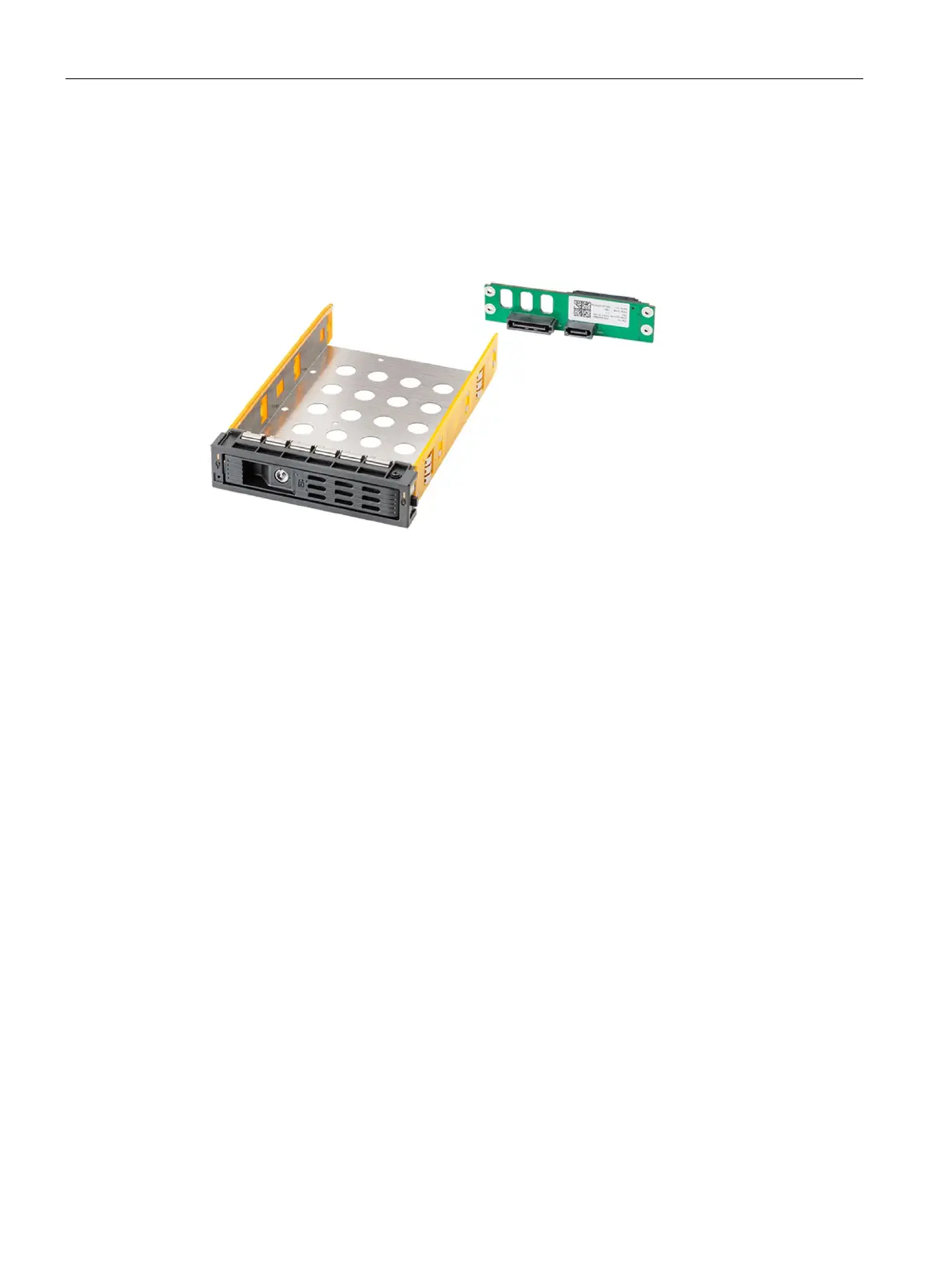

Removable tray with backplane
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 47)".
• An original spare part. You can find information on spare parts under "Hardware
accessories (Page 32)".
• The device is equipped with the drive cage type A.
Procedure
1. Fully disconnect the device from the line voltage, see "Switching off the device (Page 74)".
2. Open the device. Be sure to follow the important instructions under "Open the device
(Page 93)".
