Expanding and assigning parameters to the device
7.6 Installing and removing drives
111

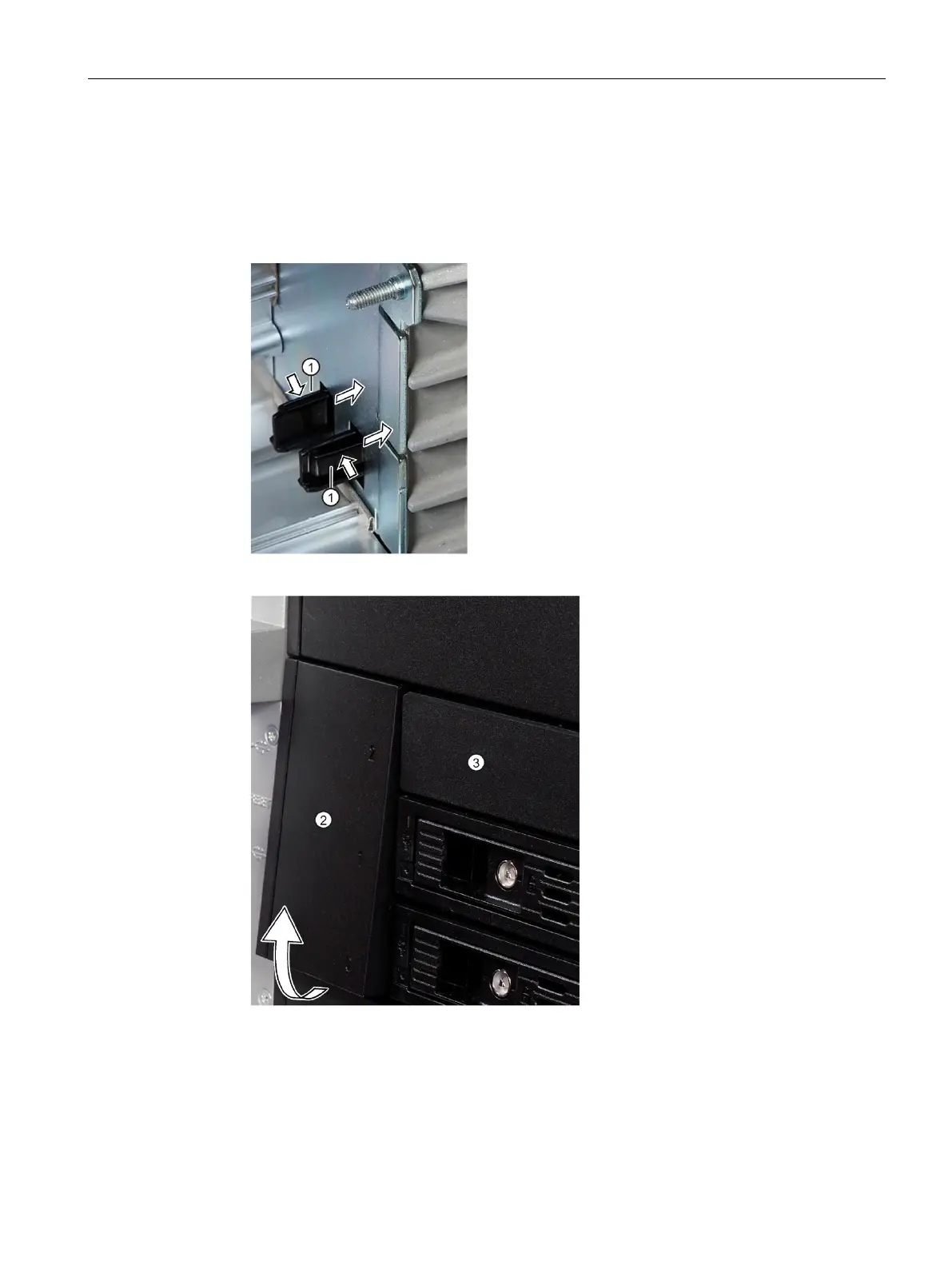

3. First remove the cover ②, which is located on the front of the type A drive cage to the left of
the removable trays.
To do this, press the locks ① of the cover ② together inside the device and keep them
pressed.
Then push the locks to the front in the direction of the arrow.
4. Remov
e the cover ② upwards at an angle at the front of the device.
5. On t
he front of the drive cage, remove the cover ③, which may be located to the right of
the cover ②.
6. Remove all existing removable trays until the drive cage is freely accessible.
Workstation SIMATIC IPC RW-545A
Operating Instructions, 08/2023, A5E52943278-AA
