Siemens SIMATIC IPC RW-545A

Product description
1.4 External design of the device
21

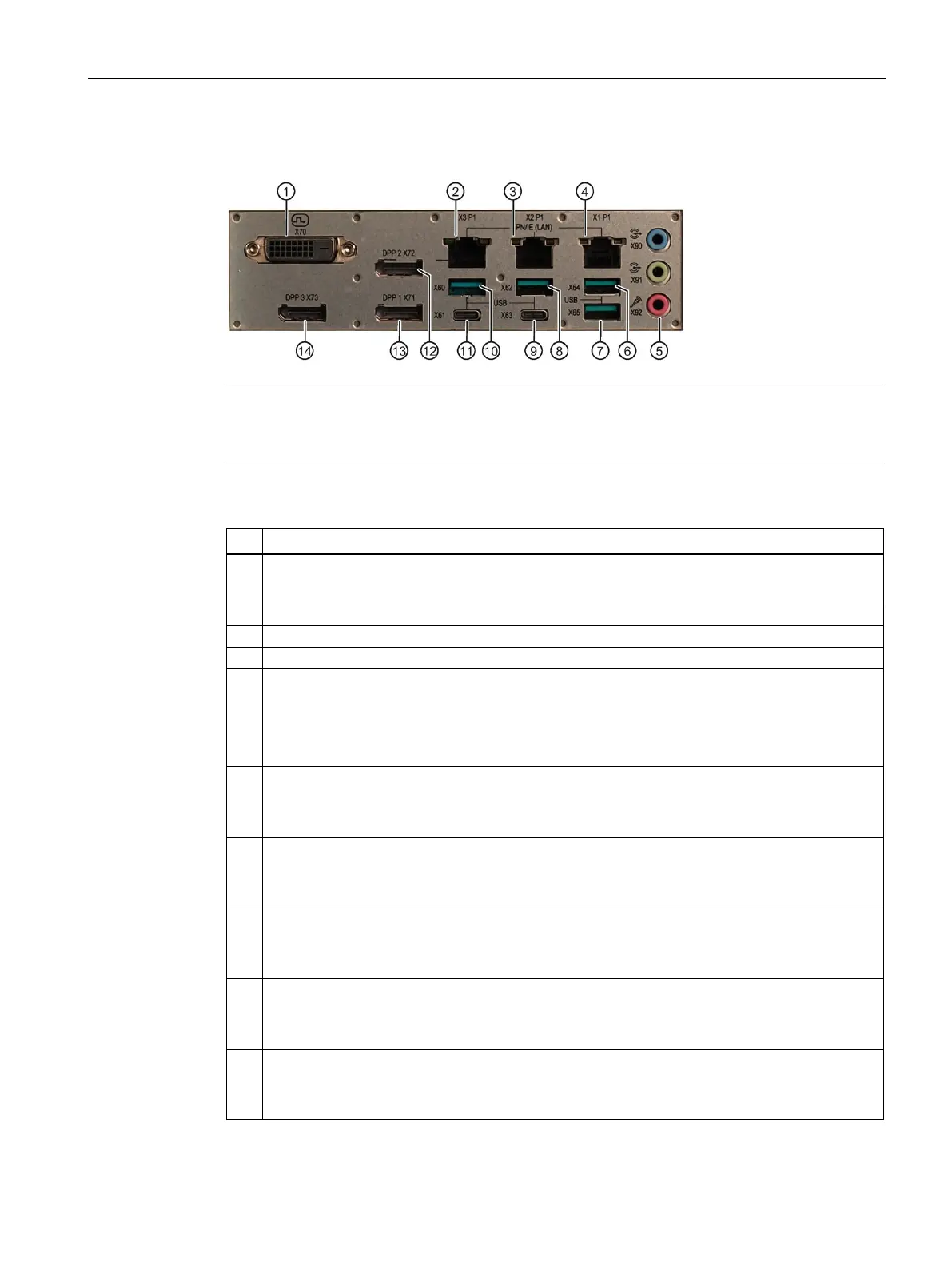

1.4.4.2 Connections on the rear of the device
Note
Note the information in "
Technical specifications of the connections on the device
(Page 155)".
No.
Connection socket
①
DVI-D, for connection of monitors
• DVI-D (X70)
②
LAN 3 (X3 P1)
③
LAN 2 (X2 P1)
④
LAN 1 (X1 P1)
⑤
Audio
• Light blue: Line IN for audio devices (X90)
• Lime: Line OUT for headphones or speaker (X91)
• Pink: Microphone IN, (X92)
⑥
USB 3.2 Gen2 Type A (10 Gbps)
Backwards compatible to USB 3.0 / 2.0 / 1.1; each 900 mA / high current
1
• (X64)
⑦
USB 3.2 Gen2 Type A (10 Gbps)
Backwards compatible to USB 3.0 / 2.0 / 1.1; each 900 mA / high current
1
• (X65)
⑧
USB 3.2 Gen2 Type A (10 Gbps)
SuperSpeed; backwards compatible to USB 3.0 / 2.0 / 1.1; each 900 mA / high current
1
• (X62)
⑨
USB 3.2 Gen2x2 Type C (20 Gbps)
2
backwards compatible to USB 3.0 / 2.0 / 1.1; each 1500 mA / high current
1
• (X63)
⑩
USB 3.2 Gen2 Type A (10 Gbps)
Backwards compatible to USB 3.0 / 2.0 / 1.1; each 900 mA / high current
1
• (X60)
Workstation SIMATIC IPC RW-545A
Operating Instructions, 08/2023, A5E52943278-AA
