Hardware description
A
A.1 Motherboard

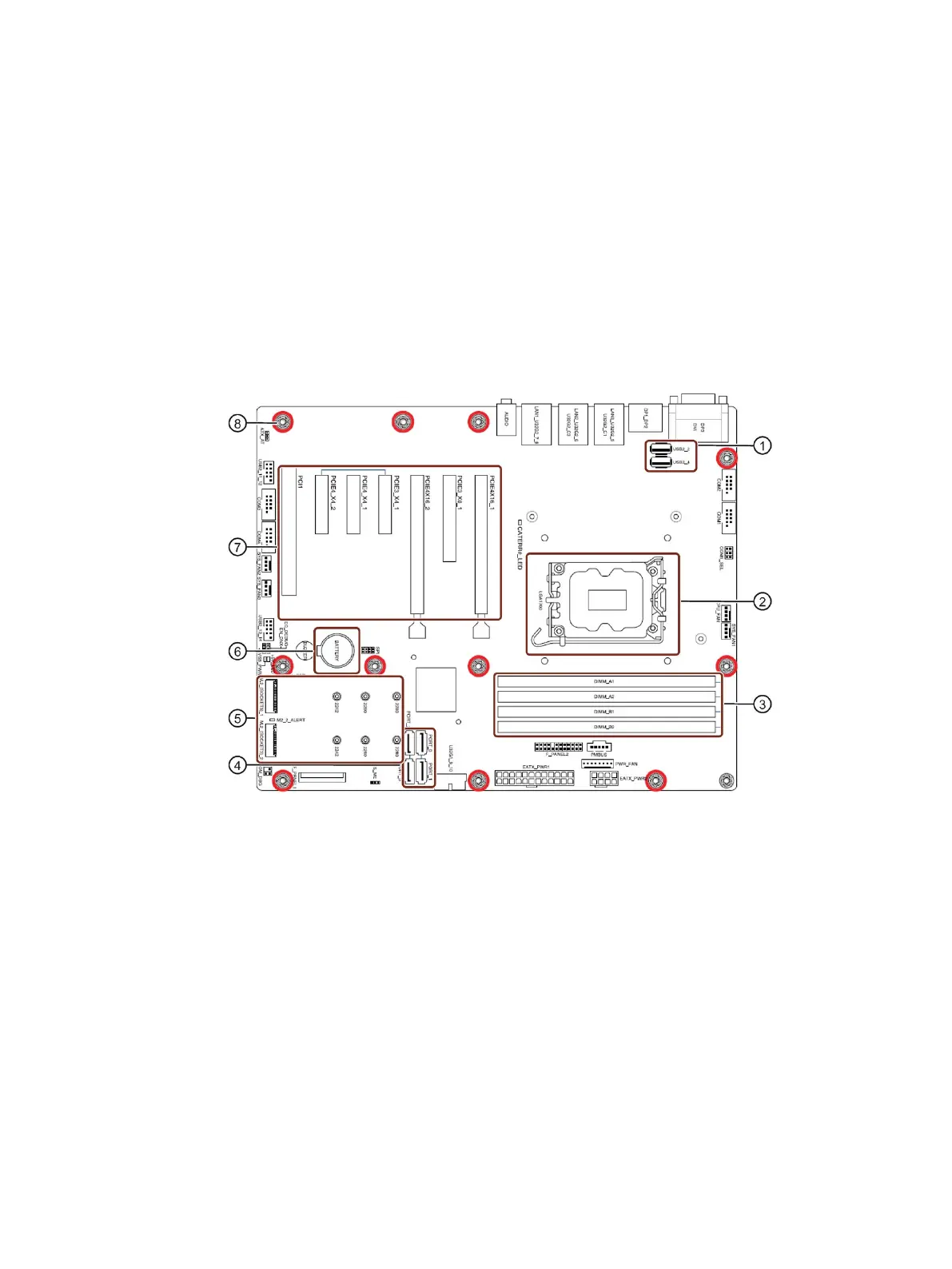

A.1.1 Layout of the motherboard
You can find a detailed description of the motherboards and the interfaces on the
motherboards on the supplied data storage medium, see "Important instructions and
manuals for operating the device (Page 11)".
①
2 internal USB ports
USB 2.0, Type A vertical
backwards compatible to USB 1.1; 500 mA / high current
1
②
Processor socket
③
Four slots for memory modules
④
4 SATA ports
⑤
2 slots for M.2 NVMe SSDs
⑥
Backup battery
⑦
7 slots for expansion cards, see "Technical specifications of the expansion card slots
(Page 150)"
⑧
10 screws for fastening the motherboard in the device
1
Sum of the currents on the USB ports of the device (including the internal USB ports) ≤ 3 A
Technical features of the motherboard
Technical features of the motherboard can be found under "General technical specifications
of the motherboard (Page 149)".
