1.4 External design of the device
16

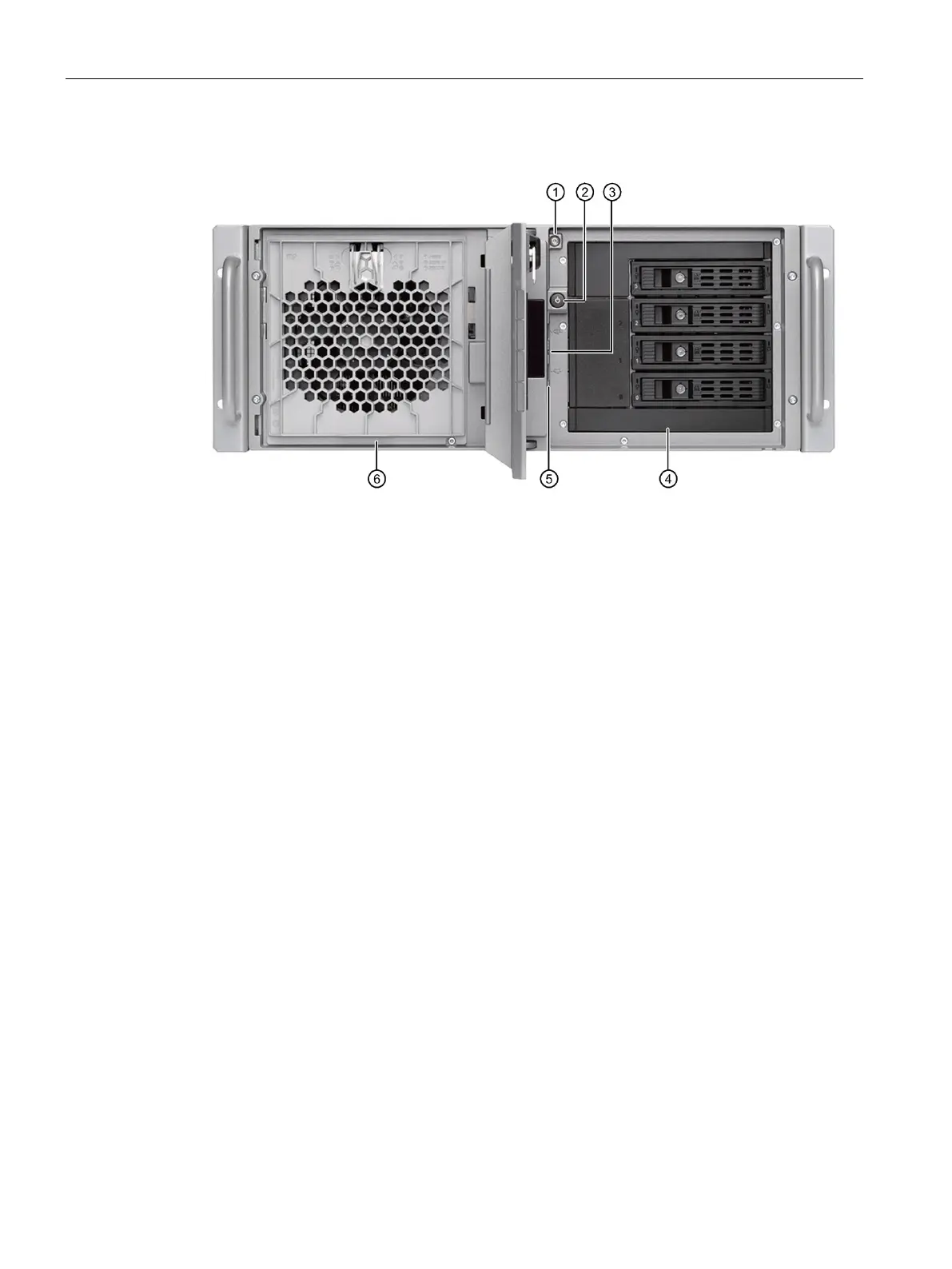

Front: Front door is open
Locking screw of the enclosure cover
On-off button, see Operator controls (Page 24)
Rese pushbutton, see Operator controls (Page 24)
Drive cage (in this case type A); depending on the expansion variant, see:
• Drive cage (Page 16)
Interfaces on the front of the device, see Device ports (Page 20)
1.4.2 Drive cage
1.4.2.1 Drive cage type A
Drives and mounting locations in the drive cage type A
The drive cage type A is located behind the front door.
You can install drives in removable trays, in which the drives are easily accessible from the
outside without opening the device.
The removable trays can be locked, thus protecting the drives from unauthorized access.
