1.4 External design of the device
17
(0)

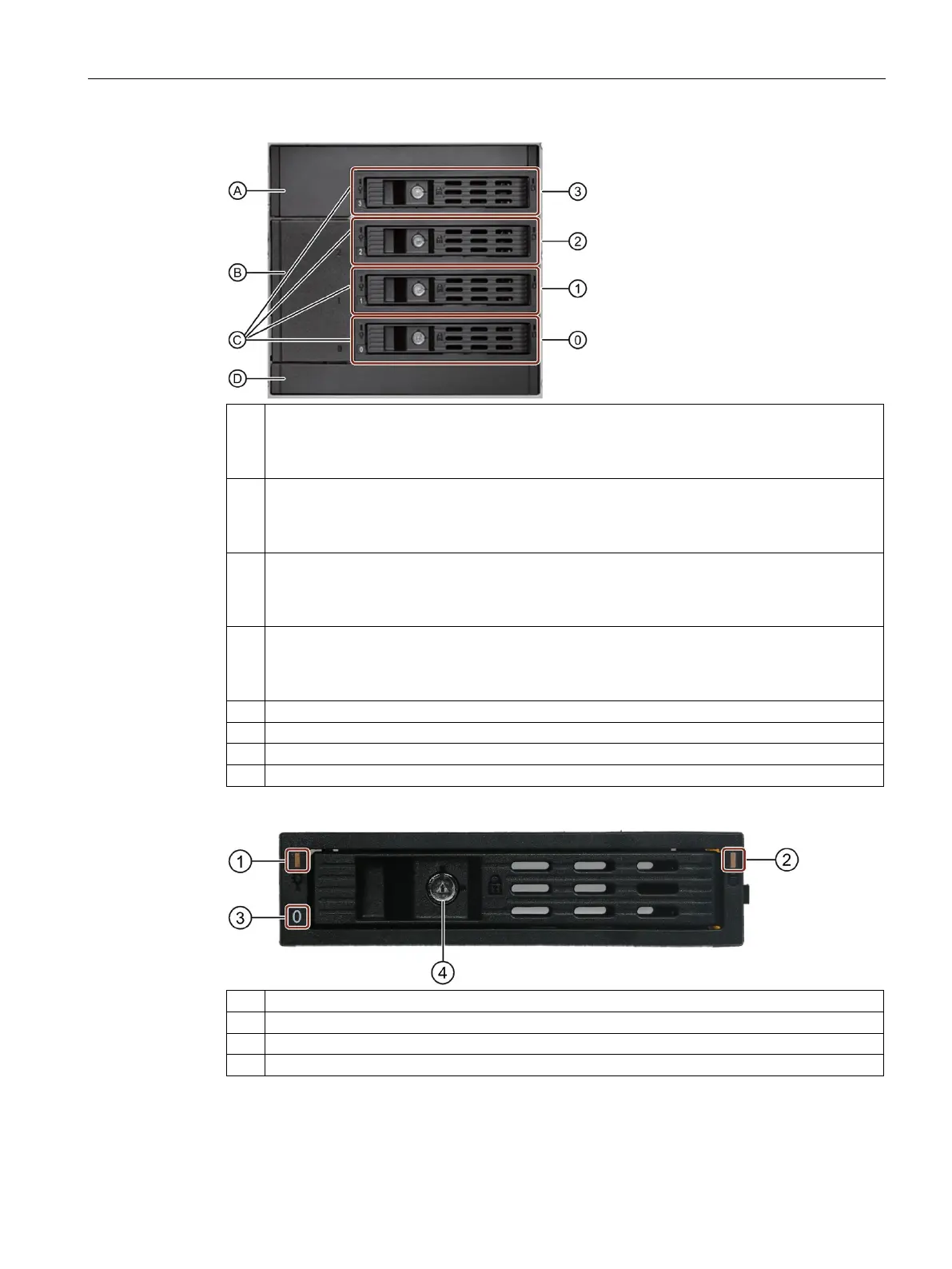

Mounting location 0 for:
• 2.5" drive in removable tray
• 3.5" drive in removable tray
(1)
Mounting location 1 for:
• 2.5" drive in removable tray
• 3.5" drive in removable tray
(2)
Mounting location 2 for:
• 2.5" drive in removable tray
• 3.5" drive in removable tray
(3)
Mounting location 3 (5.25" tray) for:
• 5.25" mounting frame with removable tray for 2.5" and 3.5" drives
• 5.25" drive or 5.25" component
(A)
Cover of the mounting frame for removable tray (Page 108)
(B)
Cover
(C)
Removable tray
(D)
Cover
Components of the removable tray
(1)
Status display (Page 30)
(2)
Status display (Page 30)
(3)
Number of the mounting location (here: Mounting location 0)
(4)
Lock
