9.9.2 Technical specifications of the plug connectors for the power supply of
graphics cards
See the note in "Applicability of technical specifications (Page 141)".
6-pin or 8-pin plug-in connector for graphics cards
For graphics cards that require their own power supply, 6-pin and 2-pin plug-in connectors
are available on the wiring harness of the power supply unit. You can create an 8-pin plug-in
connector by plugging both plug-in connectors together.
Either a 6-pin plug-in connector or an 8-pin plug-in connector is connected to the respective
graphics card.
Depending on the power supply unit, there are either one or more 6-pin connectors and one
or more 2-pin extensions on the wiring harness.
• Power supply unit 550 W:
One 6-pin and 2-pin plug-in connector
• Power supply unit 850 W:
Two 6-pin and 2-pin plug connectors
• Power supply unit 700 W (2 modules, each 700 W, redundant):
One 6-pin and 2-pin plug-in connector
Description
Assignment

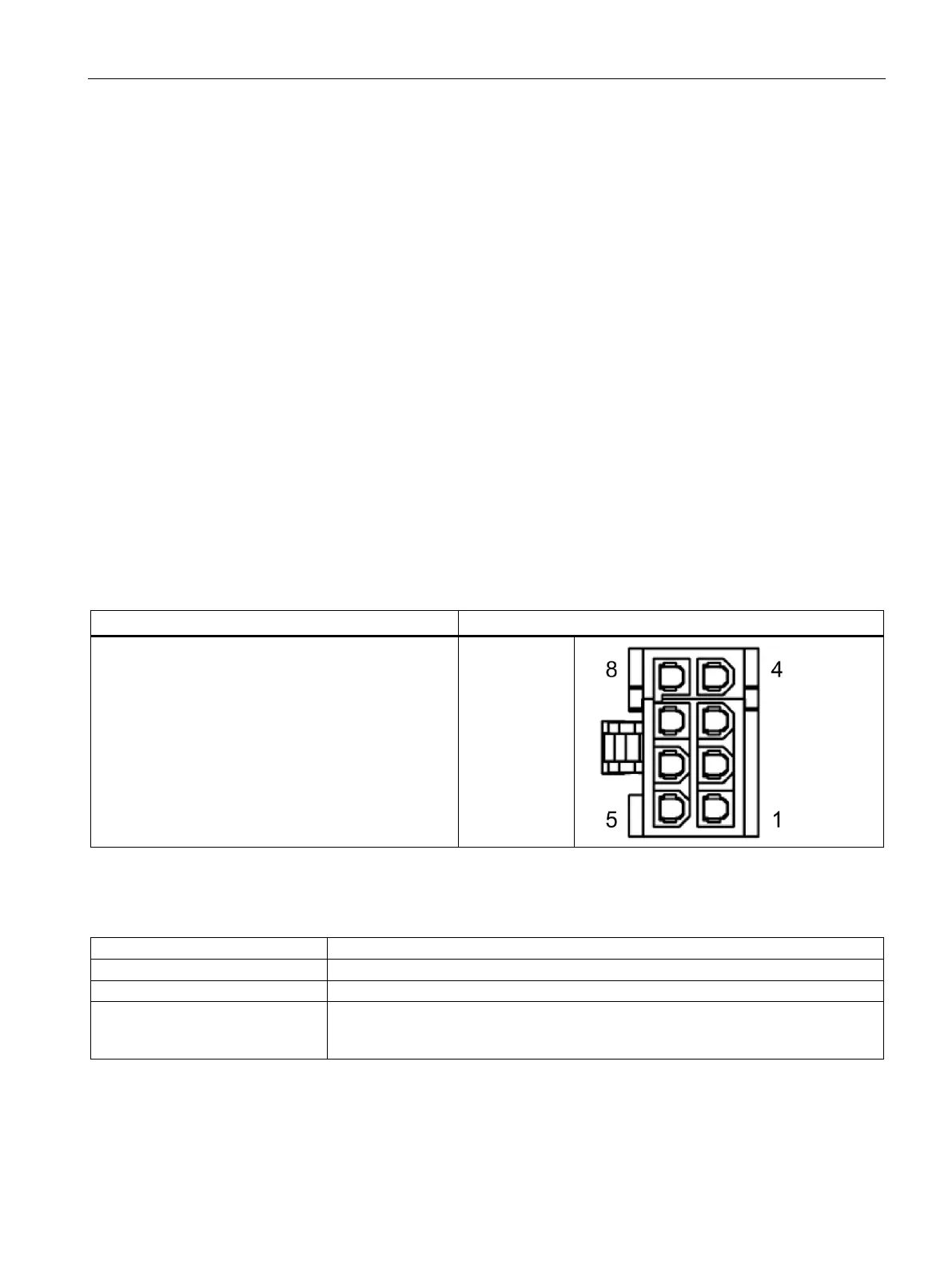

Connector on the wiring harness of the power supply
unit
1 = +12 V
2 = +12 V
3 = +12 V
4 = GND
5 = GND
6 = GND
7 = GND
8 = GND
9.10 Technical specifications of the telescopic rails
Ultimate load per pair
≥ 30 kg
Full extraction length
≥ 470 mm
Rail thickness
≤ 9.7 mm
Mounting screws
M5 x 6 mm
The mounting screws of the telescopic rails may not protrude by more than 5 mm into
the enclosure.
See also
Dimension drawing for drill holes for telescopic rails (Page 162)
