Siemens SIMATIC IPC RW-545A

Device maintenance and repair
8.3 Removing and installing hardware
126
8.3 Removing and installing hardware
8.3.1 Front fan maintenance
8.3.1.1 Removing the fan cover from the front fan
Information on the position of the fan cover of the front fan is available under "Front panel
(Page 15)".
Requirement
• The front door is open. (Page 77)
Procedure
1.
Open the front door to at least an
angle of approx. 45 °
2.

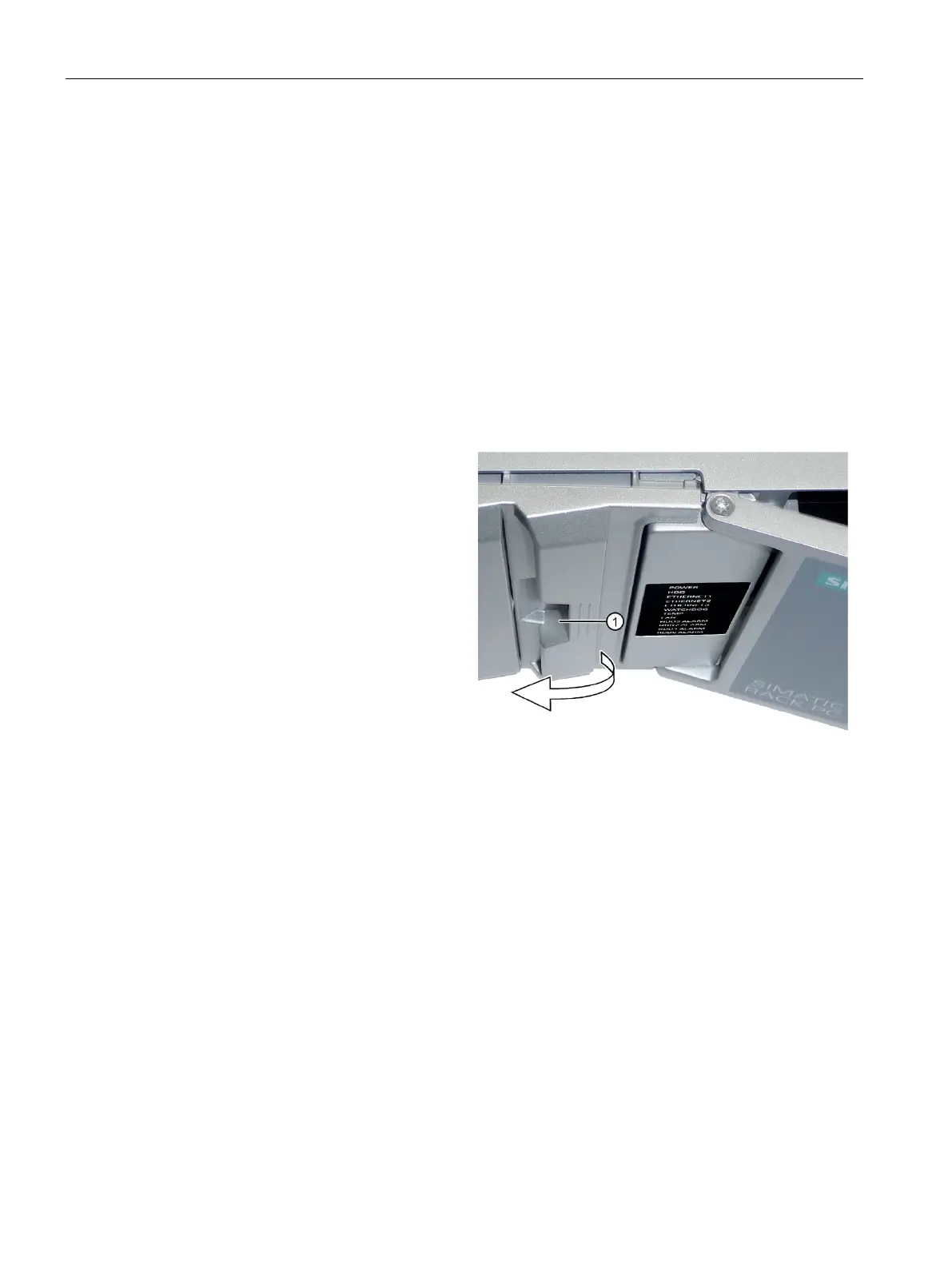

Take hold of the recessed grip of
the fan cover ①.
3.
Open the fan cover in the
direction of the arrow and remove
it.
8.3.1.2 Changing the filter mat of the front fan
Requirement
• The fan cover has been removed; see "Removing the fan cover from the front fan
(Page 126)".
• An original spare part, i.e. a filter mat of the same type. You can find information on spare
parts under "Hardware accessories (Page 32)".
Procedure
1. Remove the filter mat from the fan cover.
2. Insert the new filter mat loosely into the fan cover. Place the filter mat evenly in the fa
n
co
ver.
3. Replace the fan cover.
See also
Maintenance intervals (Page 125)
