Expanding and assigning parameters to the device
7.6 Installing and removing drives
108
7.6.1.3 Installing a 5.25" mounting frame for removable tray
You can install a 5.25" mounting frame for removable trays in the drive cage type A.
You can then use a 2.5 "or a 3.5" drive in the removable tray.

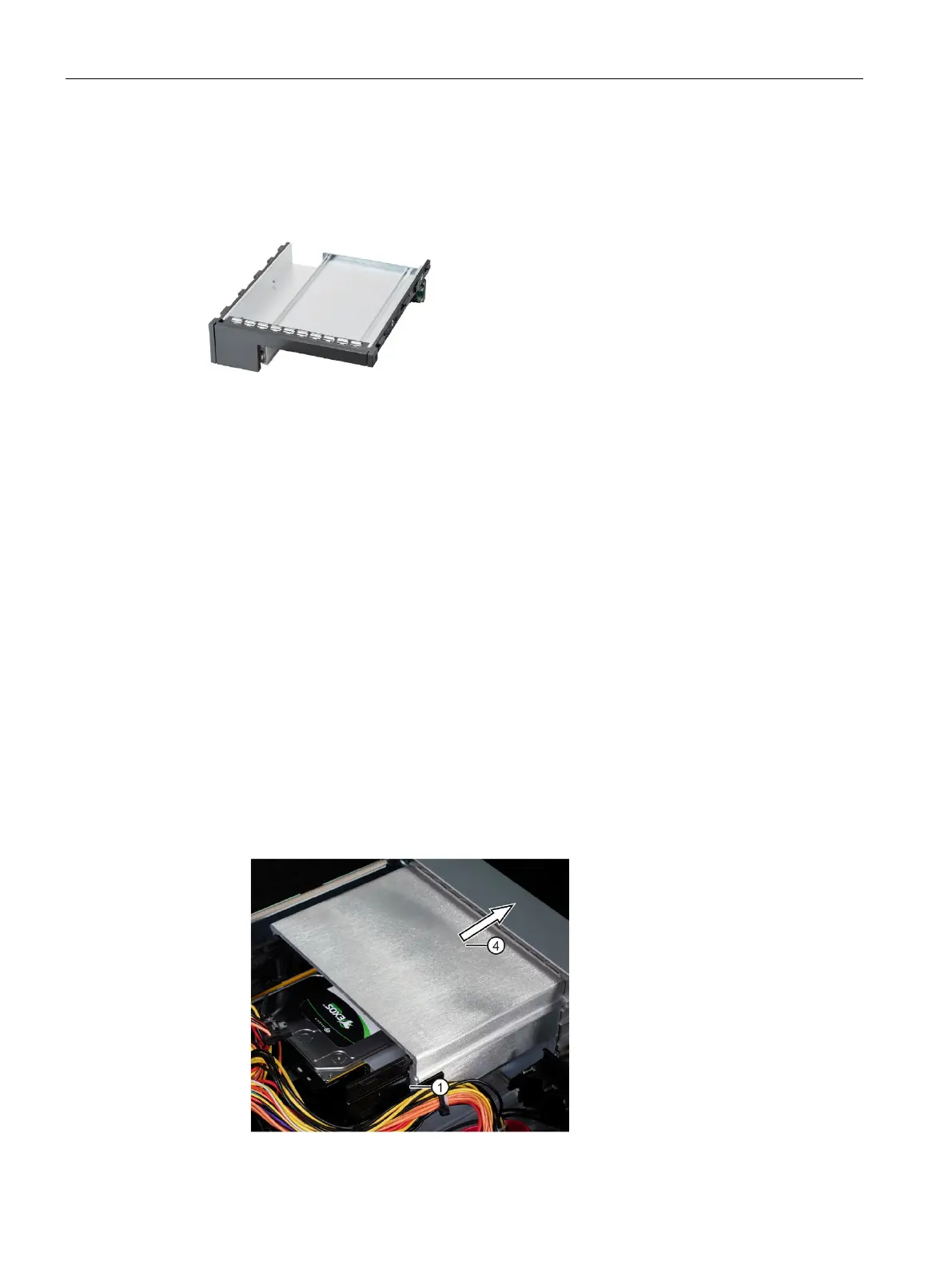

5.25" mounting frame with removable tray
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 47)".
• The device is equipped with the drive cage type A.
• You know the information under: Installation options for drives with drive cage type A
(Page 104)
• An original replacement part. You can find information on spare parts under "Hardware
accessories (Page 32)".
• Screwdriver TORX T10
Procedure
1. Fully disconnect the device from the line voltage, see "Switching off the device (Page 74)".
2. Open the device. Be sure to follow the important instructions under "Open the device
(Page 93)".
3. Remove the installed empty 5.25" component from the corresponding mounting location:
– If available: Disconnect all data cables from the 5.25" component.
– Press on the surfaces ① on the two side mounting bars ② of the 5.25" component.
– Press and hold surface ① to push the 5.25" component forward out of the drive holder
④.
Workstation SIMATIC IPC
RW-545A Operating
Instructions, 08/2023, A5E52943278-AA
