9.7 Technical specifications of the motherboard
150
9.7.2 Technical specifications of the expansion card slots

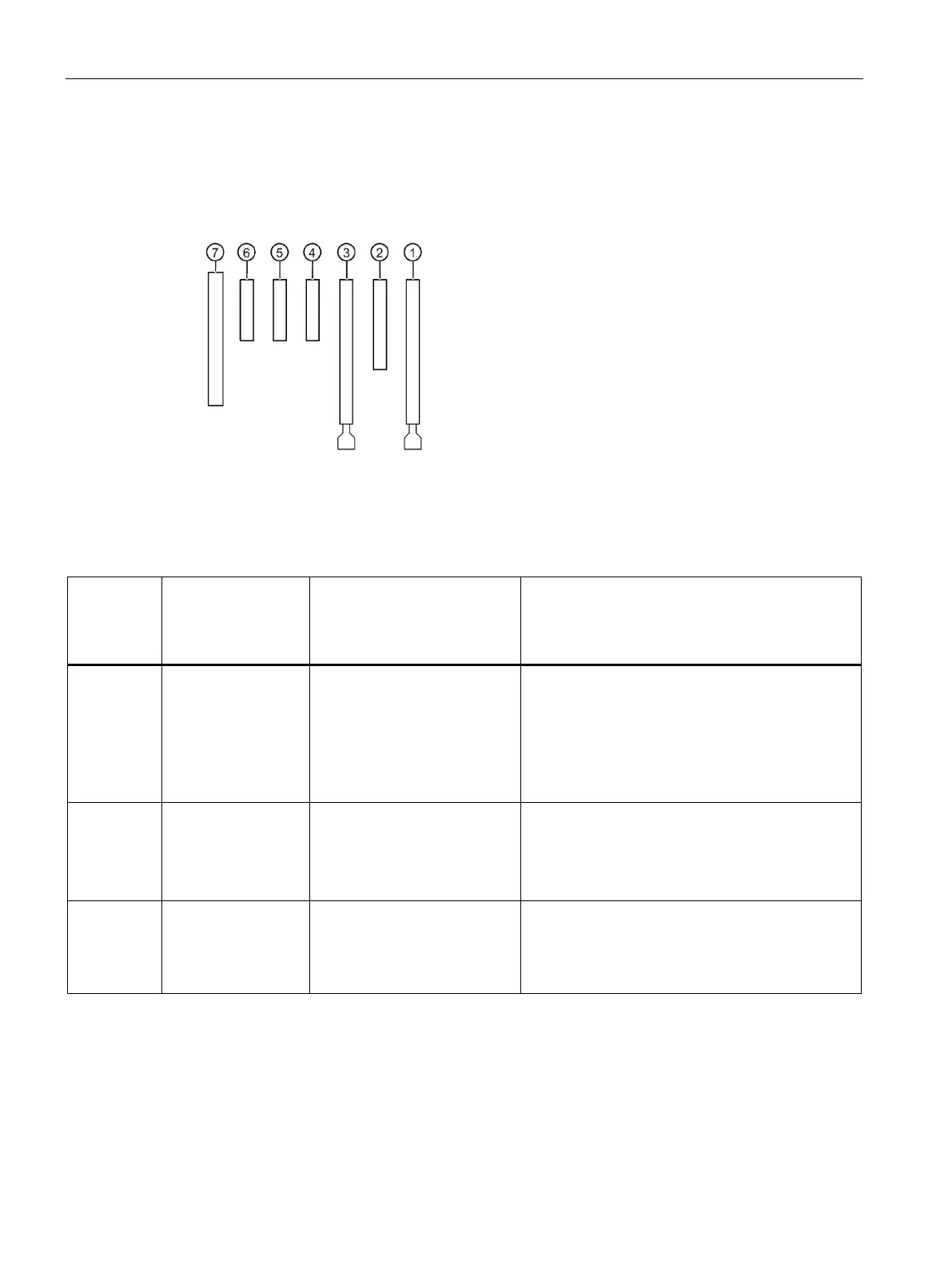

Slots for expansion cards on the motherboard
You can find detailed information about the location of the slots in the section "Layout of the
motherboard (Page 167)".
Technical specifications of the slots
Slot
Number on
the
enclosure
Designation on the
motherboard
Specification Maximum current consumption
①
PCIE4X16_1
PCIe x16
1
• Gen. 4
• Active lanes: 16
(if slot 3 is occupied:
Active lanes: 8)
• 3.3 V; 3 A
• 12
V; 5.5 A
• 3.3 V
aux; 0.4 A
Power loss of the slot, permitted: ≤ 75 W
②
PCIW3_X8_1
PCIe x8
2
• Gen. 3
• Active lanes: 4
• Open slot
• 3.3 V; 3 A
• 12 V; 2.1 A
• 3.3 V
aux; 0.4 A
Power loss per slot, permitted: ≤ 25 W
③
PCIX4X16_2
PCIe x16
1
• Gen. 4
• Active lanes: 8
• 3.3 V; 3 A
• 12 V; 5.5 A
• 3.3 V
aux; 0.4 A
Power loss of the slot, permitted: ≤ 75 W
