Siemens SIMATIC IPC RW-545A

Dimension drawings
10.3 Dimension drawing of the expansion cards
161

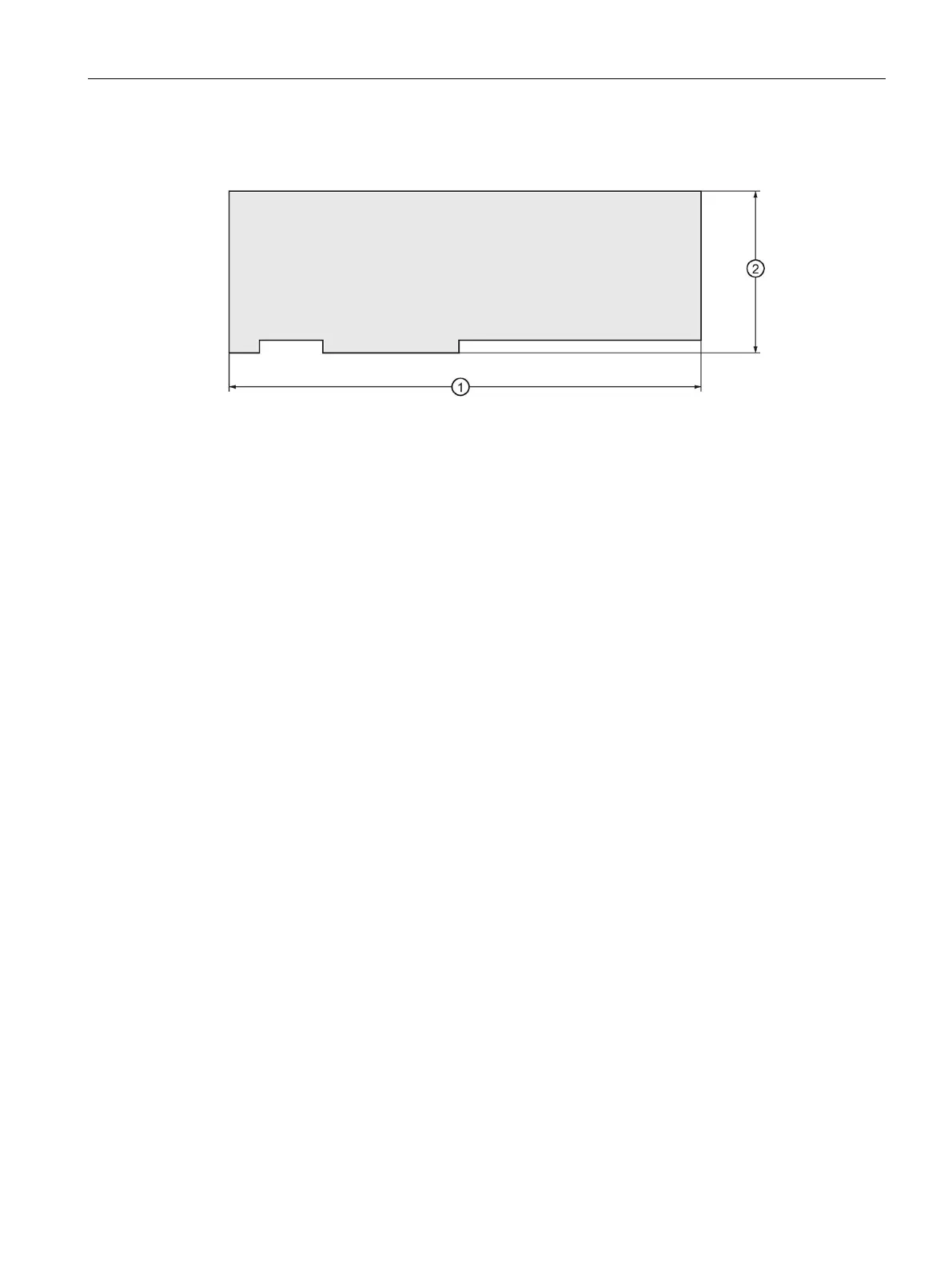

10.3 Dimension drawing of the expansion cards
①
Length of the expansion car (PCI or PCIe)
• Device without extender: up to 312 mm
• Device with extender: 339 mm
②
Height of the expansion card
PCI: 106.7 mm (free space via expansion card: 38.3 mm)
PCIe: 111.2 mm (free space via expansion card: 33.8 mm)
Workstation SIMATIC IPC RW-545A
Operating Instructions, 08/2023, A5E52943278-AA
