Siemens SIMATIC IPC RW-545A

Product description
1.4 External design of the device
18
1.4.2.2 Drive cage type B

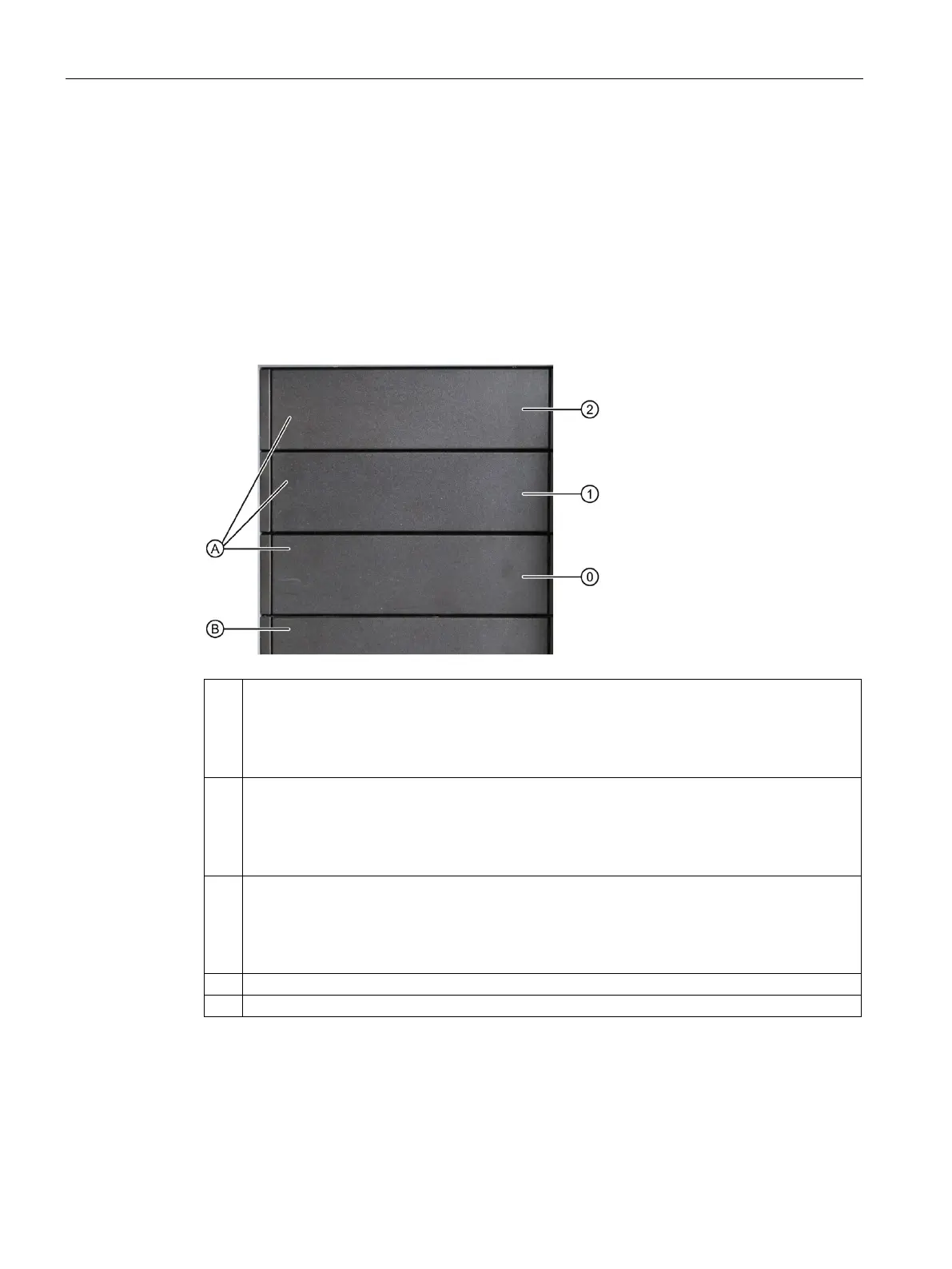

Drives and mounting locations in the drive cage type B
The drive cage type B is located behind the front door.
In drive cage type B, drives are fixed-mounted internally and provided with a drive cover on
the outside to prevent access.
The drives are particularly well protected against vibration and oscillation ("vibration-
dampened drive cage").
(0)
Mounting location 0 (5.25" tray) for:
• 2.5" drive in the assembly kit
• 3.5" drive in the assembly kit
• 5.25" drive or 5.25" component
(1)
Mounting location 1 (5.25" tray) for:
• 2.5" drive in the assembly kit
• 3.5" drive in the assembly kit
• 5.25" drive or 5.25" component
(2)
Mounting location 2 (5.25" tray) for:
• 2.5" drive in the assembly kit
• 3.5" drive in the assembly kit
• 5.25" drive or 5.25" component
(A)
Cover (if no drive is installed) or drive cover
(B)
Cover
See also
Installation options for drives with drive cage type B (Page 114)
Workstation SIMATIC IPC RW-545A Operating
Instructions, 08/2023, A5E52943278-AA
