Device maintenance and repair
8.3 Removing and installing hardware
128

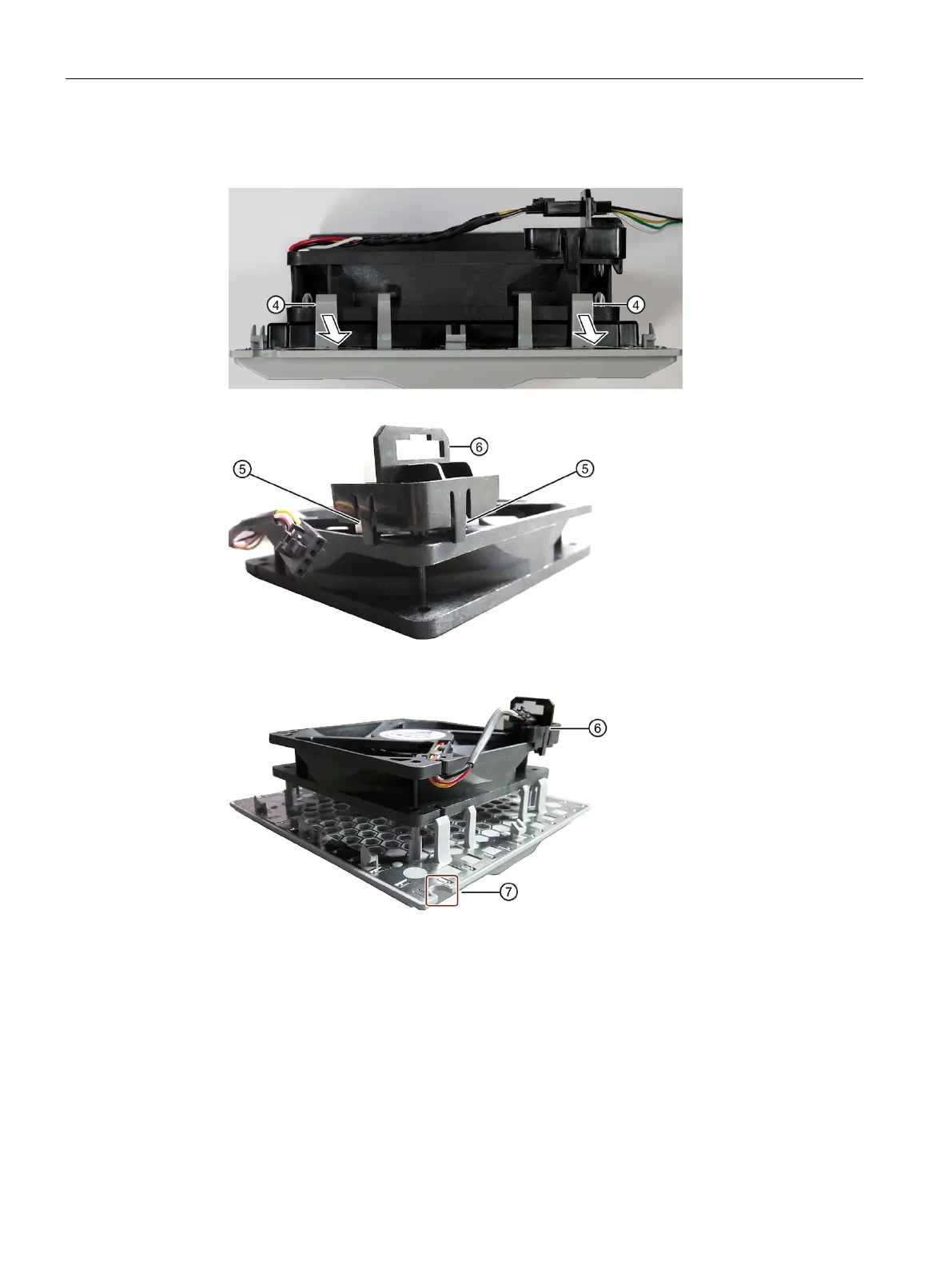

8. Loosen the locking latches ④ of the fan support one after the other at the front and rear and
remove the fan.
9. L
oosen the locking latches ⑤ of the holder for the adapter plugs ⑥ and remove the holder.
10.T
ake the new fan and place the holder for the adapter plug ⑥ on the new fan as seen in the
figure and snap the holder into place.
11.T
hen place the new fan on the fan support.
Use the highlighted positions as a guide. Notch in fan support ⑦ and holder for adapter
plug ⑥.
12.Snap the fan into place at the locking latches of the fan support ④.
13.Install the larger adapter plug in the holder for the adapter plug ⑥. Press on the side of the
clips ③ of the larger adapter plug.
14.Insert the small fan cable connector ② in the larger adapter connector again.
15.Place the fan support with the new fan on the front of the device.
See also
Maintenance intervals (Page 125)
Workstation SIMATIC IPC RW-545A Operating
Instructions, 08/2023, A5E52943278-AA
