Siemens SIMOCODE pro Function Manual

Tables, data records
3.6 EtherNet/IP data tables
SIMOCODE pro - Communication
318 Function Manual, 11/2018, A5E40508495002A/RS-AC/003
Instance 101: Output assembly SIMOCODE basic type 2

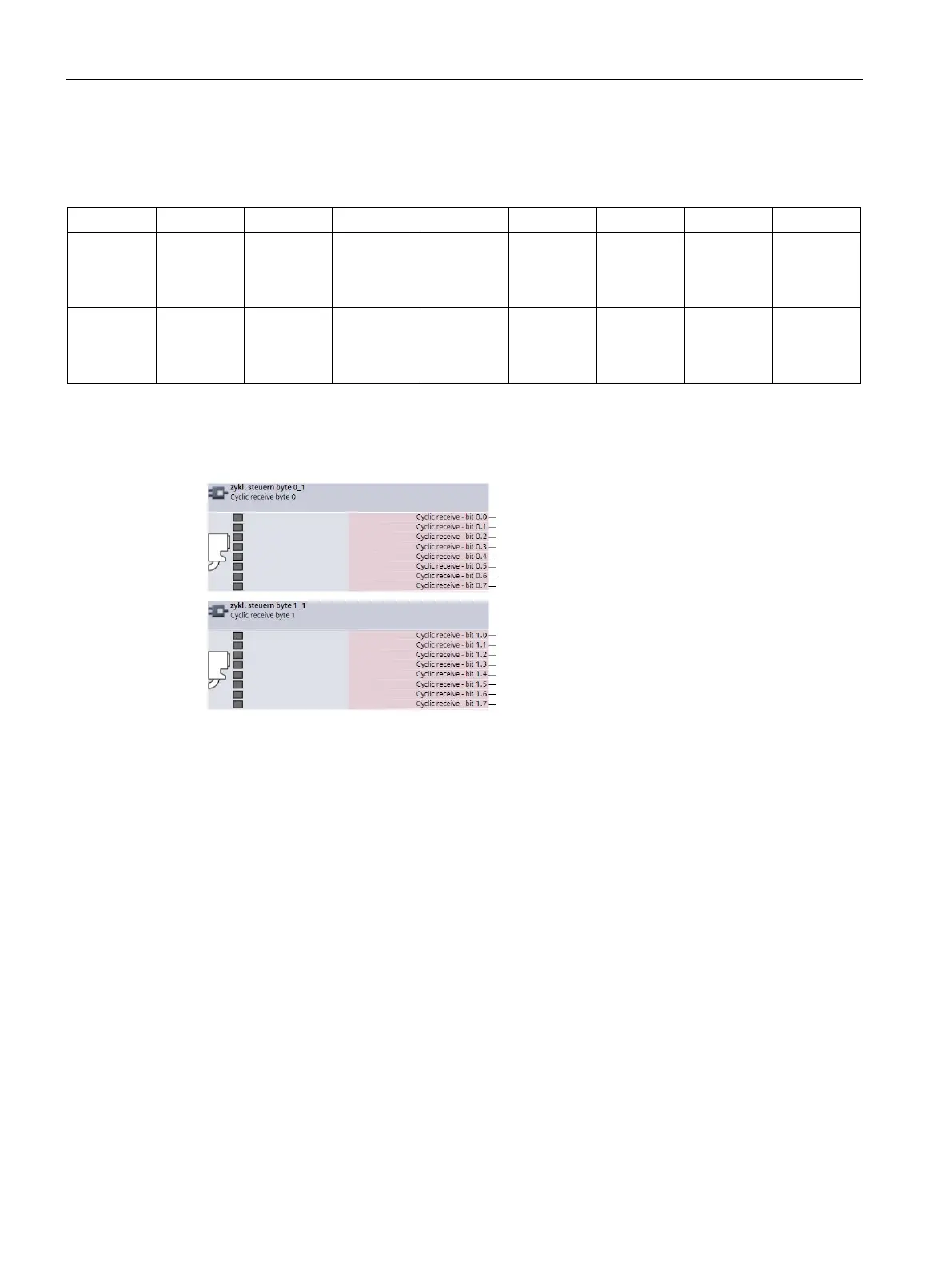

The table below describes the format of attribute 3:
Byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
0 Cycl.
receive
byte 0 -
bit 0.7
Cycl.
receive
byte 0 -
bit 0.6
Cycl.
receive
byte 0 -
bit 0.5
Cycl.
receive
byte 0 -
bit 0.4
Cycl.
receive
byte 0 -
bit 0.3
Cycl.
receive
byte 0 -
bit 0.2
Cycl.
receive
byte 0 -
bit 0.1
Cycl.
receive
byte 0 -
bit 0.0
1 Cycl.
receive
byte 1 -
bit 1.7
Cycl.
receive
byte 1 -
bit 1.6
Cycl.
receive
byte 1 -
bit 1.5
Cycl.
receive
byte 1 -
bit 1.4
Cycl.
receive
byte 1 -
bit 1.3
Cycl.
receive
byte 1 -
bit 1.2
Cycl.
receive
byte 1 -
bit 1.1
Cycl.
receive
byte 1 -
bit 1.0
The values passed to SIMOCODE pro via instance 101 can be processed further in the
SIMOCODE ES (TIA Portal) software.
Corresponding function blocks in the SIMOCODE ES (TIA Portal) charts:
Default settings of cyclic receive and send data: See Assignment of cyclic receive and send
data for predefined control functions (Page 128).
