Siemens SIMOCODE pro Function Manual

Tables, data records
3.6 EtherNet/IP data tables
SIMOCODE pro - Communication
326 Function Manual, 11/2018, A5E40508495002A/RS-AC/003

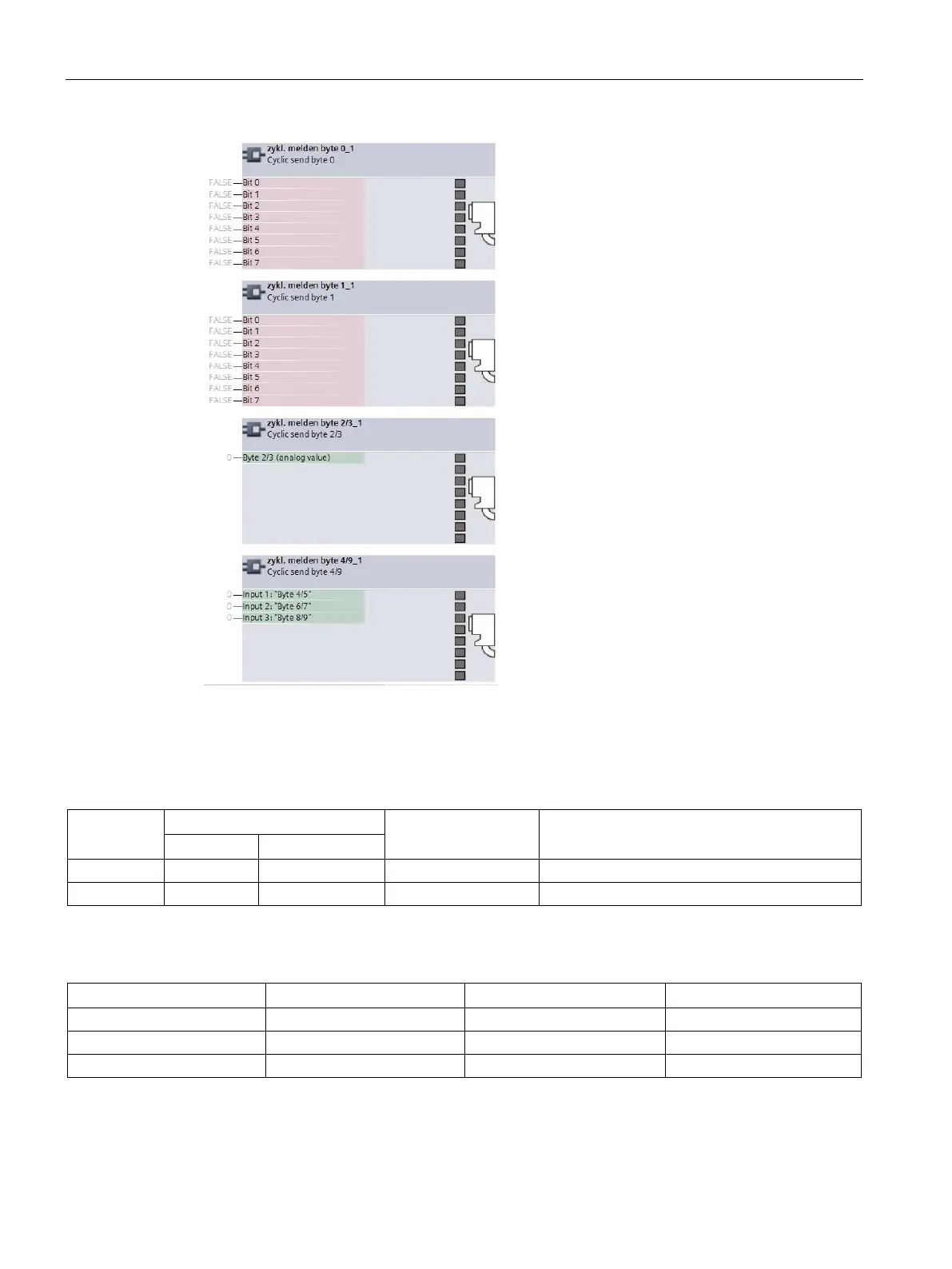

Default settings of cyclic receive and send data: See Assignment of cyclic receive and send
data for predefined control functions (Page 128).
General services for the Assembly object
Service code
Available service
Service designation
Description
Class
Instance
0x0E
Yes
Yes
Get_Attribute_Single
Supplies contents of one attribute
0x10
No
Yes
Set_Attribute_Single
Changes an attribute value
Class attributes for the Assembly object
Attribute ID
Access
Description
Data type
1
Get
Revision
UINT
2
Get
Max Instance
UINT
3
Get
Num of Instances
UINT

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
