Communication
2.2 PROFINET communication
SIMOCODE pro - Communication
62 Function Manual, 11/2018, A5E40508495002A/RS-AC/003
There are two methods by which you can connect SIMOCODE pro V PN (GP) as a
non-redundant IO device:
● Configure a SIMOCODE pro V PN (GP) as a redundant IO device as described above
and then navigate to the tab card labeled "Redundancy" in the module properties dialog.
By activating the checkbox, you can assign the IO device to a single IO system and thus
to a single CPU.

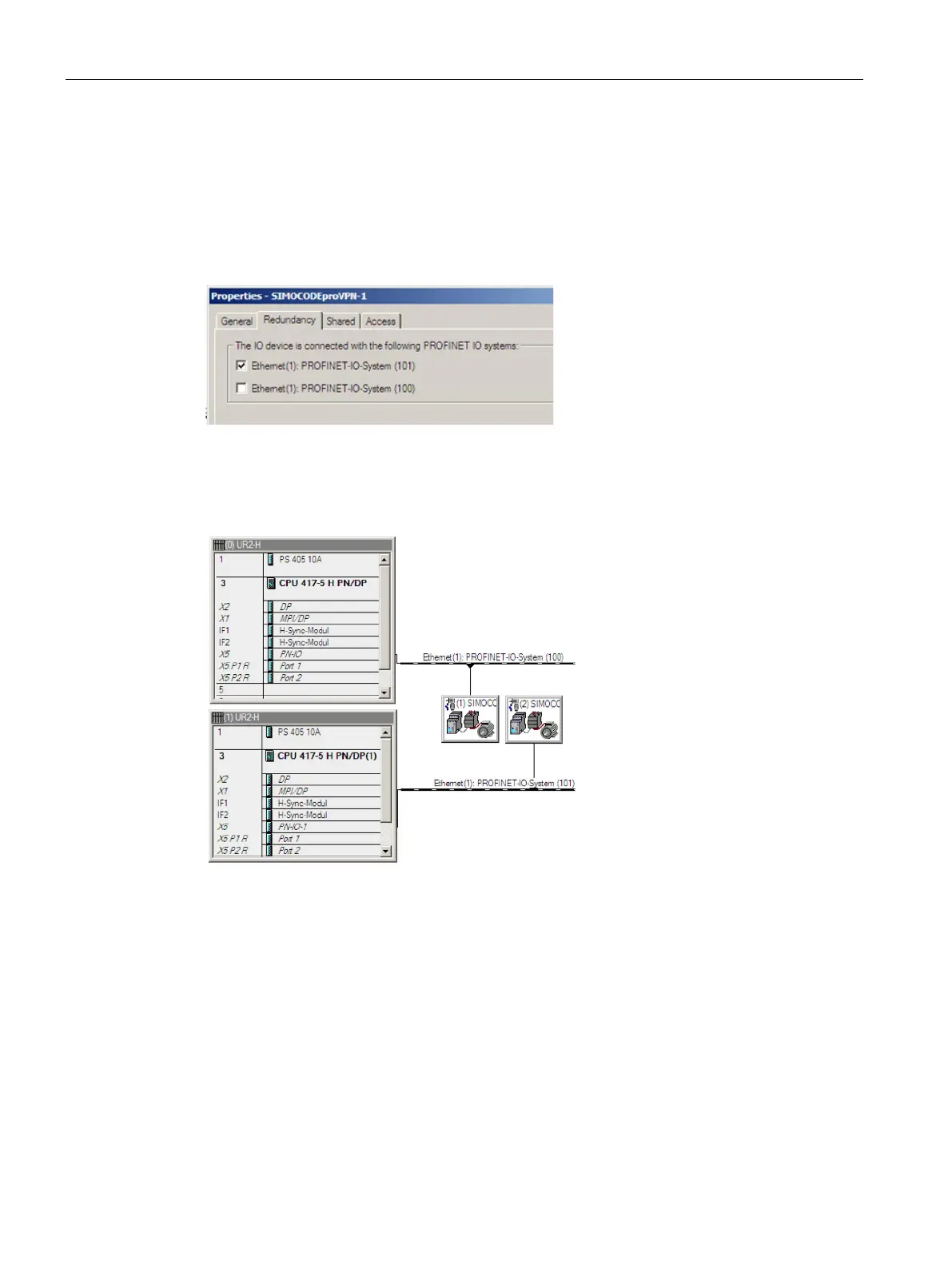

Figure 2-20 "Redundancy" tab card in module properties screen
Configure the SIMOCODE pro V PN (GP) specifically as a non-redundant IO at the relevant
IO system.
Figure 2-21 SIMOCODE pro V PN (GP) connected as a non-redundant device
