3. Click (Start measuring function) to start the measuring functions.
The
axis is moved during the measurement. For this reason, a safety message that allows
the process to be aborted is displayed.
4. The traced signals are represented on the "Time diagram" tab.

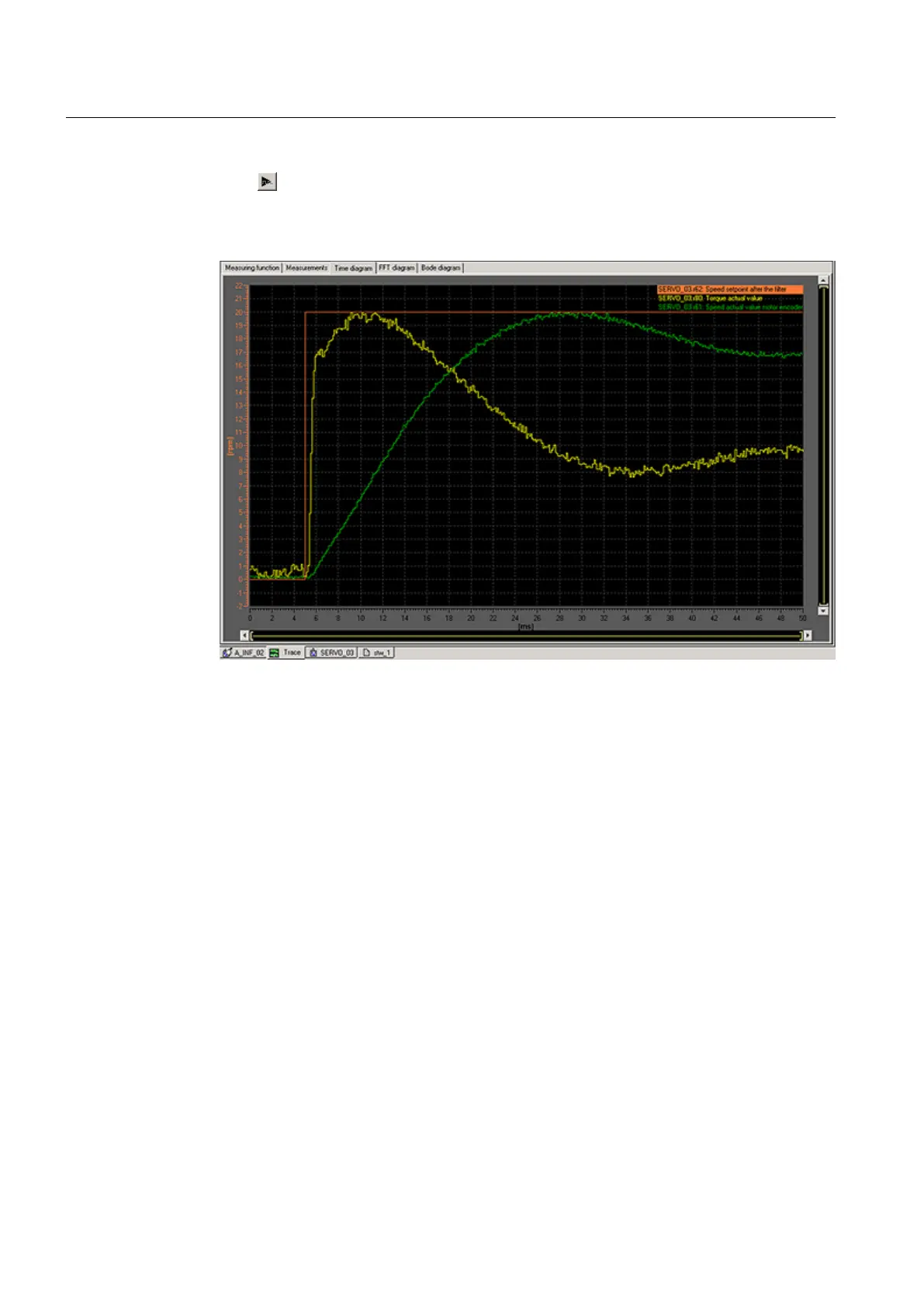

Figure 5-38 Timing diagram before parameterization
Commissioning (software)
5.14 Optimizing the drive and controller
SIMOTION D410
148 Commissioning Manual, 04/2014
