3. In the "Power Unit" dialog, use the order number to select your power unit from the list.

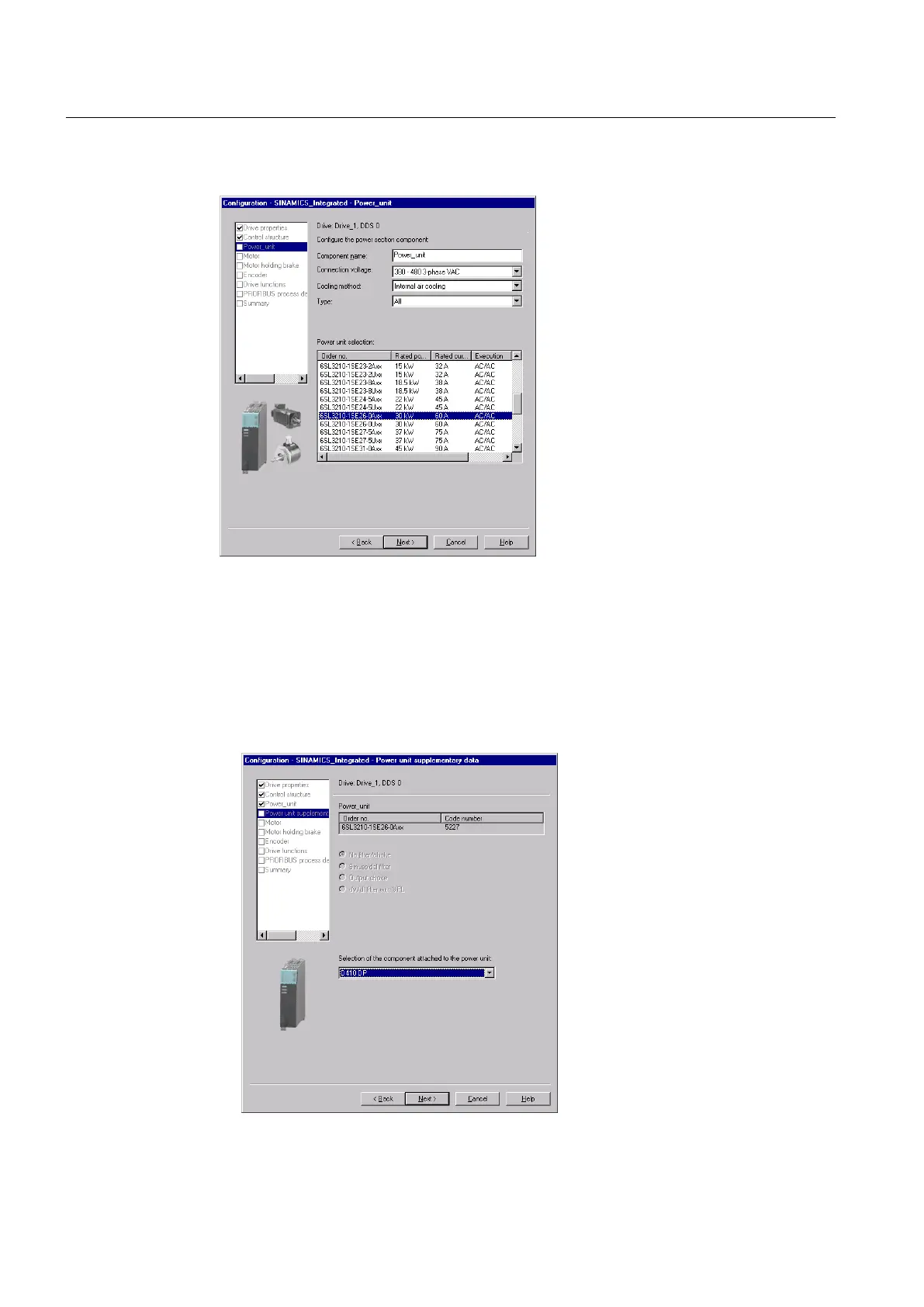

Figure 5-3 Selecting a power unit
4. In
the "Power unit supplementary data", select the component added to the power unit. The
selection of the component depends on the construction type:
– D410 DP with D410 PN: The SIMOTION D410 snapped directly onto the PM340 power
module
– CUA31 or CUA32: The CUA3x snapped directly onto the PM340. The D410 is mounted
individually on a mounting plate. The D410 is connected to the CUA3x using a DRIVE-
CLiQ cable.
Figure 5-4 Selecting the mounting type
Commissioning (software)
5.2 Configuring the system in offline mode
SIMOTION D410
84 Commissioning Manual, 04/2014
