Table 5-1 I/O address ranges for the AddOn technology
Block Functions Length (word) I/O address range
DCC_SCCOMMON Common 12 2000-2023
DCC_SCHOIST Hoist 6 2024-2035
DCC_SCTROLLEY Trolley 6 2036-2047
DCC_SCINTPO Interpolation points 6 2048-2059
DCC_SCTLS2 (STS only) TLS (STS only) 16 2060-2091
DCC_SCTARGETS Targets 6 2092-2103
DCC_SCOBSTACLES Obstacle regions Block1 16 2104-2135
Obstacle regions Block2 16 2136-2167
- Additional data (AddData_1) 16 2168-2199
- Additional data (AddData_2) 16 2200-2231
- Additional data (AddData_3) 6 2232-2243
Enter these addresses in the "I-Device" tab under "Transfer area".

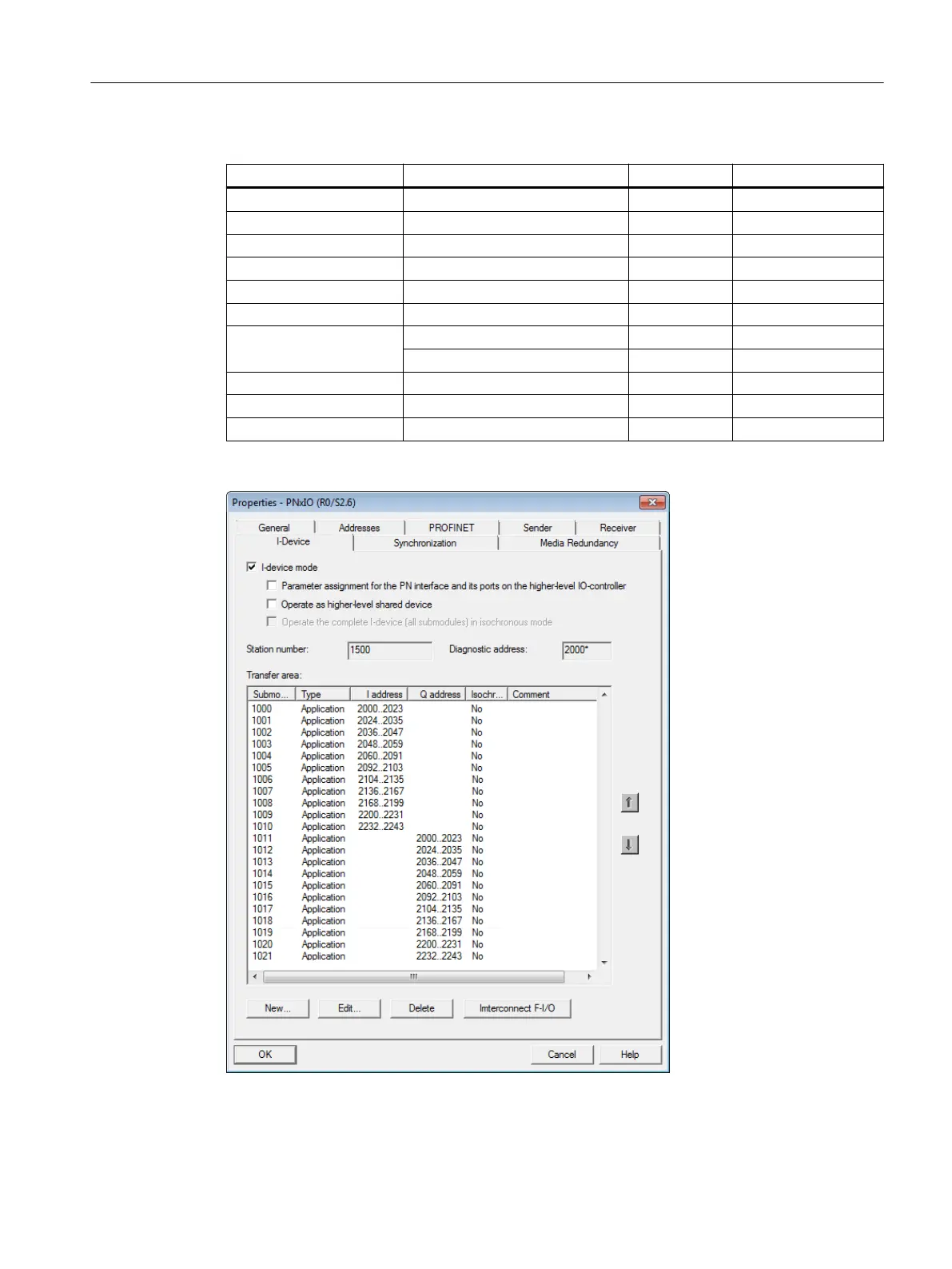

Figure 5-7 I/O peripherals definition in the SIMOTION D435-2 hardware configuration
Configuration
5.5 PROFINET configuration
SC integrated STS, GSU
Operating Instructions, 07/2019, A5E48271265B AA 115
