The send and receive direction must be configured for every function. For example, the trolley
with start address 2036 is configured once as an output and once as an input from the master's
viewpoint.

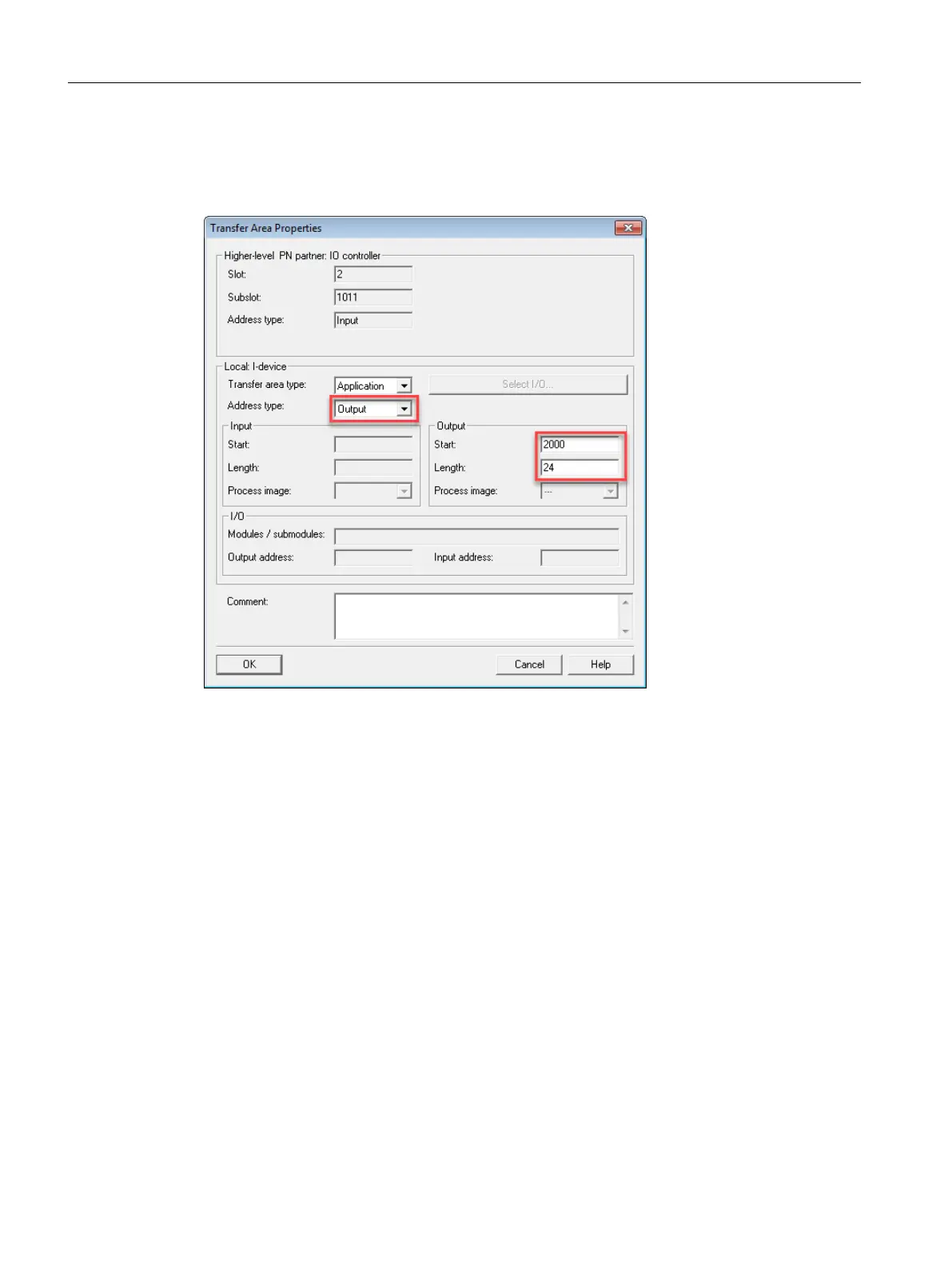

Figure 5-8 Properties of the output words
Configuration
5.5 PROFINET configuration
SC integrated STS, GSU
116 Operating Instructions, 07/2019, A5E48271265B AA
