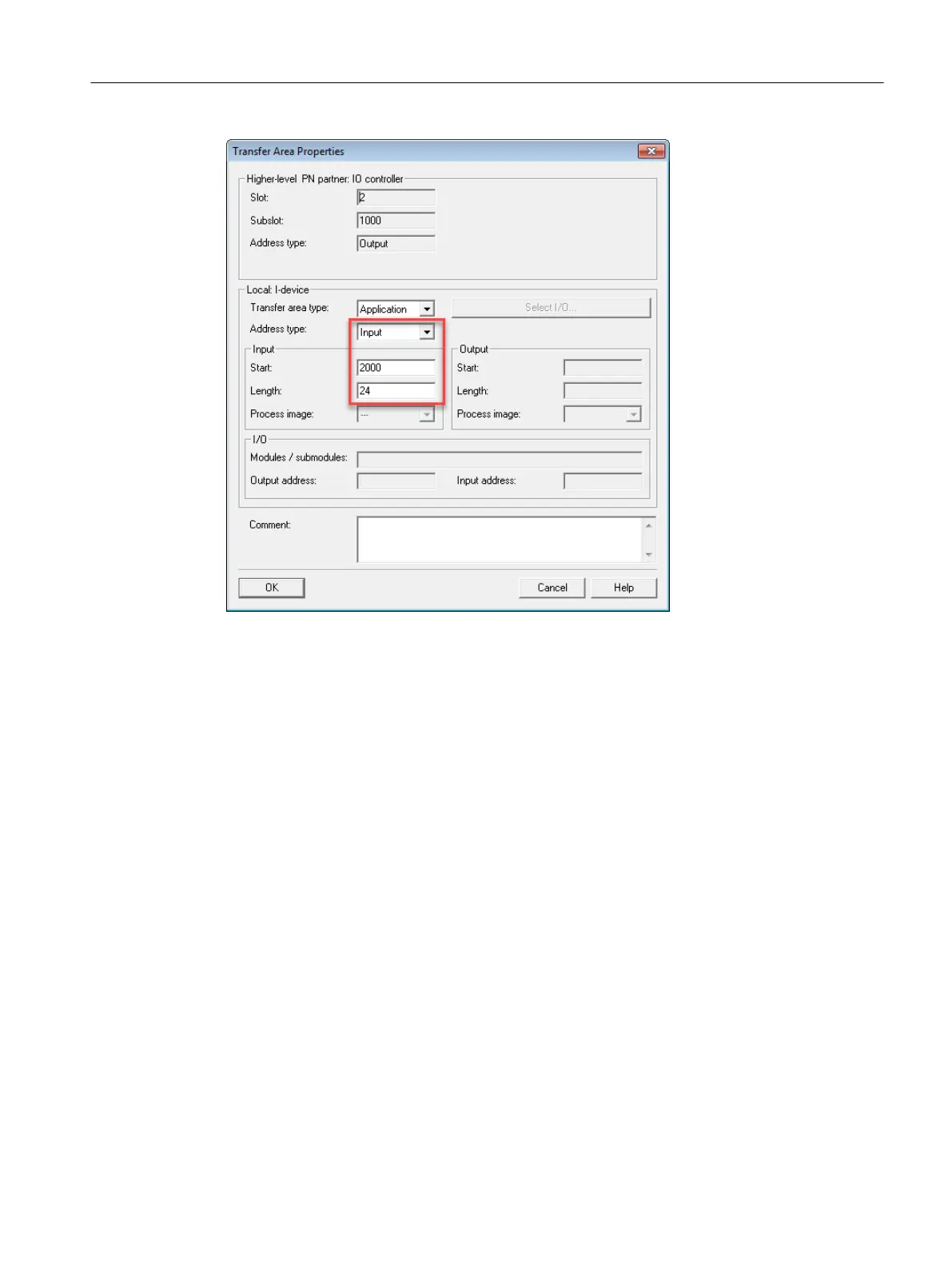

Figure 5-9 Properties of the input words
Further addresses can also be added to extend the address range. Create a new GSD file in
this case. Please observe the note about the S7 hardware configuration below.
To create a new GSD file, select → "Options" → "Create GSD file for I-Device..." from the menu
bar after you have finished the configuration. Then press "Create" and "Install".
Configuration
5.5 PROFINET configuration
SC integrated STS, GSU
Operating Instructions, 07/2019, A5E48271265B AA 117
