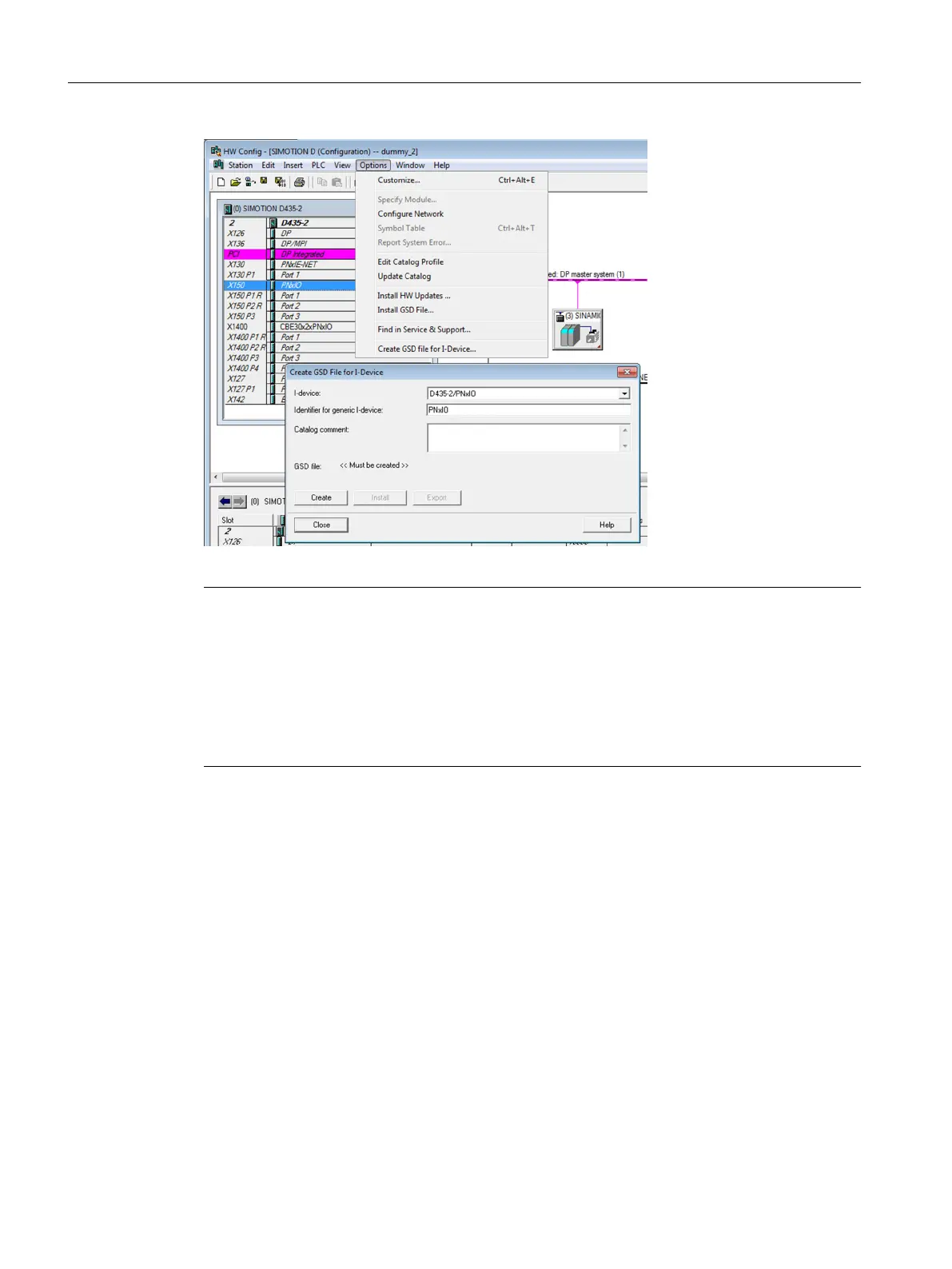

Figure 5-10 Creating a GSD file
Note
If you have extended the address range by adding more addresses, you can no longer use the
PNxIO station from the supplied application project, as this will no longer match the address
range of the SIMOTION. In this case, create a new GSD file (in the HW Config of the
SIMOTION) and use the new PNxIO station from the hardware catalog (in the HW Config of the
SIMATIC S7).
After the GSD file has been created and installed, it can be found under Hardware catalog →
"PROFINET IO" → "Preconfigured Stations" → "D435" → "PNxIO".
Configuration
5.5 PROFINET configuration
SC integrated STS, GSU
118 Operating Instructions, 07/2019, A5E48271265B AA
