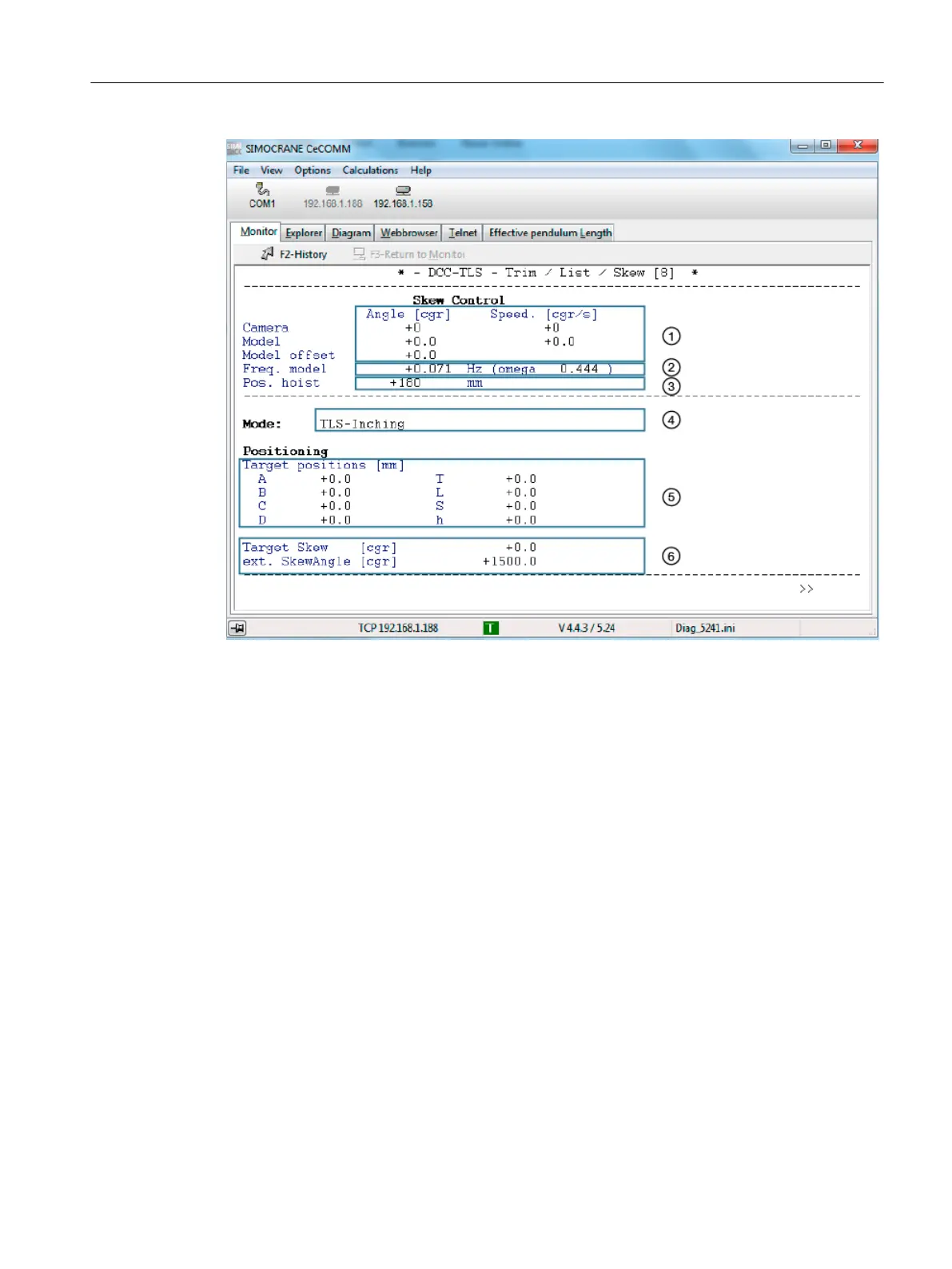

Figure 8-17 Monitor 8
The marked areas have the following signals:
① psi_cam (psi_kam)
psi_model (psi_modell)
psi_ofs_model (psi_ofs_modell)
psip_cam (psip_kam)
psip_model (psip_modell)
② Frequency skew oscillation (normalized angular frequency skew oscillation)
③ Position hoist
④ Mode TLS motion
⑤ s_target_abcd [mm]
s_target_TLSh [mm]
⑥ s_target_S
converted to centigrade: s_target_S · P280
Monitor 9
Monitor 9 shows control bits and status bits for TLS (see also the Tables in Chapters TLS
(Page 90) and TLS (Page 104)). This display screen can be used to verify the correct control.
The CeCOMM trace function is used for detailed analysis of signals.
SIMOCRANE CeCOMM commissioning and diagnostic program
8.5 Monitor (tab)
SC integrated STS, GSU
Operating Instructions, 07/2019, A5E48271265B AA 281
