View – F7
Pressing the "F7-View" button opens the "Display measurement series" window (next
screenshot). The "General" and "Bit signals" tabs are used to select the displayed parameters
and to change the following properties:
● Color
● Name
● Line type and line thickness
A selected parameter can be placed on the left-hand axis or on the right-hand axis. The
direction arrow keys (up or down) can be used to change the order of the display.

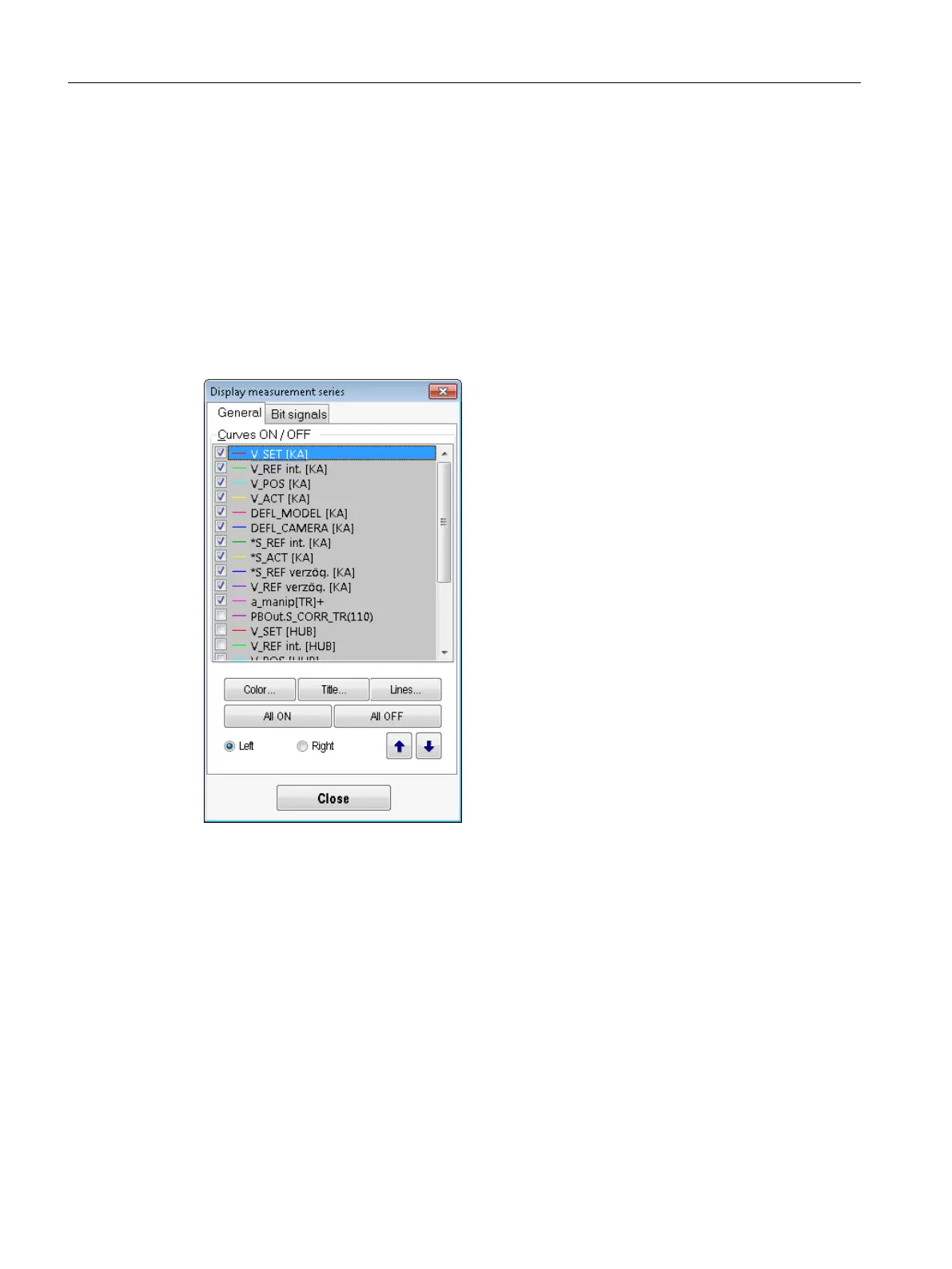

Figure 8-37 Diagram function, F7-View, General tab
SIMOCRANE CeCOMM commissioning and diagnostic program
8.7 Diagram - trace function
SC integrated STS, GSU
302 Operating Instructions, 07/2019, A5E48271265B AA
