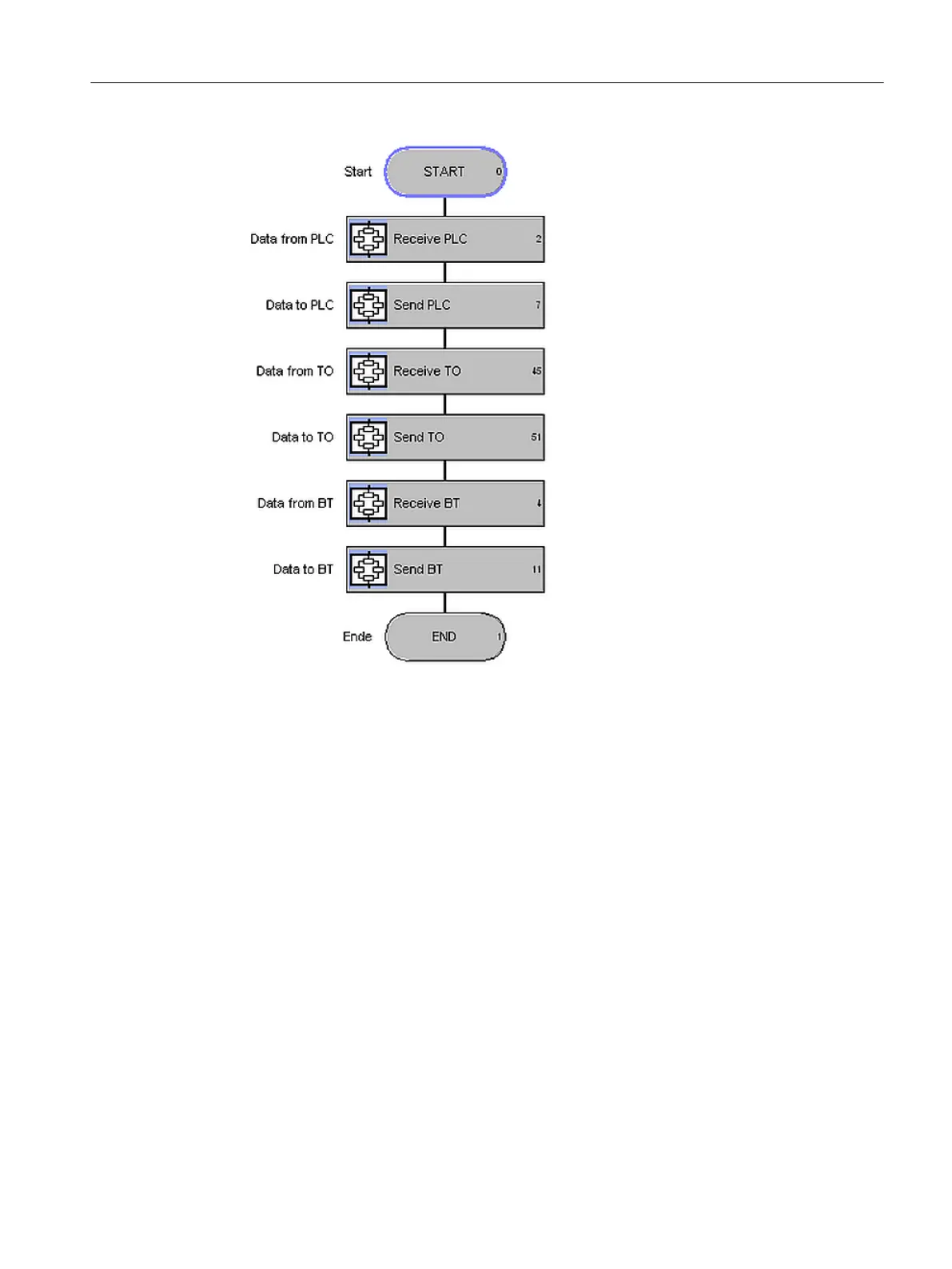

Figure 3-2 "AddOn" MCC source file; "AddOnMCC" MCC chart
Processing in the "CameraMCC" MCC chart
The following figure shows the contents of the "CameraMCC" MCC chart.
The "Camera" module is included in this. If UDP is selected, the module is processed, i.e. when
the IP address is not zero.
The data is stored in the DCC_SCCAMERA DCC block.
Overview of the software
3.2 AddOn software structure
SC integrated STS, GSU
Operating Instructions, 07/2019, A5E48271265B AA 31
