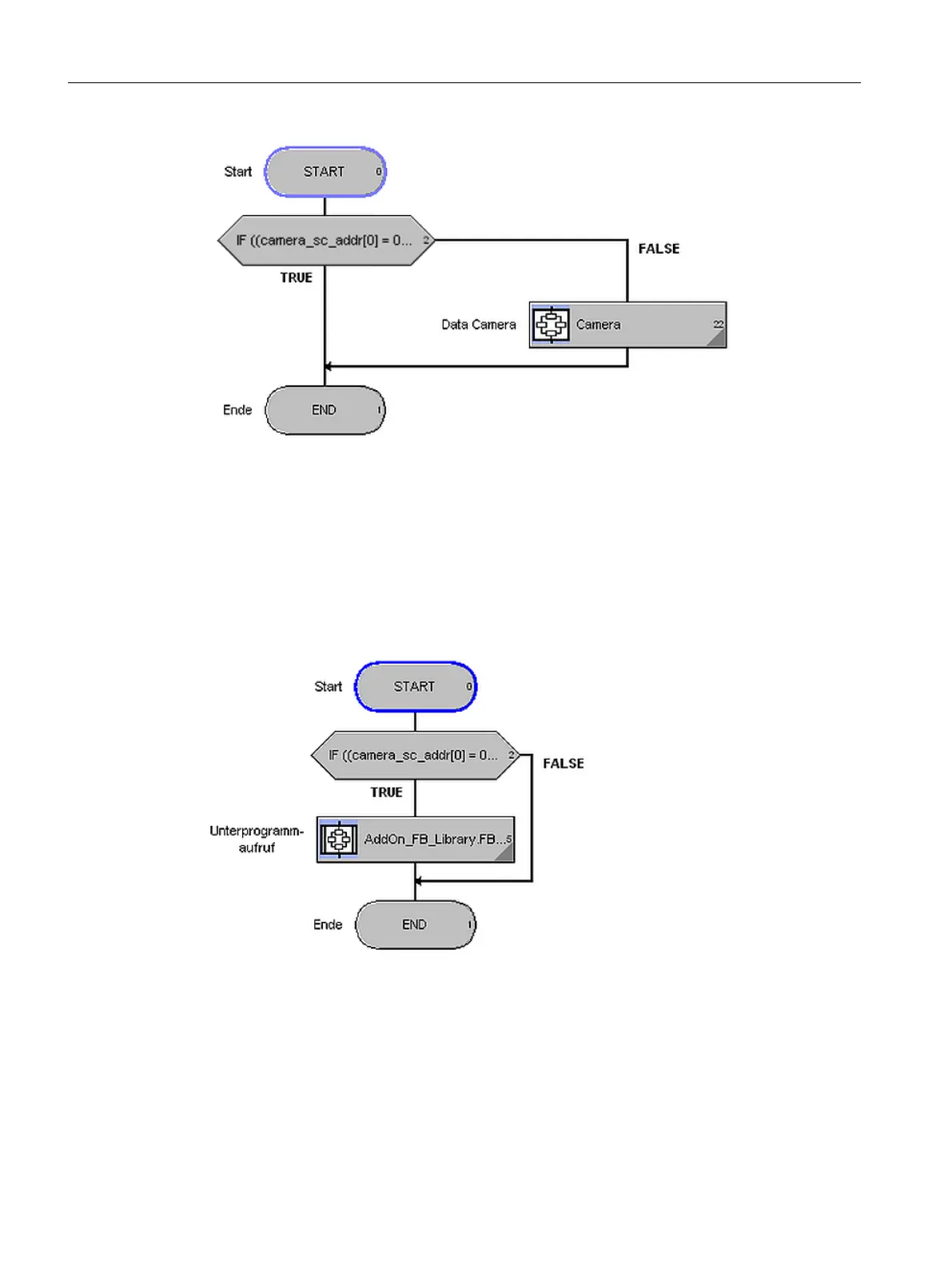

Figure 3-3 "CameraMCC" MCC chart
Processing in the "Cam_MV440_MCC" MCC chart
The following figure shows the contents of the "Cam_MV440_MCC" MCC chart.
The subprogram call is contained in this. If PROFINET is selected, the subprogram call is
processed, i.e. when the IP address is zero.
The data is stored in the DCC_SCCAMERA DCC block.
Figure 3-4 "Cam_MV440_MCC" MCC chart
Overview of the software
3.2 AddOn software structure
