1.3 Accessibility options
1.3.1 Calculator
The calculator function can be activated from any operating area using the key combination
<SHIFT +=>.
To calculate terms, the four basic arithmetic operations can be used, as well as the functions
“sine”, “cosine”, “squaring” and “square root”. A bracket function is provided to calculate
nested terms. The bracket depth is unlimited.
If the input field is already occupied by a value, the function will accept this value into the
input line of the calculator.
<Input> starts the calculation. The result is displayed on the calculator.
Selecting the <Accept> softkey enters the result in the input field at the current cursor posi-
tion of the part program editor and closes the calculator automatically.
Note
If an input field is in the editing mode, it is possible to restore the original status using the
“Toggle” key.

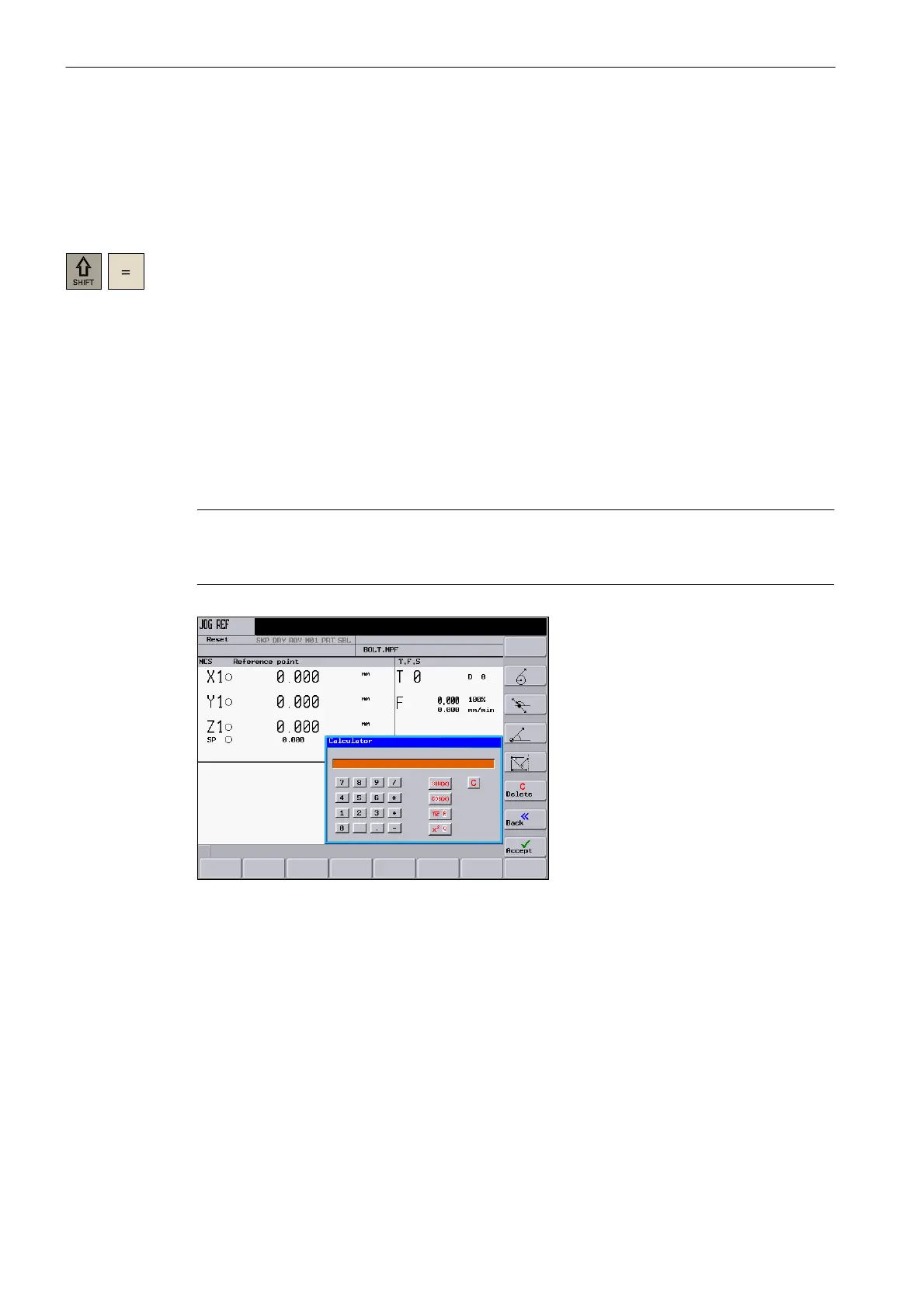

Fig. 1-4 Calculator
Characters permitted for input
+, – Fundamental operations of arithmetic
*, /
S Sine function
The X value (in degrees) in front of the input cursor is replaced by the sin(X) value.
O Cosine function
The X value (in degrees) in front of the input cursor is replaced by the cos(X) value.
