2-31
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0
Turning On and Reference Point Approach
Note
When you turn on the SINUMERIK 802D and the machine, please also observe the
Machine Documentation, since turning on and reference point approach are
machine-dependent functions.
This documentation assumes an 802D standard machine control panel (MCP). Should you
use a different MCP, the operation may be other than described herein.
Operating sequence
First, turn on the power supply of CNC and machine. After the control system has booted,
you are in the “Position” operating area, in the Jog mode.
The Reference point approach window is active.

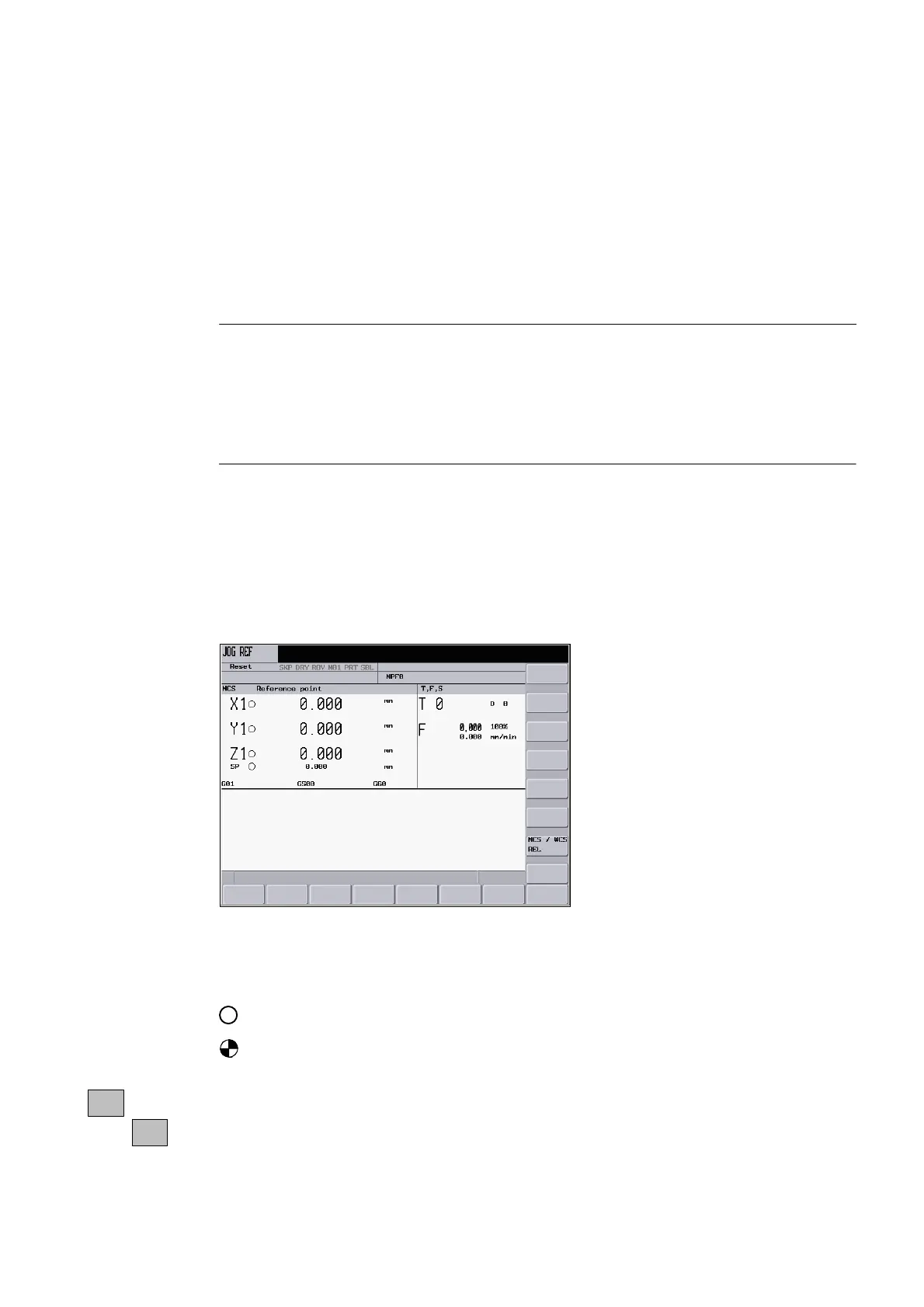

Fig. 2-1 The “Jog-Ref” start screen
The “Reference point approach” window (Fig. 2-1) displays whether or not the axes have
been referenced (approached to their reference points).
Axis must be referenced
Axis has reached its reference point
Press a direction key.
2
...
+X
–Z
