Part Programming
6.4 Data transfer via the RS232 interface
6-79
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0
6.4 Data transfer via the RS232 interface
Functionality
The RS232 interface of the control system can be used to output data (e.g. part programs)
to an external data backup device or to read in data from there. The RS232 interface and
your data backup device must be matched with each other.
Operating sequence
You have selected the Program Manager operating area and you are in the overview of the
NC programs already created.
Select the data to be transmitted using either the cursor or the <Select all> softkey.
Thereafter, copy the data to the clipboard.
Select the <RS232> softkey and select the desired transfer mode.

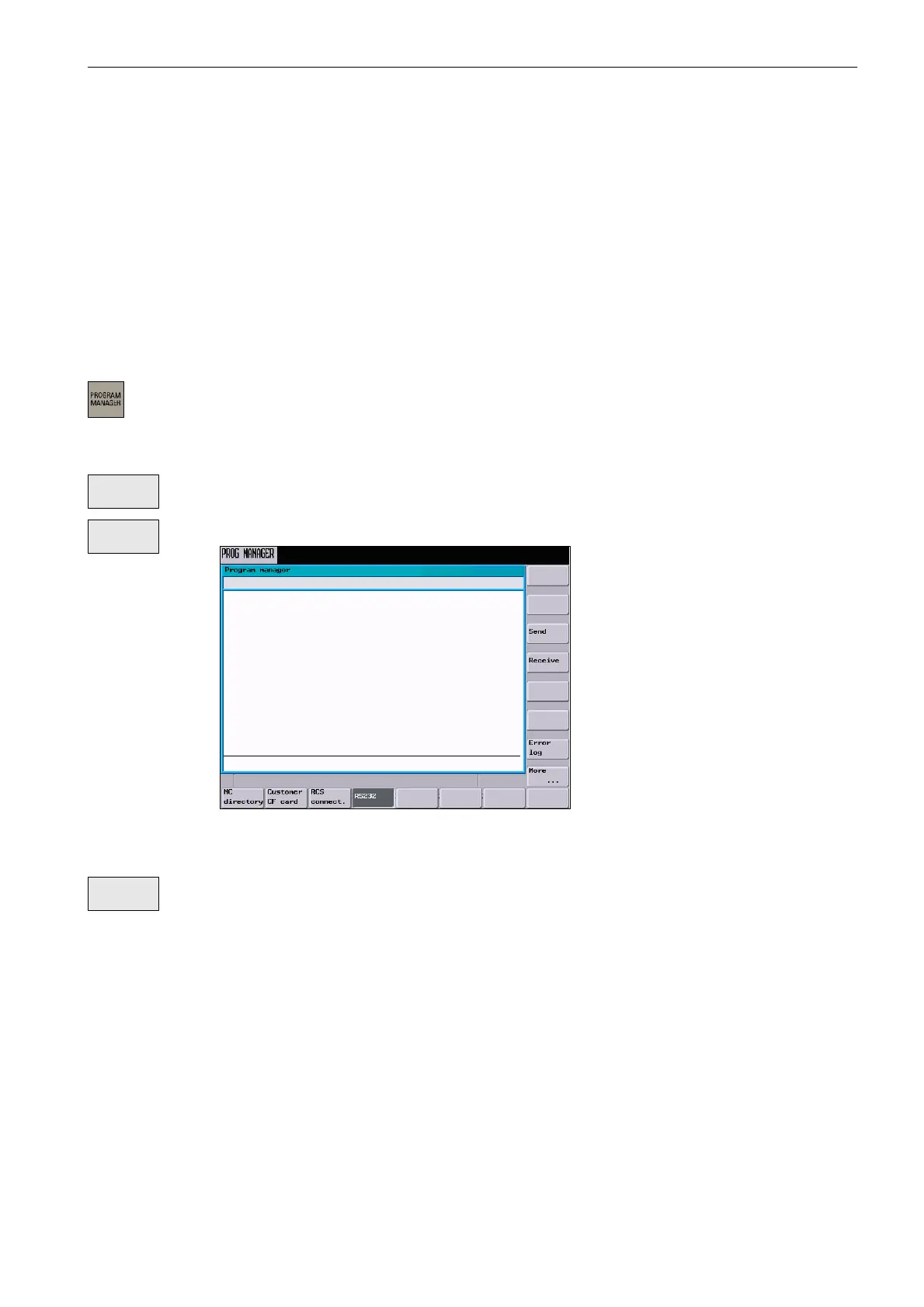

Fig. 6-17 Reading out a program
Use <Send> to start the data transfer. All data copied to the clipboard will be transmitted.
Copy
RS232
Send
