Manually Controlled Mode
4.1 JOG mode – “Position” operating area
4-50
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0
4.1 JOG mode – “Position” operating area
Operating sequences
Use the <JOG> key on the machine control panel to select the JOG mode.
+X
–Y
...
To traverse the axes, press the appropriate key of the X or Y axis.
The axes will traverse continuously at the velocity stored in the setting data until the key is
released. If the value of the setting data is zero, the value stored in the machine data is
used.
If necessary set the velocity using the override switch.
If you press additionally the <Rapid traverse override> key, the selected axis will be tra-
versed at rapid traverse speed until both keys are released.
In the <Jog> mode, you can traverse the axes by adjustable increments using the same
operating sequence. The set number of increments is visualized in the display area. To de-
select, press <JOG> again.
The JOG start screen displays the position, feedrate and spindle values, as well as the cur-
rent tool.

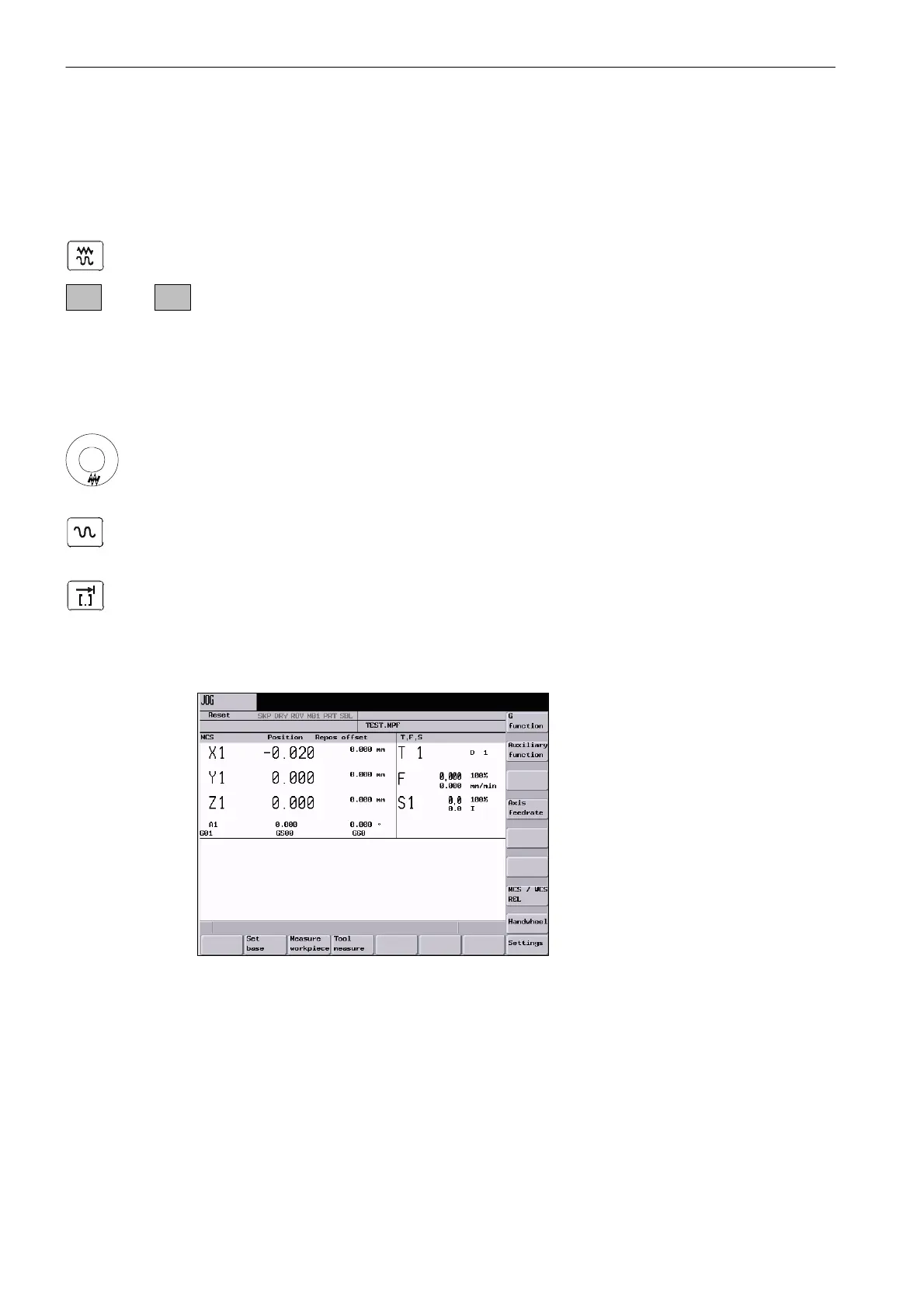

Fig. 4-2 JOG main screen
%
