1.5 Network operation
Note
The network function is only available for SINUMERIK 802D sl pro.
Thanks to the integrated network adapter, the control system is network-capable. The follo-
wing connections are possible:
S Peer-to-Peer: Direct connection between control system and PC using a cross-over cable
S Twisted Pair: Incorporation of the control system into an existing local network using a
patch cable.
Screened network operation with encrypted data transfer is possible using an 802D specific
transmission protocol. This protocol is used, e.g. for transmitting and executing part pro-
grams in conjunction with the RCS tool.
1.5.1 Configuring the network connection
Requirement
The control system is connected to the PC or the local network via the X5 interface.
Entering network parameters
In the “System” operating area, select the <Service display> and <Service control> soft-
keys.

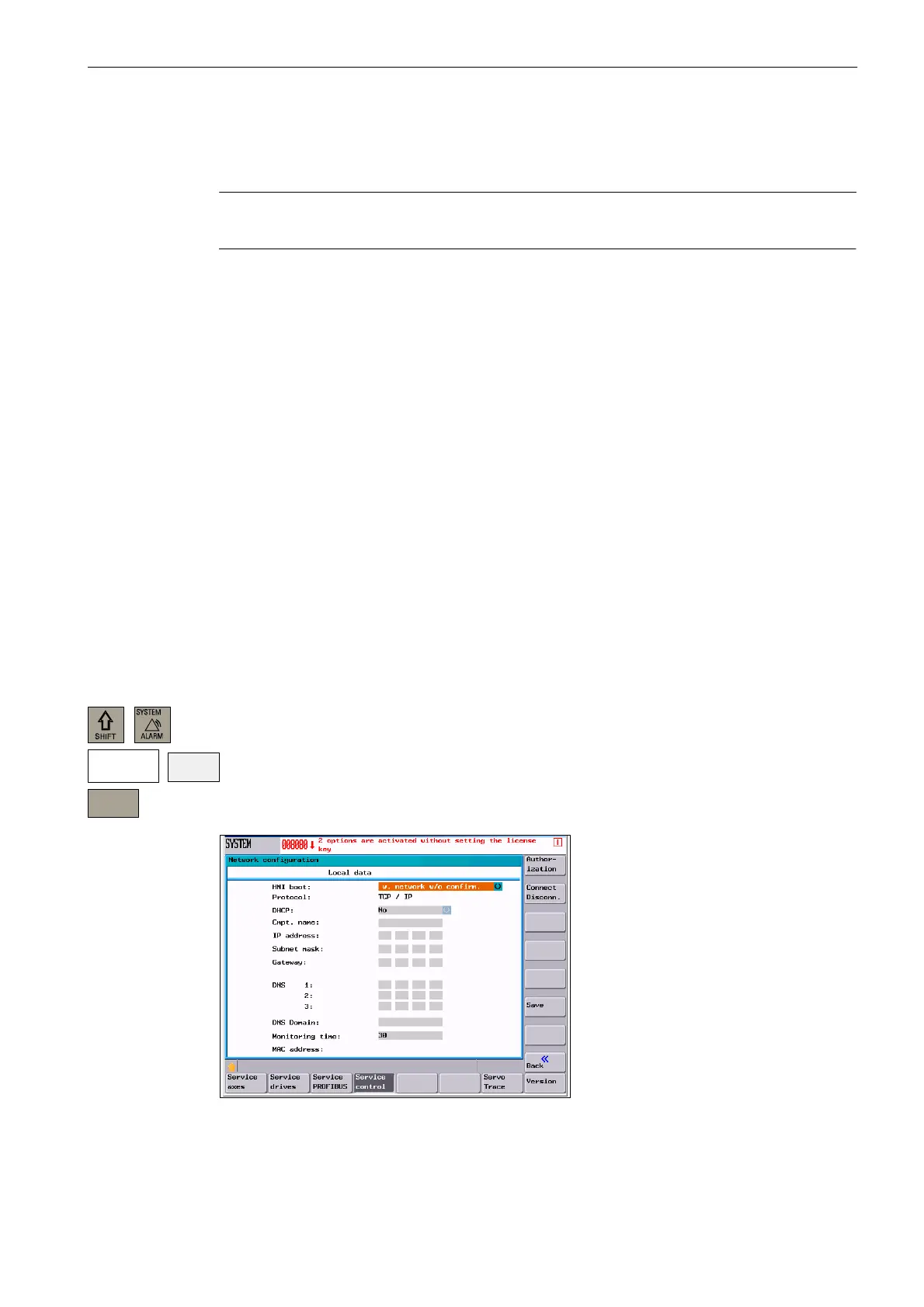

Select the <Service network> softkey to obtain access to the interactive screenform to in-
put the network parameters.
Fig. 1-8
Service
display
Service
control
Service
network
