Setup
3.5 Clamp protection
3-47
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0
The protection zones are assigned as follows:
Protection zone number Area
1 Clamp 1
2 Clamp 2
3 Clamp 3
4 Clamp holder
3.5.3 Protection zone for four clamps
The parameters refer to a defined reference point (workpiece zero).
Table 3-6 Parameters for four clamps
Parameter
Meaning
x X position of the clamp
y Y position of the clamp
w Clamp width
a Clearance between clamps 1 and 2
b Clearance between clamps 2 and 3
c Clearance between clamps 3 and 4
e Clamp safety clearance
f Clamp holder safety clearance

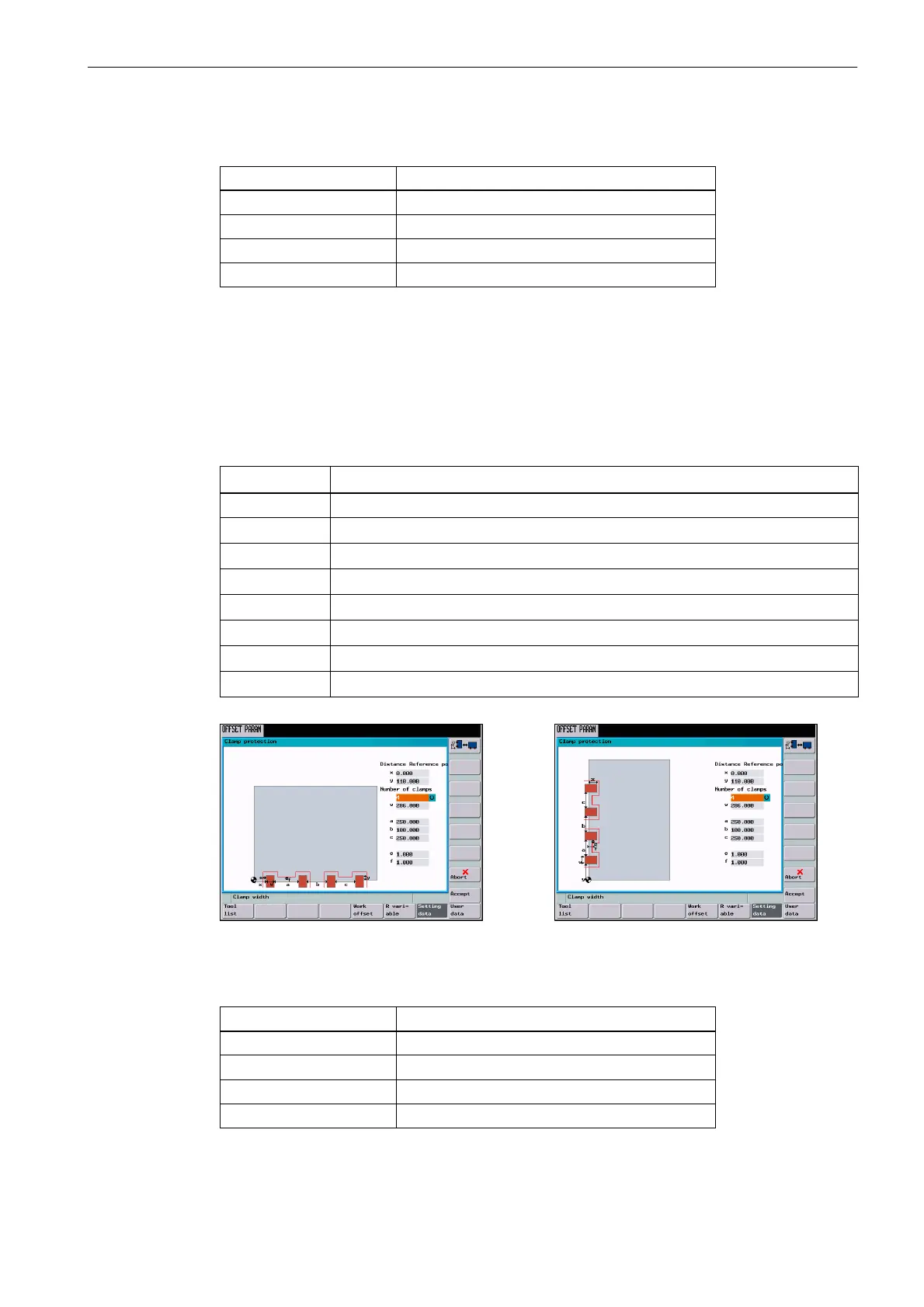

Fig. 3-16 Interactive screenform for four clamps
The protection zones are assigned as follows:
Protection zone number Area
1 Clamp 1
2 Clamp 2
3 Clamp holder 1
4 Clamp 3
