Siemens SINUMERIK 802D sl Operation And Programming Manual

Setup
3.5 Clamp protection
3-46
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0

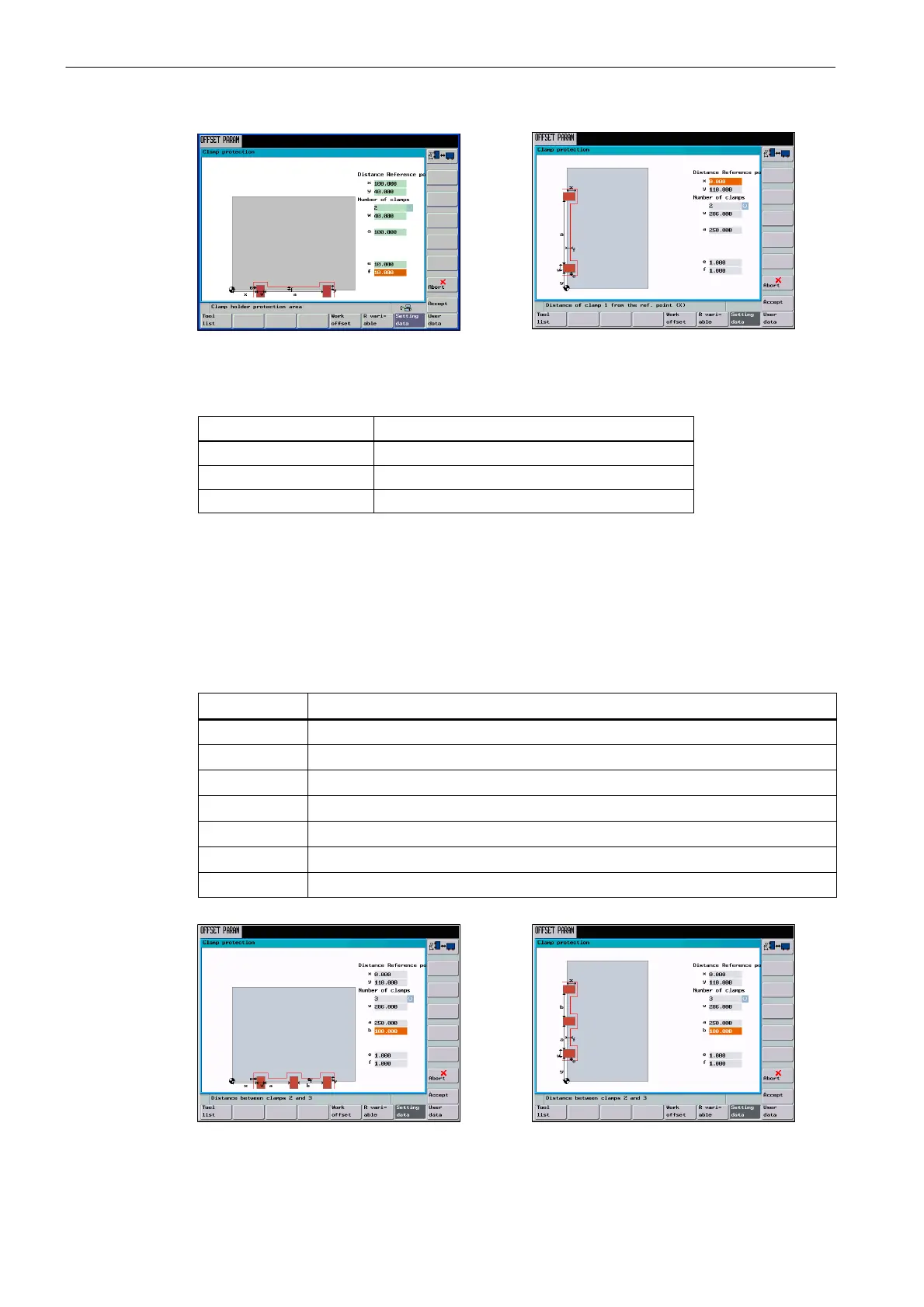

Fig. 3-14 Interactive screenform for two clamps
The protection zones are assigned as follows:
Protection zone number Area
1 Clamp 1
2 Clamp 2
3 Clamp holder
3.5.2 Protection zones for three clamps
The parameters refer to a defined reference point (workpiece zero).
Table 3-5 Parameters for three clamps
Parameter
Meaning
x X position of the clamp
y Y position of the clamp
w Clamp width
a Clearance between clamps 1 and 2
b Clearance between clamps 2 and 3
e Clamp safety clearance
f Clamp holder safety clearance
Fig. 3-15 Interactive screenform for three clamps
