Siemens SINUMERIK 802D sl Operation And Programming Manual

Part Programming
6.3 Simulation
6-72
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0
Use this function to display all setting data for the control system in the form of a list. The
geometrical form and the orientation of the tool highlighted by the cursor are displayed.
Newly set-up tools are automatically assigned a round form.

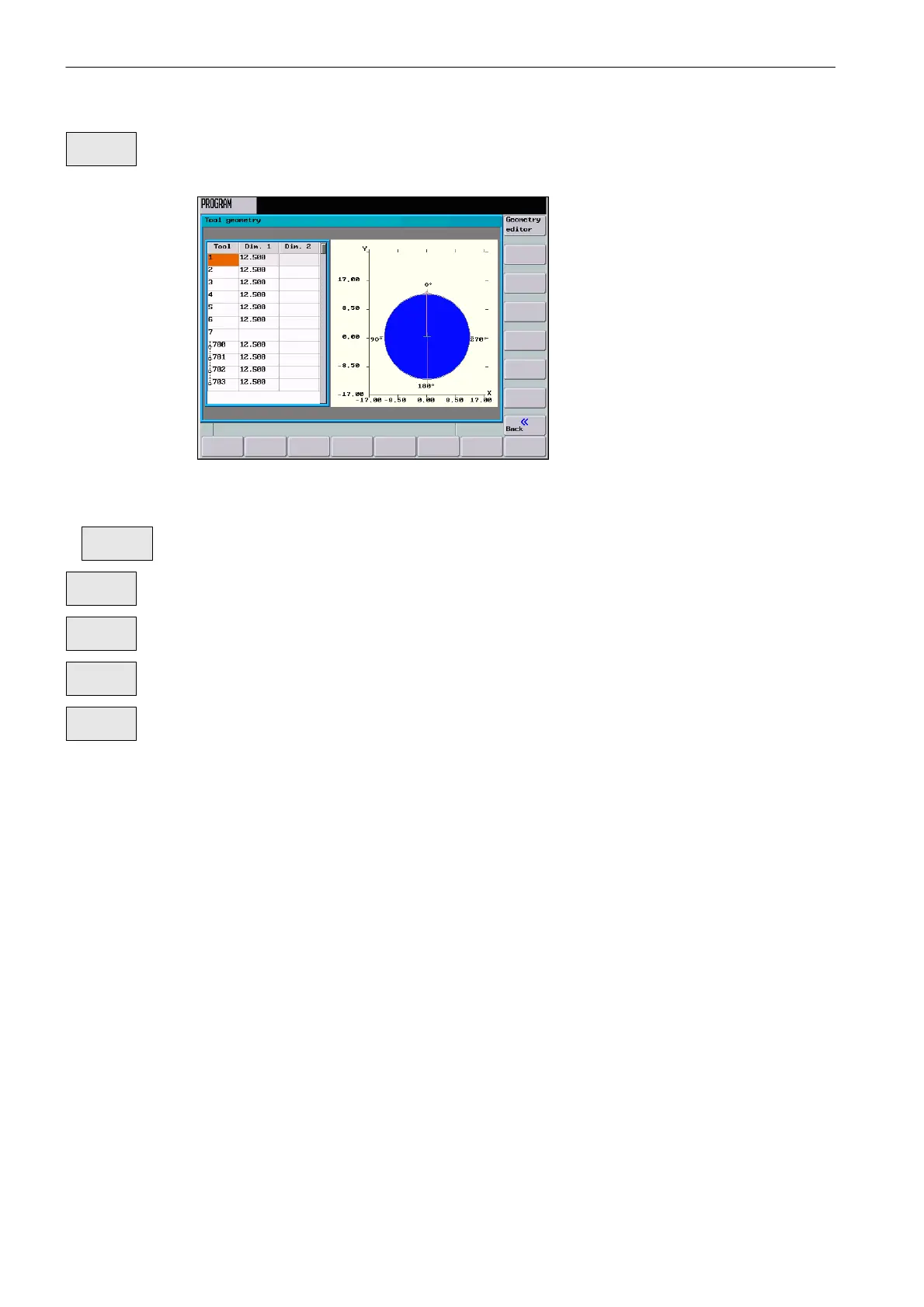

Fig. 6-6 Display of the tool geometry
The geometry editor is opened.
Use this softkey to zoom out the displayed section.
Use this softkey to zoom in the displayed section.
Use this softkey to delete the visible image.
Use this softkey to change the cursor increment.
Tool
geometry
Geometry
editor
Zoom +
Zoom –
Clear
screen
Cursor
coarse/fine
