10.03
3.11 Start-up functions
3-80
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
20.000
-60.000
180.000
-180.000
Ampl.
[dB]
Phase
[degrees]
0.100 200.000log [Hz]
0.100 200.000log [Hz]

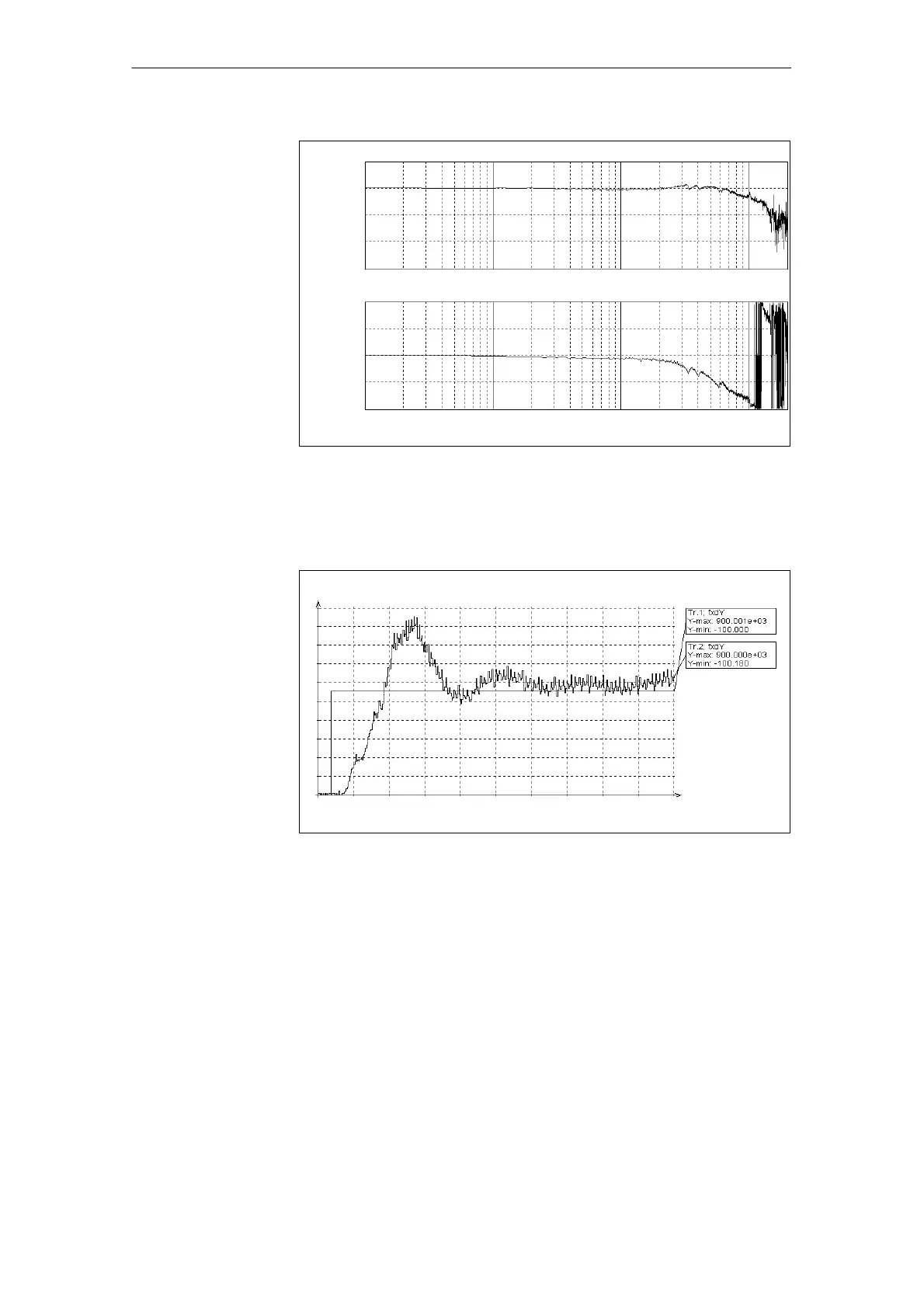

Fig. 3-30 Oscillogram showing reference frequency response of velocity control loop
Amplitude: 20 mm/min.
Offset: 100 mm/min.
t [ms]
0.000 50.000
Fig. 3-31 Timing of setpoint step change in velocity control loop
Step change: 0 → 100 mm/min without closed-loop force control, real friction
conditions
Trace 1: Velocity setpoint
Trace 2: Actual velocity value
3 Startup
02.99

Siemens Sinumerik 840D Series Specifications

General

Axes	Up to 31 axes
Power Supply	24 V DC
Control Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
PLC	Integrated PLC (programmable logic controller)
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Max. Number of Channels	Up to 10 channels
