3.11 Start-up functions
3-87
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
Table 3-12 Signal (operating mode) for position setpoint
Trigger Signal type
Position setpoint in position controller cycle, position con-
trol loop closed, velocity control loop closed
Square-wave
Table 3-13 Signal (operating mode) for position setpoint parameter settings
Parameters Physical unit
Signal type: Square-wave
Amplitude (linear axis) mm | inch
Period ms
Pulse width ms
Offset (linear axis) mm/min | inch/min
Limitation (linear axis) mm | inch
Note

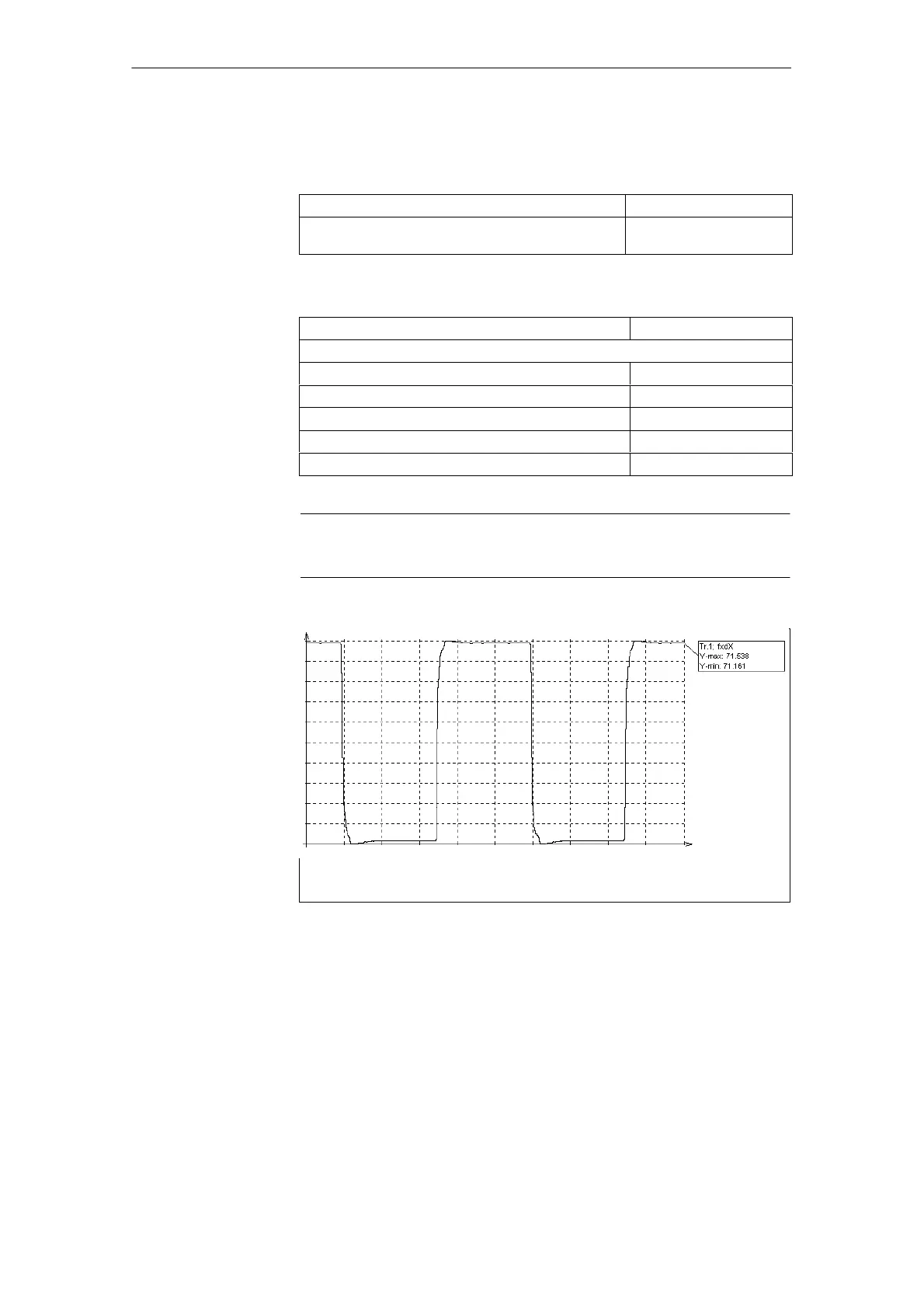

The following diagram was created using a servo trace.
t [ms]
0.000 2.000e+03
Fig. 3-40 Servo trace of actual position with square-wave signal type to position setpoint
Amplitude: 100 mm
Position setpoint
3 Startup
02.99
