Siemens SIPROTEC 7SJ62 Instruction Manual

Configuration
5-337SJ62 Manual
C53000-G1140-C121-1
Within the Run Sequence menu, select (GLW, and then 3UHGHFHVVRUIRU,Q
VWDOODWLRQ, to ensure that the function modules selected from the library will be im-
plemented into the desired task level (Figure 5-32).

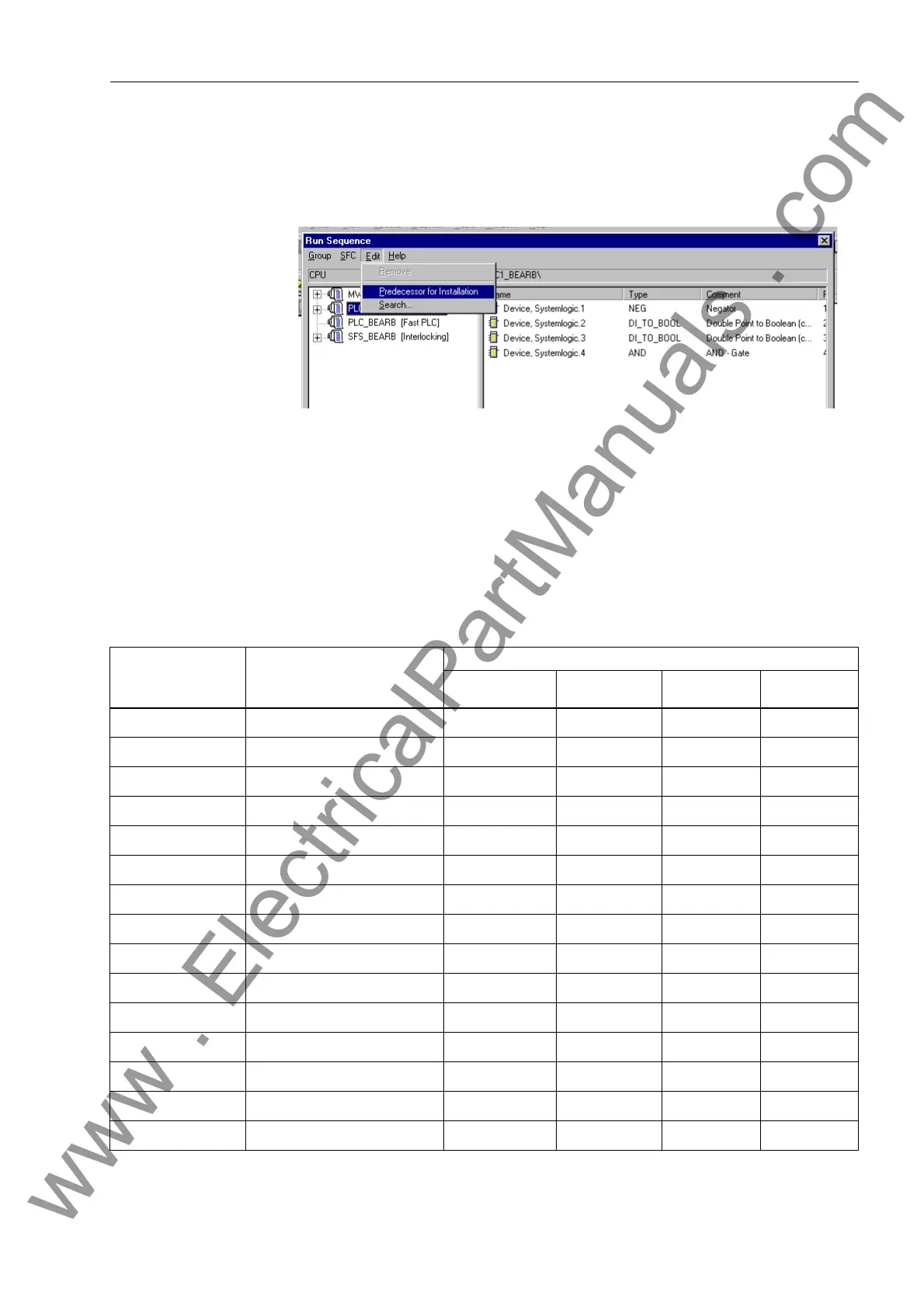

Figure 5-32 Assignment of Function Modules to the Selected Task Level
The proper assignment is important for several reasons. For example, if interlocking
logic were to be set up in the measured values (Meter processing) run-time sequence
level, indications would constantly be created by the cyclical processing, filling the
buffer unnecessarily. On the other hand, the interlocking condition at the moment of a
control operation may not be processed at the right time, since meter processing is
done only every 600 ms.
Table 5-5 Selection Guide for Function Modules and Task Levels
Function Modules Description
Task Level
MW_BEARB
Meter processing
PLC1_BEARB
Slow PLC
PLC_BEARB
Fast PLC
SFS_BEARB
Interlocking
ABSVALUE Magnitude calculation X –––
AND AND-Gate – X X X
BOOL_TO_CO Boolean to control (conversion) – X X –
BOOL_TO_DI Boolean to Double Point – X X X
BUILD_DI Create Double Point annunciat. – X X X
CMD_INF Test – – – X
CONNECT Connection – X X X
D_FF D-Flipflop – X X X
DI_TO_BOOL Double Point to Boolean – X X X
LIVE_ZERO Live-zero, non linear Curve X – – –
LOWER_SETPOINT Lower limit X – – –
NAND NAND-Gate – X X X
NEG Negator – X X X
NOR NOR-Gate – X X X
OR OR-Gate – X X X
